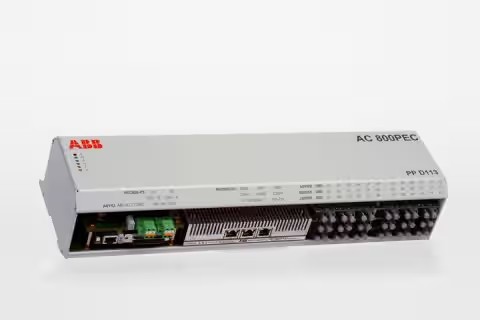

Technical Parameters of ABB AC 800PEC / PP D113 Process Control Module

The ABB AC 800PEC / PP D113 Process Control Module (3BHE013692R0001) is a high-performance controller designed for demanding industrial automation applications, combining advanced processing capabilities with robust I/O integration. Below are its key technical parameters:

Processor and Performance

• CPU Type: High-performance RISC processor with 64-bit IEEE Floating-Point Unit (FPU), optimized for real-time control.
• Clock Speed: Up to 600 MHz, enabling fast execution of complex control algorithms.
• Processing Cycle Time: As low as 1 ms, ensuring high-speed response for critical applications.
• Memory:
  • 64 MB ECC RAM for reliable data storage and fault tolerance.
  • 16 MB Flash Memory for program and configuration storage.

Communication Interfaces

• Ethernet Ports: Two 10/100BASE-TX Ethernet ports for high-speed communication with upper-level systems (e.g., SCADA, HMI).
• AnyIO Interfaces: Supports up to 36 bidirectional fiber-optic links for connecting to I/O modules, ensuring noise immunity and long-distance transmission.
• Fieldbus Support: Compatible with Anybus-S modules for ProfiBUS, CANopen, Modbus/TCP, and other industrial protocols.

I/O Capabilities

• Modular Design: Supports a wide range of I/O modules (digital, analog, temperature, etc.) via optical Modulebus for flexible system configuration.
• Maximum I/O Points: Scalable to thousands of I/O points, depending on application requirements.
• High-Speed I/O: Supports high-frequency analog and digital signals for precise control.

Environmental and Mechanical Specifications

• Operating Temperature: -40°C to +70°C, suitable for harsh industrial environments.
• Storage Temperature: -40°C to +85°C.
• Humidity: 5% to 95% (non-condensing).
• Protection Class: IP 20 (for indoor use).
• Vibration Resistance: Compliant with IEC 60255-21-1 standards.
• EMC Compliance: Meets IEC 61000-4-3/4/5 for electromagnetic immunity and emissions.
• Mounting: DIN-rail or panel-mounted design for easy integration into control cabinets.

Power Supply

• Input Voltage: 24 VDC (redundant input available for high reliability).
• Power Consumption: Typically < 50 W (depending on configuration).

Software and Programming

• Programming Tools:
  • Control Builder M (ABB’s integrated development environment) for configuration and programming.
  • MATLAB/Simulink with Real-Time Workshop for model-based design.
• Programming Languages: Supports ladder logic, structured text, function block diagrams, and sequential function charts.
• Real-Time Operating System: Pre-installed RTOS for deterministic control.

Functional Safety and Reliability

• SIL 3 Certification: Available for safety-critical applications (when configured with safety-rated I/O).
• Fault Tolerance: Redundant processor and communication options for high availability.
• Self-Diagnostics: Built-in diagnostics for error detection and preventive maintenance.

Applications

• Power Generation and Distribution: For turbine control, generator excitation, and grid synchronization.
• Industrial Automation: In process industries (e.g., chemical, oil & gas, mining) for complex control loops.
• Transportation and Traction: For electric vehicle drives, railway systems, and marine propulsion.

Dimensions and Weight

• Dimensions (W x H x D): Approximately 120 mm x 100 mm x 450 mm (exact dimensions may vary).
• Weight: Approximately 3 kg (including backplane).

Certifications and Standards

• Compliant with IEC 61131-3 (programmable controllers).
• CE, UL, and cUL certified for global use.

The ABB AC 800PEC / PP D113 (3BHE013692R0001) is a versatile, high-performance controller ideal for mission-critical applications requiring real-time control, reliability, and scalability. Its modular design and advanced communication capabilities make it suitable for a wide range of industrial automation tasks.

For detailed technical documentation or configuration support, refer to ABB’s official product manuals or contact ABB’s technical support team.
