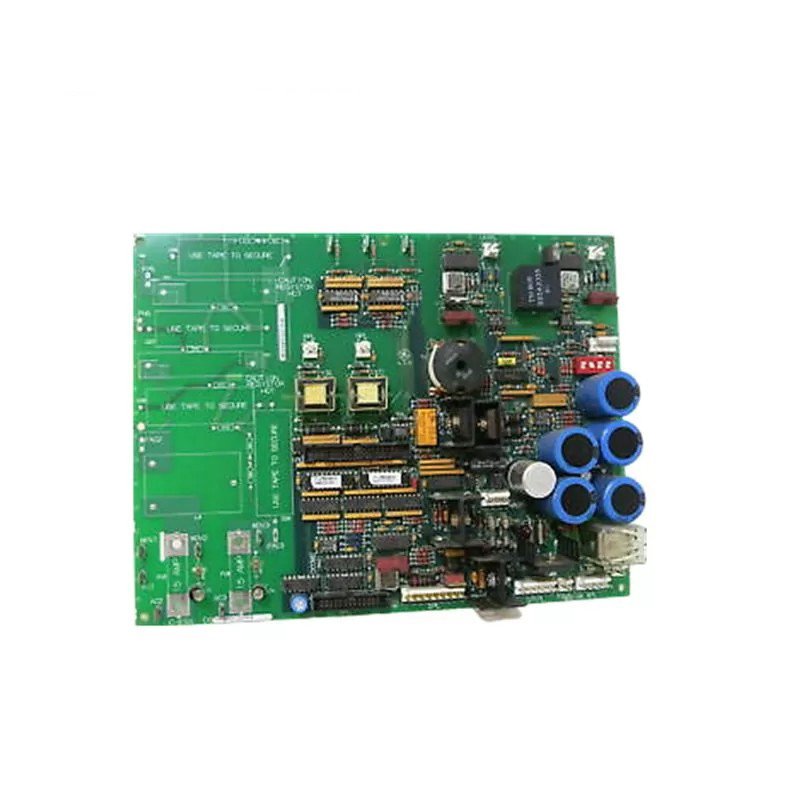

The GE Fanuc DS200SDCIG2AFB is an essential component of the GE Mark V Turbine Control System. It provides crucial DC power and instrumentation functions necessary for turbine control.

Key Functions

• DC Power Supply: The board supplies regulated DC voltage to various system components. This ensures consistent and reliable operation.
• Instrumentation: It features interface circuitry for analog and digital inputs/outputs. This allows monitoring and controlling parameters such as speed, temperature, and pressure.
• Driver Circuits: The board includes driver circuits to control the gating of armature silicon controller rectifiers (SCRs). These SCRs regulate current flow to the turbine’s field.

Specifications

• Manufacturer: General Electric
• Series: Mark V
• Product Type: SDCI DC Power Supply and Instrumentation Board
• Functional Acronym/Abbreviation: SDCI
• Group Variation: G2
• Used With: External Exciters
• Input Voltage: Up to 600 VAC

Applications

• Turbine Control Systems: Ideal for power plants requiring precise turbine control.
• Industrial Processes: Suitable for processes that need exact control of turbines.
