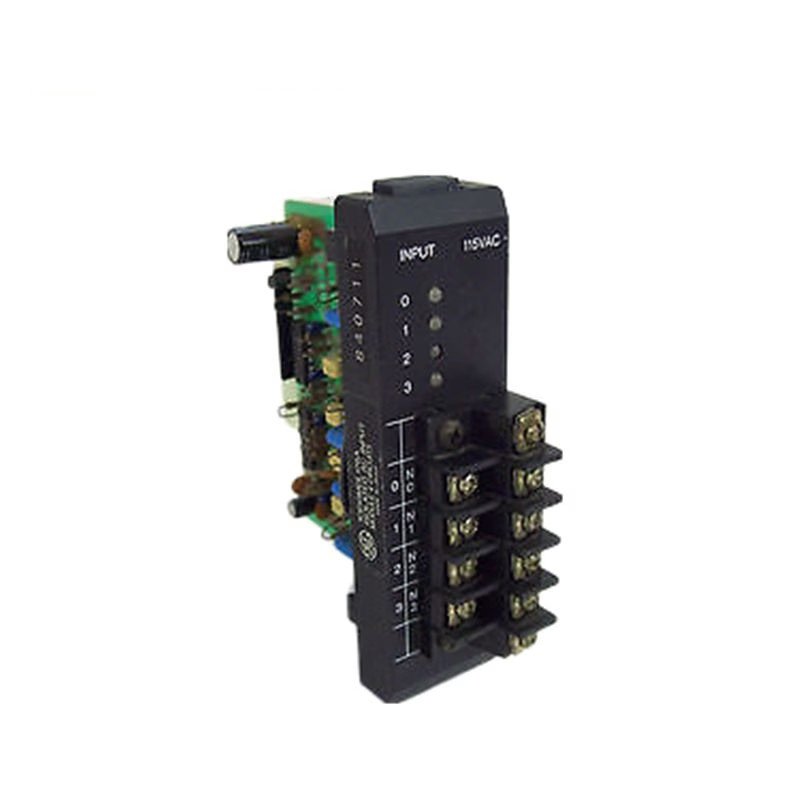

GE Fanuc IC610MDL126A Isolated AC Input Module

The GE Fanuc IC610MDL126A is an isolated AC input module designed for use with GE Fanuc Series One PLC systems. It serves as a reliable interface for connecting AC-powered devices like sensors, switches, and relays to the PLC. The module provides electrical isolation between the field devices and the PLC backplane, ensuring protection from voltage spikes and electrical noise. This functionality is critical in industrial environments where power fluctuations can cause damage to sensitive equipment. Additionally, its compact size makes it ideal for installation in space-limited areas.

Technical Specifications

AC Input Module

• Input Voltage: 120V AC (typical)
• Input Current: 15 mA at 60 Hz
• Operating Frequency: 47 to 63 Hz
• Input Impedance:
  • 10 kOhms at 60 Hz
  • 12 kOhms at 50 Hz
• Input Isolation: Provides electrical isolation from PLC backplane
• Input Compatibility: Works with AC devices like sensors, switches, and relays

24V DC Sink Input Module

• Product Type: 8-Point 24V DC Sink Input Module
• Manufacturer: GE Fanuc
• Number of Inputs: 8
• Input Voltage: 24V DC
• Input Current: 18 mA (typical)
• Input Impedance: 1.8 kΩ
• ON Level: < 3V DC
• OFF Level: 3V DC
• Response Time:
  • 4 to 15 ms (OFF to ON, ON to OFF)
• Maximum OFF Leakage: 3 mA
• Minimum ON Current: 7 mA
• Internal Power Consumption: 14 mA per ON point
