GE DS200DCFBG1BJB Product Details

The DS200DCFBG1BJB is part of the Mark V Speedtronic system and is primarily used to provide control-level power to drives and cabinet fans.It is suitable for EX2000 applications and DC2000,FC2000,GF2000,ME2000,CB2000,and AC2000 IGBT drive applications.As part of the Mark V series,this product has specific applications in control and management systems for steam,wind,and gas turbine automatic drive assemblies.

Product Features and Functions

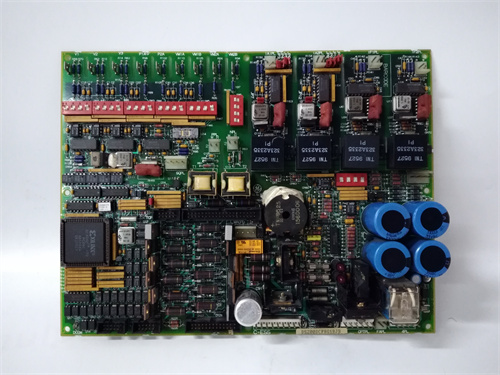

Circuit Board Design:The DS200DCFBG1BJB is a large rectangular circuit board with a large number of components mounted on the surface,including seven 4-position DIP switch devices and 12 configurable jumpers.These switches and jumpers are used to scale or change a variety of inputs,such as adjusting the voltage applied to the VCO output bridge circuit.

Indicators and Fuses:The board has a neon indicator to indicate a blown fuse in the 115 VAC line.There are also two LED indicators to indicate blown fuses in the+24 VDC line and the-24 VDC line.

Integrated Circuits:The board assembly contains a variety of integrated circuits such as voltage and current feedback VCO circuits,motor voltage decay circuits,AC line magnetic and zero crossing circuits,contactor drive circuits,field/armature SCR ignition circuits,etc.Together,these circuits provide functional support for the DS200DCFBG1BJB board and the larger Mark V Series automatic drive assembly.

Other Components:In addition to the above major components,the DS200DCFBG1BJB includes test points,I/O connectors(such as 1PL-1 to 1PL-40,2PL-1 to 2PL-9,etc.),fuses,resistor networks and resistors,capacitors,transistors,heat sinks,transformers,and relays.Test points are used to check voltage signals,while fuses are used to protect circuits.

Application Scenarios and Importance

As part of the Mark V series turbine control system,DS200DCFBG1BJB plays an important role in the field of industrial automation and control.It is widely used in industrial scenarios that require high performance and reliability,such as electricity,petroleum,and chemical industries.As a power board component,it is essential to ensure the stable operation of the entire control system.
