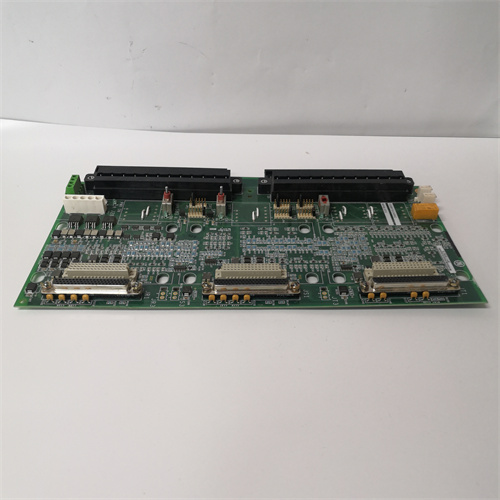

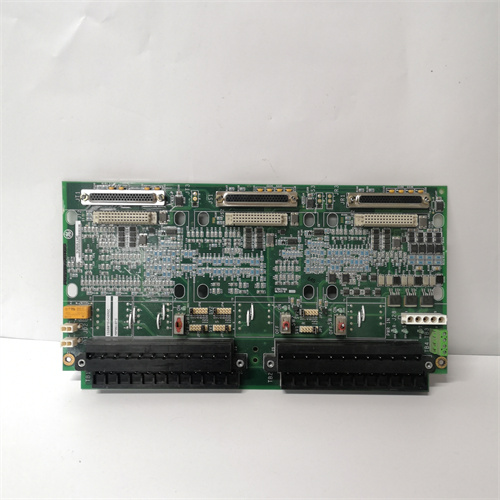

GE IS200TSVCH2ADC Product Introduction

GE IS200TSVCH2ADC is an optical isolation transformer designed to directly respond to Opto 22 customer needs in the energy management market.The following is a detailed introduction to the product.

Product Features

Multi-channel design

Provides eight analog temperature input channels that can be connected to standard integrated circuit temperature devices(ICTDs).

At the same time,it can also provide up to 128 analog input channels for a variety of small or large applications such as thermoforming,water treatment,refrigeration,curing,refining,and PID loop control.

High-precision measurement

Provides 0.017°C resolution,±0.8°C accuracy,and 1.0 mA/°C sensitivity,ensuring the accuracy and reliability of temperature measurement.

Optical isolation

Like all SNAP analog modules,the device is optically isolated from the device to which it is connected and other modules that may reside on a shared I/O rack.This isolation prevents electrical interference and fault propagation,improving system stability and reliability.

Easy connection

The wiring of field devices is completed through 8-pin connections on two pluggable terminal blocks on the top of the module.This design makes the installation and maintenance of the equipment more convenient and quick.

Flexibility and reliability

The device is built on the basis of the 1900 series.It not only inherits the excellent features of the previous generation products,but also further enhances the flexibility of configuration and the convenience of use through a series of new and enhanced operating functions.

Remote communication

The comprehensive Modbus protocol allows remote communication and device interrogation via RS485,and Ethernet connection is also optional,which facilitates integration into larger industrial automation systems.

Product specifications

Input voltage:120vac

Input current:5A

Output voltage:24vdc

Output current:1A

Dimensions:6 x 4 x 2 inches

Weight:1 pound

Application scenarios

GE IS200TSVCH2ADC optical isolation transformer is widely used in various industrial automation and control systems,especially in situations where high-precision temperature measurement and optical isolation are required.It can be used as a key component in GE steam turbine control systems to provide reliable voltage and current signals.In addition,it can be deployed in OEM applications such as development of autoclaves,HVAC systems,molding machines and test benches to save cost and space.
