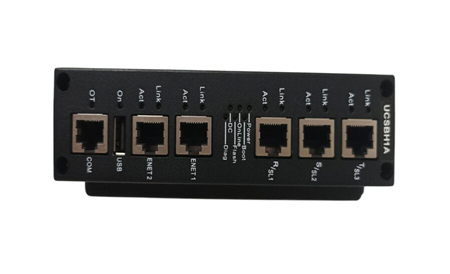

GE IS420UCSBH1A Product Details

GE IS420UCSBH1A is a high performance,high reliability UCSB(Universal Control System Board)controller module developed by General Electric(GE).The following is a detailed introduction about the product.

Basic Information

Specifications Part Number:IS420UCSBH1A

Manufacturer:General Electric(GE)

Country of production:United States

Technical Specifications

Microprocessor:600 MHz Intel processor(specific model may vary,such as EP80579)

Memory:256 MB DDR2 SDRAM with error correction code(ECC)

Flash memory:NAND flash memory size 2 Gigabytes

Operating system:QNX Neutrino

Weight:Approximately 2.4 pounds(or approximately 1.09 kilograms)

Features

Independent control system:IS420UCSBH1A acts as an independent control system and does not carry any application I/O.All I/O networks are connected to each controller to provide it with all input data.

Built-in power supply and compact design:The module has a built-in power supply,no jumper settings,no batteries,no fans,and takes up less panel space.

Clock synchronization:Using the IEEE 1588 protocol,the clocks of I/O components and controllers are synchronized to within 100 microseconds via R,S,and T IONets.

Data Communications:Communicates with I/O components via the onboard I/O Network(IONet)interface,a specialized Ethernet network that supports only Mark control I/O modules and controllers.

Software flexibility:Pre-installed application-specific software that can run in steps or blocks.Minor changes to the control software can be made online without restarting the system.

Application Advantages

Data acquisition and processing:It has powerful data acquisition and processing capabilities and can collect data from various sensors and monitoring equipment,including analog and digital signals.At the same time,it has signal processing functions to ensure the accuracy and reliability of data.

Rich communication interfaces:Usually equipped with multiple communication interfaces,such as Ethernet,RS-232,RS-485,etc.,to facilitate data communication with other devices and control systems.

Data recording and storage:Supports data recording and storage functions,which helps to monitor the system’s working status in real time and record the history,facilitating subsequent data analysis and fault diagnosis.

Real-time monitoring and control:Able to monitor the system’s operating status and working parameters in real time,and accurately control them to ensure stable operation of the system under various working conditions.

Fault diagnosis and protection:With fault diagnosis function,potential faults or abnormal conditions can be discovered in time,and corresponding protection measures can be taken to avoid greater losses or safety accidents.

Scope of application

GE IS420UCSBH1A controller module is widely used in industrial automation field,especially in gas turbine control system.Its high performance,high reliability and flexible configuration options make it an ideal choice for a variety of complex application scenarios.
