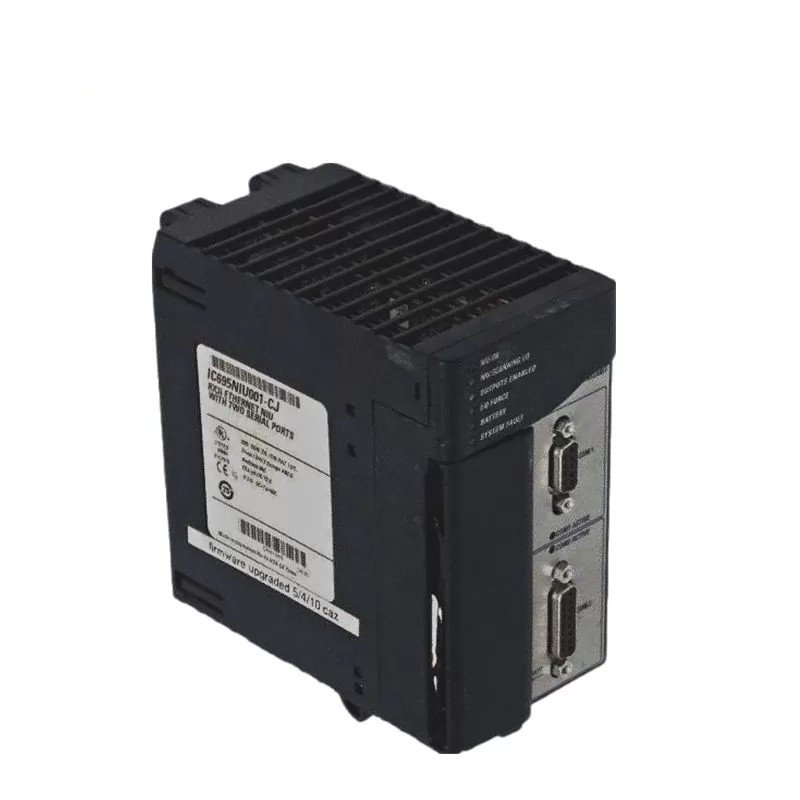

The GE Fanuc IC695NIU001 is an Ethernet Network Interface Unit (NIU) designed for the GE Fanuc RX3i Series. This unit enables the remote use of PACSystems RX3i and Series 90-30 I/O modules over an Ethernet network, facilitating automatic data exchange once configured.

Key Features

System Control and Status Monitoring: The unit enables system control via any master device that exchanges Ethernet Global Data (EGD). It provides real-time status updates to the controller, allowing proactive monitoring and command execution.

Configuration and Compatibility: It supports a wide range of RX3i and Series 90-30 modules. Moreover, it handles multiple communication protocols, including Modbus RTU Slave, SNP, Serial I/O, and Modbus RTU Master.

Local Logic and Storage: The unit includes 20Kbytes of optional local logic for custom programming, excluding C. It also offers 10 Mbytes of built-in flash memory for user data storage.

Communication: The unit features RS-232 and RS-485 serial ports for robust communication. Additionally, it supports Ethernet communication via the backplane-based Ethernet Interface module IC695ETM001.

Power and Battery: It requires both +3.3 VDC and +5 VDC power supplies. The battery-backed calendar clock ensures reliable timekeeping during operation.

Technical Specifications

• Series: RX3i
• Type: Ethernet Network Interface Unit
• Ports: 2 serial ports
• Local Logic: 20Kbytes (optional)
• Storage: 10 Mbytes
• Operating Temperature: 0°C to 60°C

Applications

Remote I/O: It facilitates remote monitoring and control of I/O devices over an Ethernet network.

Distributed Control Systems: The unit integrates seamlessly into distributed control systems, providing flexibility and scalability.

Data Acquisition: It collects data from various devices for efficient analysis and reporting.
