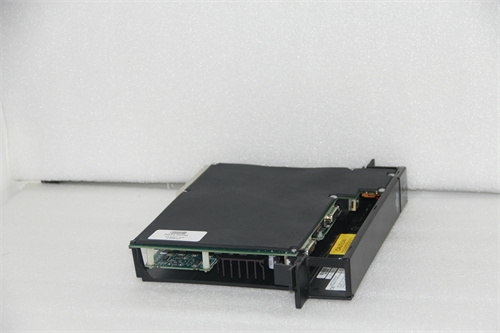

GE IC697CPX928 Product Introduction

IC697CPX928 is a powerful central processing unit(CPU)module.The following is a detailed introduction to the module.

Basic attributes

Brand and series:GE Fanuc(or a joint product of General Electric and Fanuc),belonging to the PACSystems RX series or 90-70 series(depending on different information)

Type:Central processing unit(CPU)module

Technical specifications and functional features

Processor speed and performance

Equipped with 80486DX4 microprocessor,the main frequency reaches 96 MHz(some information also mentions the main frequency of 66 MHz,but 96 MHz is more common)

The execution speed of each Boolean function is 0.4μs,with efficient computing power

Memory configuration

Provides 6MB of battery-backed memory for storing programs and runtime data

Equipped with 256KB of non-volatile user flash memory for storing user programs and configuration information

Communication interface

Supports multiple communication protocols and interfaces,including RS-232,RS-485 and Ethernet(or EtherNet/IP,etc.)

Convenient for data exchange and communication with other devices and systems

I/O processing capability

Capable of processing up to 12K inputs and outputs(I/O)in any combination

Supports up to 8K analog inputs and outputs(AI/AO)

Floating-point computing capability:Supports 32-bit floating-point data operations to meet the needs of complex control algorithms

Expandability and compatibility

Compatible with various optional modules,such as LAN Interface modules,programmable coprocessors,etc.,to expand and enhance its functions

Applicable to GE Fanuc 90-70 series PLC rack,occupies 1 slot space

Programming and configuration

Programming and configuration using MS-DOS or Windows-based software products

Remote programming and configuration via Ethernet TCP/IP or via SNP port

Status indication and protection

Equipped with multiple status LED indicators to display the operating status and fault information of the CPU

Provide security and protection functions such as password-controlled access,remote programming key switch,and memory protection

Application scenarios and advantages

Application scenarios:IC697CPX928 is widely used in various industrial automation control systems,such as mechanical processing,industrial production lines,power systems,energy management,transportation systems,water treatment and environmental control,and building automation.

High-performance processors and sufficient memory configuration meet the needs of complex control logic and data processing tasks.

Multiple communication interfaces and protocol support facilitate integration and communication with other devices and systems.

Powerful I/O processing capabilities support monitoring and control of a large number of input and output points.

Easy to program and configure,supporting multiple programming languages​​and remote programming methods.

Provide rich protection and security functions to ensure the stability and security of the system.
