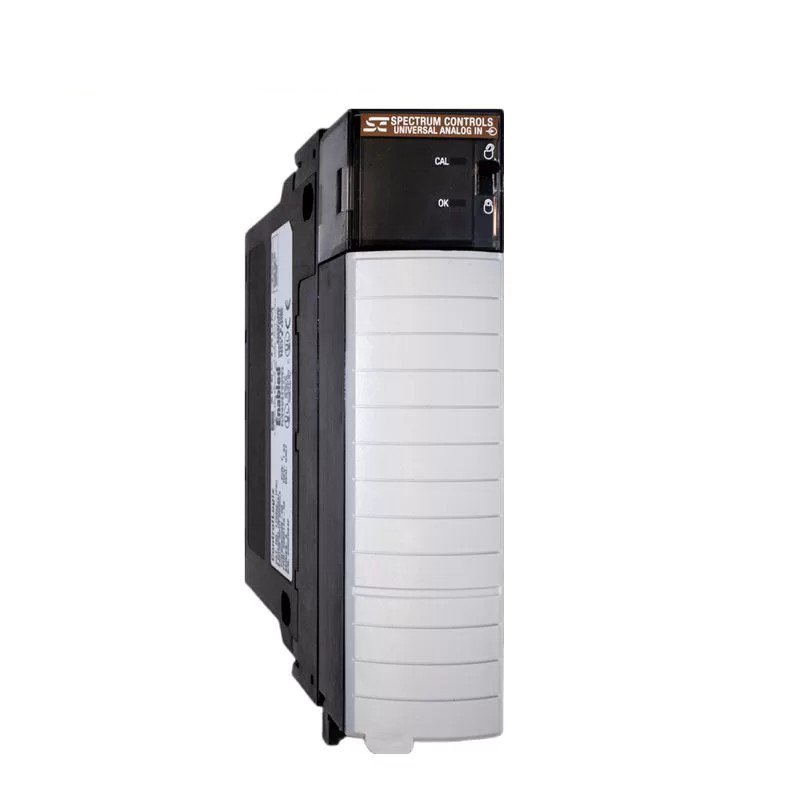

Allen-Bradley 1756SC-IF8U 8-Ch Universal Analog Inputs

The 1756SC-IF8U is an eight-channel universal input module from Spectrum Controls. This versatile module works with Allen-Bradley ControlLogix systems and is ideal for various analog input applications.

Key Features

• Eight Channels: You can simultaneously measure on eight independent channels.
• Universal Input: It supports voltage, current, resistance, RTDs, and thermocouples.
• High Accuracy: It ensures precise measurements across diverse applications.
• Isolation: Each channel provides electrical isolation, improving noise immunity.
• Configurability: You can easily configure it to meet specific application needs.

Technical Specifications

• Input Types: Voltage, current, resistance, RTDs, thermocouples
• Number of Channels: 8
• Resolution: 16-21 bits, depending on filter frequency
• Sampling Rate: You can configure the sampling rate as needed.
• Isolation: Channel-to-channel and channel-to-ground
• Power Supply: 24 VDC
• Mounting: DIN rail

Applications

The 1756SC-IF8U is widely used in industrial automation for monitoring and control. Here are some common applications:

• Process Control: Monitor temperature, pressure, and flow rate in your processes.
• Machine Monitoring: Measure motor current, vibration, and other parameters.
• Building Automation: Track temperature, humidity, and other environmental conditions.
