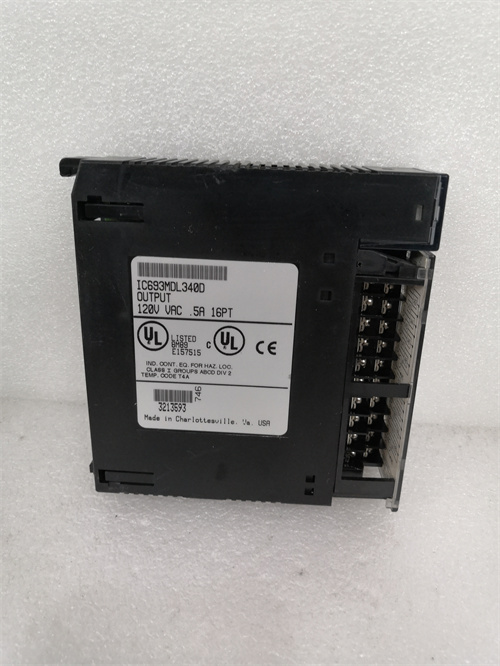

GE IC693MDL340 Product Details

GE IC693MDL340 is an industrial automation module manufactured by General Electric(GE).The following is a detailed introduction to it.

Basic information

Brand:General Electric(GE)

Model:IC693MDL340

Origin:United States(some information mentions that it is now affiliated with Emerson Automation,but it does not affect its original manufacturing information)

Technical specifications and features

Output type:discrete output module with 16 output channels,each channel can provide a rated output voltage of 120 VAC and a rated output current of 0.5 A.

Number of output groups:divided into two groups,each with 8 channels,and each group provides a common terminal to provide isolation.

Output characteristics:maximum surge current is 20 A,minimum load current is 50 mA;at 120 VAC nominal voltage,the output voltage drop is 1.5 VAV,and the maximum output leakage current is 2 mA;the maximum turn-on transition delay of each output channel is 1 ms.

Status indication:A separate status indicator is provided for each output channel to facilitate monitoring of the operating status of each channel.

Fuse indicator:equipped with a fuse indicator LED,which will light up when the internal fuse blows,providing a fault warning.

Working environment:It can work normally in the temperature range of-20℃to 60℃(some information is-25℃to 70℃),adapting to various industrial environments;the working humidity range is 5%to 95%(no condensation).

Installation method:Supports DIN rail installation,which is convenient and fast and saves space.

Application field

GE IC693MDL340 module is widely used in the following fields

Manufacturing:used in production line automation,equipment control and other scenarios to improve production efficiency and product quality.

Energy industry:plays an important role in power control systems,renewable energy equipment and other fields to ensure the stable supply and efficient use of energy.

Infrastructure:used in infrastructure automation systems such as water treatment and rail transit signal control to improve the reliability and safety of the system.

Logistics warehousing:in automated warehousing systems,conveyor line control and other aspects,to achieve rapid sorting and efficient circulation of goods.
