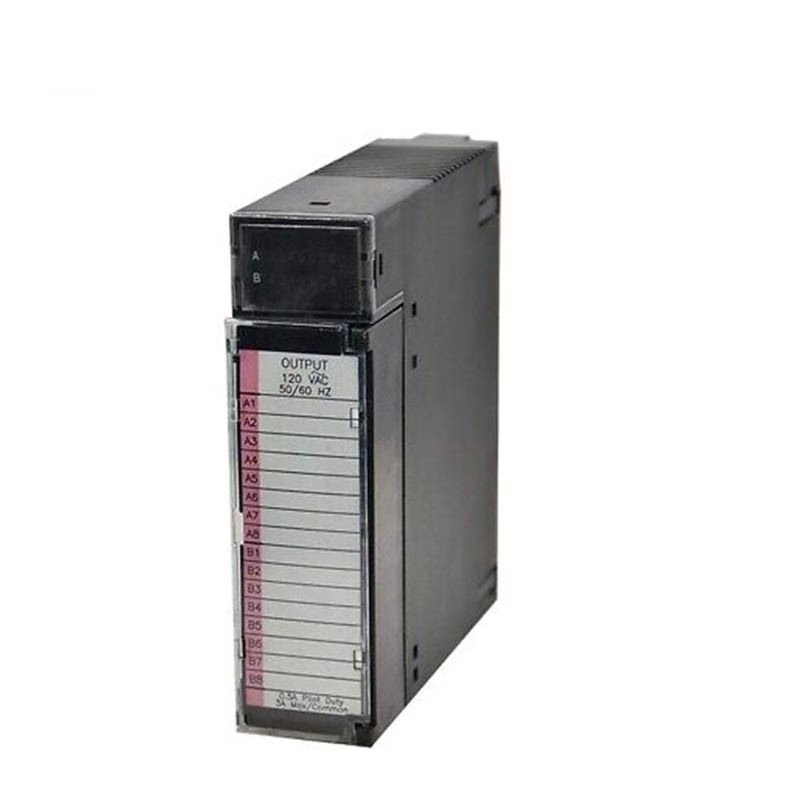

The GE Fanuc IC693MDL340B is a 16-point AC output module designed for use with GE Fanuc Series 90-30 PLC systems. This module allows users to control various AC-powered devices in industrial automation applications. It provides flexibility with isolated output groups and is capable of handling moderate current loads.

Technical Specifications

• Model: IC693MDL340B
• Manufacturer: GE Fanuc
• Type: Discrete Output Module
• Number of Output Points: 16
• Output Type: 120 VAC
• Output Voltage Range: 85 to 132 VAC
• Output Current:
  • 0.5 A per point
  • 3 A per group
• Frequency: 50 to 60 Hz
• Isolation:
  • 1500 V between field side and logic side
  • 500 V between each output group
• Inrush Current: 20 A for one cycle
• On Response Time: 1 ms
• Off Response Time: ½ cycle
• Maximum Output Leakage Current: 2 mA at 120 VAC
• Minimum Load Current: 50 mA
• Dimensions: 2.0 in x 5.0 in x 5.0 in (5.1 cm x 12.7 cm x 12.7 cm)
• Weight: 0 lbs 11.0 oz (0.3 kg)
