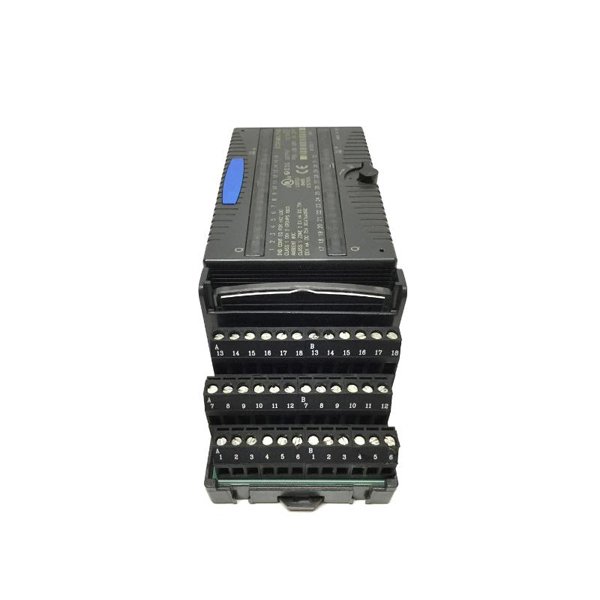

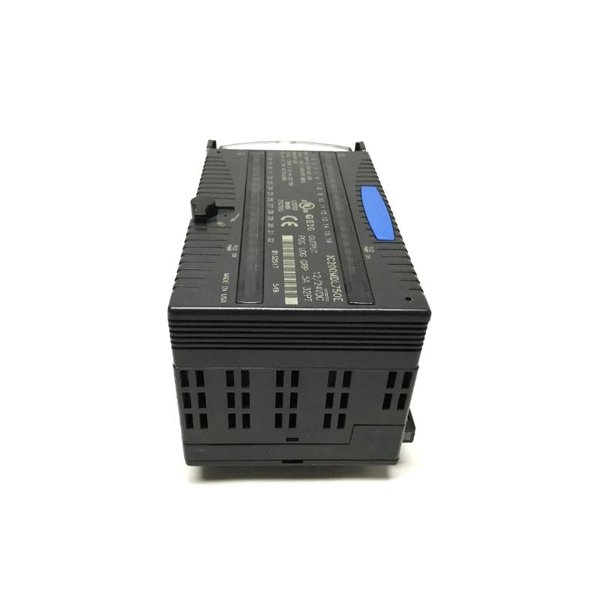

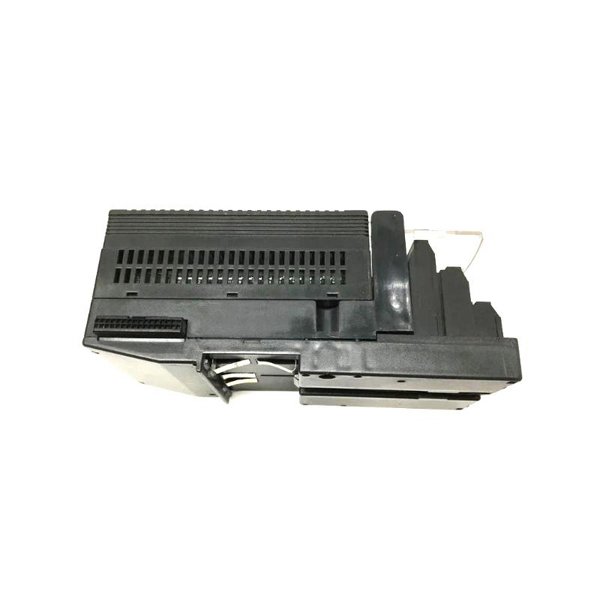

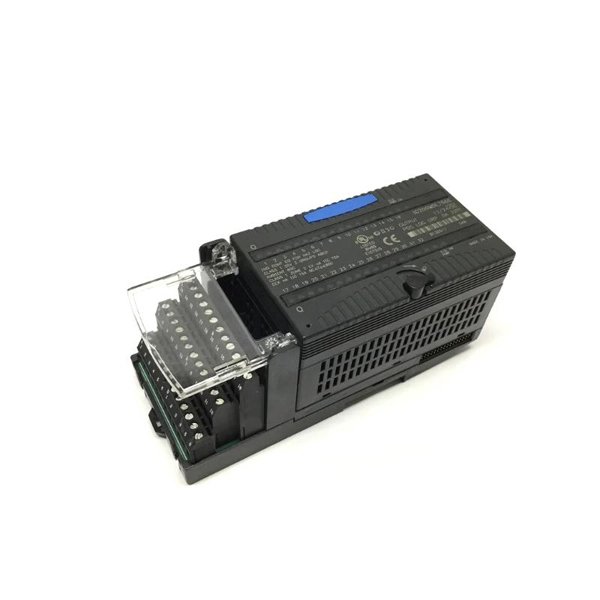

​The GE Fanuc IC200MDL750D VersaMax Discrete Output Module is a high-density digital output module designed to provide reliable and efficient control of various output devices in industrial automation systems. With 32 discrete output points organized into two groups of 16, this module is optimized for controlling devices such as relays, solenoids, and other digital actuators. It integrates seamlessly with the VersaMax I/O system, ensuring optimal performance in machine control, process control, and other industrial applications.​

Product Specifications

Below is a detailed table of the technical specifications for the IC200MDL750D module:​

Product Applications

The IC200MDL750D module is versatile and suitable for a wide range of industrial applications, including:​

• Manufacturing Automation: Controls machinery and production lines, ensuring precise operation of actuators and relays.​

• Process Control Systems: Manages processes in industries such as chemical, pharmaceutical, and food processing, where accurate output control is critical.​

• Material Handling: Operates conveyors, sorters, and other material handling equipment, facilitating efficient movement of goods.​

• Energy Management: Integrates with systems to control lighting, HVAC, and other energy-consuming devices for optimized energy usage.​

• Water and Wastewater Treatment: Controls pumps, valves, and other equipment essential for treatment processes.​

Product Advantages

The IC200MDL750D offers several key advantages:

• High-Density Output: With 32 output points, it provides extensive control capabilities within a compact module.​

• Fast Response Time: Ensures quick switching with ON response time of 0.2 ms and OFF response time of 1.0 ms, enhancing system performance.​

• Robust Isolation: Offers 250 VAC continuous isolation between user input and logic/frame ground, ensuring safety and signal integrity.​

• LED Indicators: Provides clear visual status of each output, as well as module health through OK and FLD PWR LEDs, facilitating troubleshooting and maintenance.​

• Wide Operating Voltage Range: Accommodates various power supply configurations with an input voltage range of 10.2 to 30 VDC.​

• Compact and Lightweight Design: Eases installation and integration into existing systems without requiring significant space.

Frequently Asked Questions (FAQ)

1. What is the maximum output current per channel for the IC200MDL750D module?

   • The IC200MDL750D module can handle up to 0.5 A per channel with a resistive load.

2. Can the IC200MDL750D module be used with a 12 VDC power supply?

   • Yes, the module operates within a voltage range of 10.2 to 30 VDC, which includes both 12 VDC and 24 VDC nominal systems.

3. What types of devices can the IC200MDL750D control?

   • The module is designed to control digital actuators such as relays, solenoids, motors, and other similar devices in industrial applications.

4. Does the IC200MDL750D module offer isolation?

   • Yes, the module provides 250 VAC continuous isolation between the user input and logic/frame ground, ensuring safety in industrial environments.

5. Are there any indicator LEDs on the module?

   • Yes, the module features individual LEDs for each output channel, along with an “OK” LED to show the health of the module and an “FLD PWR” LED to indicate the presence of field power.

6. What is the response time of the outputs on the IC200MDL750D?

   • The ON response time is 0.2 ms maximum, and the OFF response time is 1.0 ms maximum, ensuring quick switching.

7. Can the IC200MDL750D module be used in high-temperature environments?

   • Yes, the module is rated for operation in temperatures ranging from 0°C to 60°C (32°F to 140°F).

8. Is the IC200MDL750D compatible with other VersaMax modules?

   • Yes, this module is fully compatible with the VersaMax I/O system and can be integrated seamlessly into existing VersaMax setups.

9. What are the dimensions and weight of the IC200MDL750D module?

   • The module measures 110 × 66.8 × 50 mm and weighs 0.132 kg.

10. Does the IC200MDL750D module have certifications for safety and compliance?

    • Yes, the module is CE marked, UL listed, CSA certified, and RoHS compliant, ensuring it meets global safety and environmental standards.
