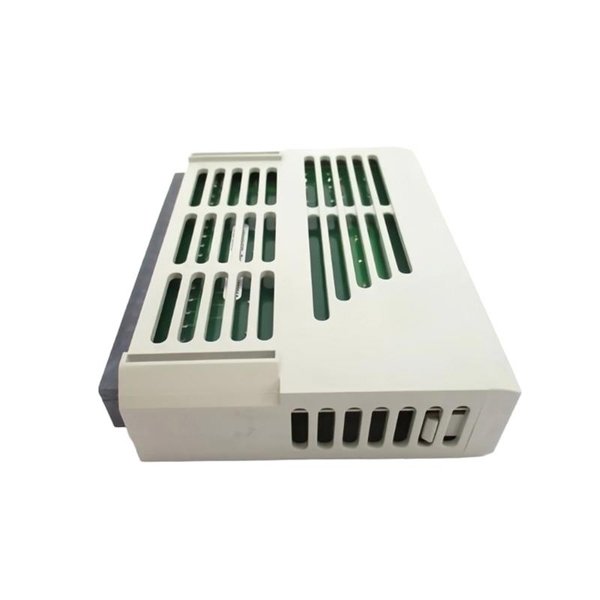

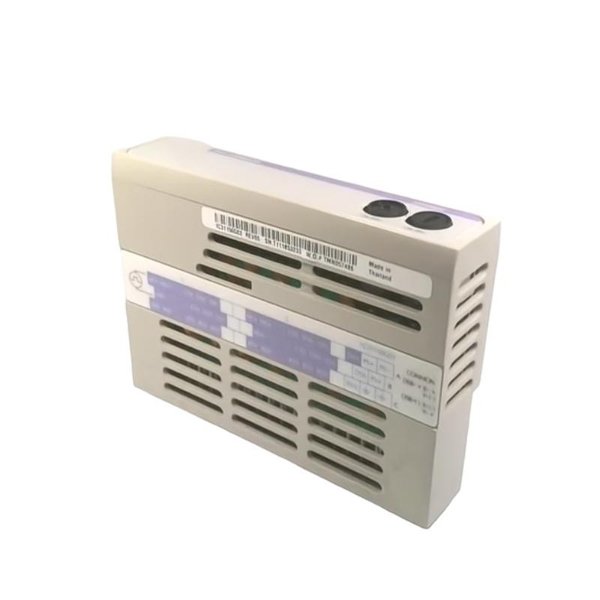

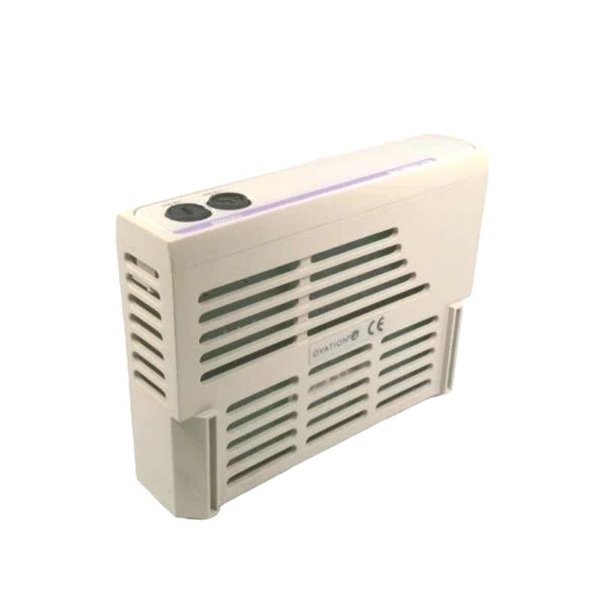

The Ovation 1C31150G03 External Power Supply Pulse Accumulator is a robust and reliable device designed to accurately count and accumulate pulses from various instrumentation and control systems. Its external power supply ensures consistent operation independent of the input pulse source, providing enhanced stability and precision. Built to integrate seamlessly with Ovation control platforms, this pulse accumulator is essential for applications requiring high accuracy in pulse measurement, such as flow metering, energy monitoring, and process automation.

Designed with a durable casing and advanced electronic components, the 1C31150G03 supports long-term operation in demanding industrial environments. Its straightforward installation and configuration make it a preferred choice for engineers and technicians in power plants, manufacturing, and other critical industries.

Product Specifications

Product Applications

The Ovation 1C31150G03 External Power Supply Pulse Accumulator is widely used in multiple industrial sectors, including:

• Power Generation: Accurate pulse counting from flow meters and electrical meters for energy consumption tracking.

• Process Automation: Monitoring pulse signals from various sensors for process control and optimization.

• Water and Wastewater Treatment: Measuring flow rates and controlling treatment cycles based on pulse input.

• Oil and Gas: Pulse accumulation from flow meters for custody transfer and operational control.

• Manufacturing: Integration with equipment to track operational cycles, material usage, or production throughput.

• Building Management Systems: Monitoring utility consumption such as electricity, gas, and water via pulse output meters.

Product Advantages

• External Power Supply: Ensures stable operation independent of pulse input, reducing errors caused by voltage fluctuations.

• High Accuracy: With an accuracy of ±0.1%, it ensures reliable data for critical measurement tasks.

• Wide Pulse Frequency Handling: Supports pulse frequencies up to 10 kHz, accommodating fast signal sources.

• Compact Design: Small footprint with DIN rail mounting for easy integration in control panels.

• Robust Construction: Suitable for harsh industrial environments, with broad operating temperature and humidity tolerance.

• Compatibility: Seamlessly integrates with Ovation control systems and other standard industrial equipment.

• User-Friendly: Simple installation and configuration minimize downtime and maintenance effort.

• Certified Safety Standards: Complies with CE and UL for assured safety and reliability.

Frequently Asked Questions (FAQ)

1. Q: What type of pulses can the Ovation 1C31150G03 handle?

   A: It supports dry contact and open collector type pulse inputs.

2. Q: Can the device operate without an external power supply?

   A: No, it requires a 24 VDC external power supply for proper operation.

3. Q: What is the maximum pulse frequency supported?

   A: The device supports pulse frequencies up to 10 kHz.

4. Q: Is the unit suitable for outdoor installation?

   A: It is designed for indoor industrial environments; additional protection may be needed for outdoor use.

5. Q: How is the pulse count outputted?

   A: The device provides a digital pulse output interface compatible with Ovation systems.

6. Q: What is the typical accuracy of the pulse count?

   A: It has an accuracy of ±0.1% under normal operating conditions.

7. Q: What are the mounting options?

   A: The device is compatible with standard DIN rail mounting.

8. Q: Does the device have any certifications?

   A: Yes, it is CE and UL certified.

9. Q: Can it handle pulses from multiple sources simultaneously?

   A: It is designed for a single pulse input channel; multiple units are recommended for multiple sources.

10. Q: What are the maintenance requirements?

    A: The unit is maintenance-free under normal conditions; periodic inspection is recommended.
