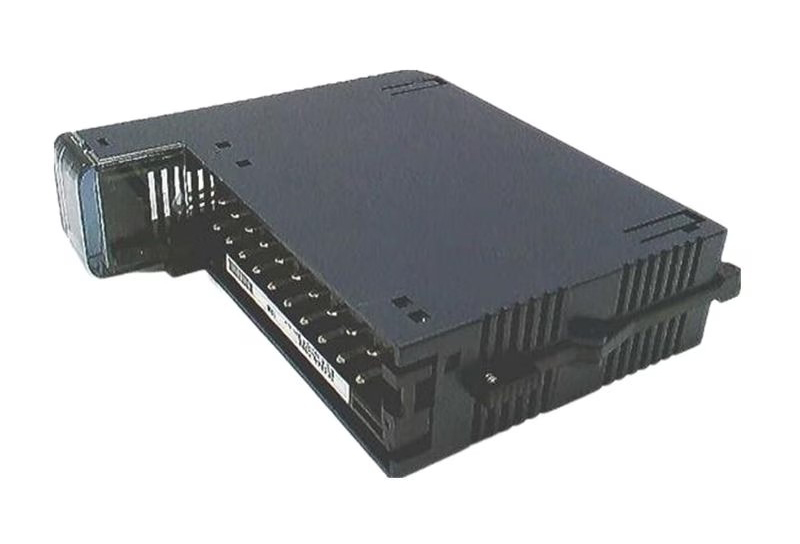

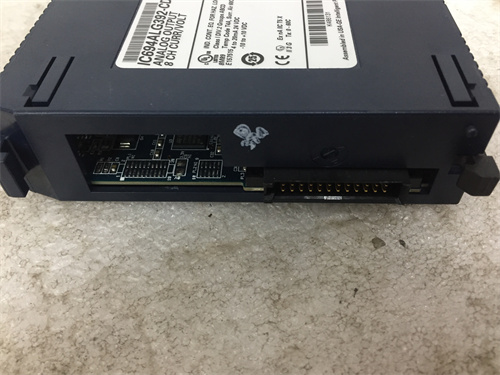

GE IC694ALG392 Product Details

GE IC694ALG392 is a module produced by General Electric(GE)in the United States.The following is a detailed introduction to the module.

Basic information

Type:PACSystems RX3i series analog output module.

Brand:GE(some say it belongs to the GE Fanuc automation series).

Origin:United States.

Functions and applications

Main functions:This module is mainly used to convert digital signals into analog signal outputs to control external devices or systems.

Application range:This module is widely used in the field of industrial automation,especially in systems that require precise control of analog output.Specific application scenarios include CNC machinery,metallurgy,oil and gas,paper printing,textile printing and dyeing,electronic manufacturing,automobile manufacturing,tobacco,plastic machinery,power plants,water conservancy treatment/environmental protection,municipal engineering,steel mills,cement plants,robots,rail transit and other industries.

Technical parameters

Output type:voltage and current output,supporting 8 channels(others say 4 channels)analog output.

Voltage output range:0~10V,±10V.

Current output range:020mA,420mA.

Resolution:16 bits.

Accuracy:±0.1%for voltage output and±0.2%for current output.

Update rate:Up to 100 times per second(another saying is 8mS).

Power supply requirements:The supply voltage is 24V DC,and the typical power consumption is 5W.

Current consumption:110mA 5VDC(or 24VDC provided by the user).

Inter-channel isolation:Enhances the anti-interference ability of the system,and each channel is isolated from each other.

Working environment:The operating temperature range is 060°C,and the relative humidity is 5%95%(no condensation).

Features and advantages

Built-in diagnostic function:It can monitor the module status in real time,and detect and deal with potential problems in time.

High resolution:Ensures the accuracy of the signal.

Fast update rate:Meet dynamic control needs.

Compatibility:As part of the PACSystems RX3i series,it has good compatibility and integration with other GE industrial automation products.

Multiple communication protocols:Supports communication protocols such as EtherNet/IP,PROFIBUS DP and DeviceNet,facilitating networking and integration with other devices and systems.
