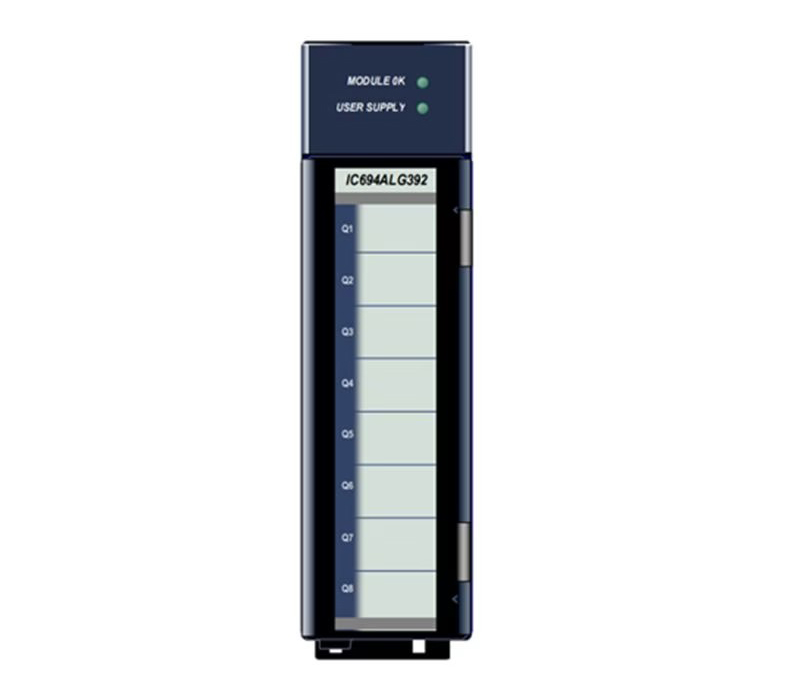

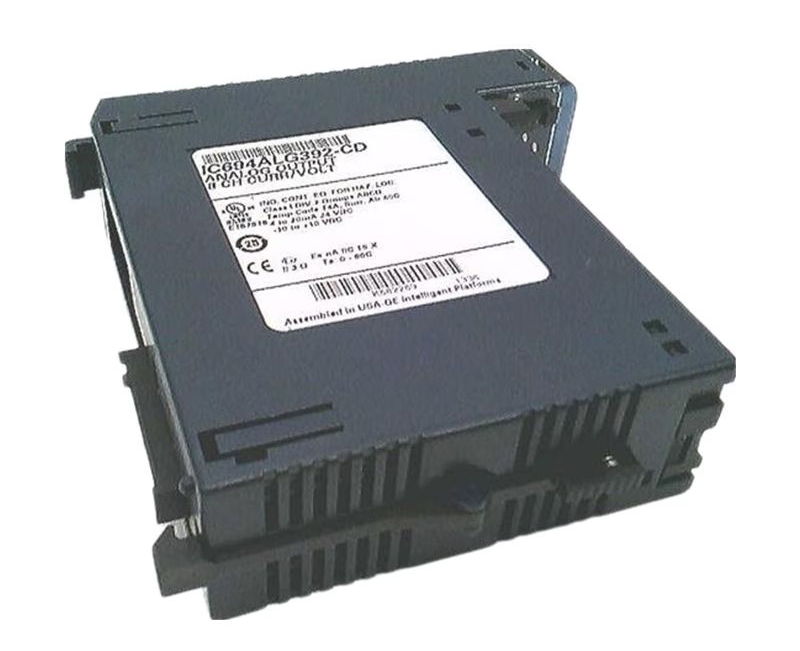

GE Fanuc IC694ALG392 Analog Output Module

The GE Fanuc IC694ALG392 is an analog output module for the PACSystem RX3i series. It provides eight single-ended output channels that can generate various signal types, including both voltage and current outputs. These outputs are ideal for modulating control in systems that require continuous, variable control of processes, such as in industrial automation and process control applications.

Technical Specifications

• Part Number: IC694ALG392
• Module Type: Analog Output Module
• Series: PACSystem RX3i
• Manufacturer: GE Fanuc / Emerson Automation

Output Channels

• Number of Output Channels: 1 to 8 selectable, single-ended outputs
• Output Voltage Range:
  • 0 to 10V (unipolar)
  • -10V to +10V (bipolar)
• Output Current Range:
  • 4 to 20mA
  • 0 to 20mA

Resolution and Accuracy

• Resolution:
  • 4 to 20mA: 0.5 µA (1 LSB = 0.5 µA)
  • 0 to 20mA: 0.625 µA (1 LSB = 0.625 µA)
  • 0 to 10V: 0.3125 mV (1 LSB = 0.3125 mV)
  • -10V to +10V: 0.3125 mV (1 LSB = 0.3125 mV)
• Accuracy (Voltage Mode):
  • ±0.25% of full scale @ 25°C (77°F), typical
  • ±0.5% of full scale @ 25°C (77°F), maximum
  • ±1.0% of full scale over operating temperature range (maximum)

Update Rate

• Update Rate: 8 milliseconds (all eight channels)

Calibration

• Factory Calibration:
  • 0.625 µA for 0 to 20mA
  • 0.5 µA for 4 to 20mA
  • 0.3125 mV for voltage (per count)

Power Requirements

• User Supply Voltage: 20 VDC to 30 VDC (nominal 24V DC)
• Power Consumption:
  • 110 mA from the 5V DC PLC backplane supply
  • 315 mA from the 24V DC external user supply
• External Power Supply Ripple: 10% maximum

Isolation and Protection

• Isolation (Field to Backplane and to Frame Ground):
  • 250 VAC continuous
  • 1500 VDC for 1 minute

Environmental Considerations

• Protection: Environmental protection must be provided by the user, as the module has a low IP rating and is sensitive to moisture and extreme temperature variations.

Compatibility

• Compatible Actuators: Valves, motors, pistons, and agitators
• Supported PLCs: GE Fanuc Series 90-30 and 90-70

• Weight: 0.66 lbs
