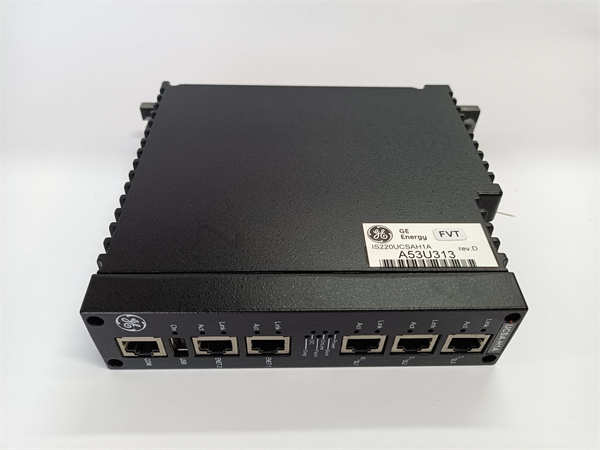

Technical Parameters of GE Energy IS220UCSAH1A (UCSA-H1A REV C) Processor Module

Technical Parameters of GE Energy IS220UCSAH1A (UCSA-H1A REV C) Processor Module(For Industrial Automation and Power System Control).

Product Overview

• Model: IS220UCSAH1A (UCSA-H1A REV C)
• Category: Controller Module (Embedded Processor Unit)
• System Compatibility: GE Mark VIe Distributed Control System (DCS)
• Key Functions:
  • Execution of control logic and advanced algorithms (PID, fuzzy control, MPC).
  • Real-time data processing and network communication.
  • Integration with I/O modules and HMI systems via dual-redundant Ethernet (10/100/1000 Mbps).

Hardware Specifications

• Processor:
  • Embedded high-performance CPU (PowerPC architecture, ≥667 MHz clock speed).
  • Hardware Floating-Point Unit (FPU) for accelerated mathematical computations.
• Memory:
  • RAM: ≥64 MB DDR (expandable to 256 MB).
  • Flash Storage: 128 MB (hot-swappable) for firmware, configurations, and historical data.
• Power Input:
  • Voltage: 24 V DC (±15% tolerance).
  • Redundancy Support: Dual 24 V DC power supplies (total ≤25 W).
• Isolation:
  • I/O channel isolation: ≥1500 V AC.
  • Communication port isolation: ≥2500 V AC.

Communication Interfaces

• Ethernet:
  • 2x 10/100/1000 Mbps ports (RJ45 connectors).
  • Supports Modbus TCP/IP, DNP3, PROFINET, and OPC UA.
• Serial Ports:
  • RS-232/RS-485 (for legacy device integration).
  • CAN bus support (optional, dependent on firmware configuration).
• Fieldbus Integration:
  • Profibus-DP expansion module compatibility.

Environmental & Reliability

• Operating Temperature: -10°C to +60°C (storage: -20°C to +70°C).
• Humidity: 5% to 95% non-condensing.
• Protection Class: IP20 (standard rack-mounted), optional IP67 for harsh environments.
• EMC Compliance:
  • IEC 61000-6-2/4 (ESD ≥8 kV, EMS ≥10 V/m).
  • TÜV SIL 2 certified (IEC 61508 compliant for safety systems).

Software & Programming

• Operating System: QNX Neutrino® (RTOS for deterministic control).
• Programming Languages:
  • IEC 61131-3 compliant (Ladder Logic, Structured Text, Function Block).
• Advanced Algorithms:
  • PID auto-tuning, model predictive control (MPC), and sequential logic.
• Configuration Tools: GE ControlST™ (for programming, debugging, and diagnostics).

Redundancy & Fault Tolerance

• 1:1 Controller Redundancy:
  • Failover time ≤50 ms (ensures uninterrupted process control).
• Self-Diagnostics:
  • Watchdog timer, CRC checksums, and event logging.
• Data Security:
  • AES-128 encryption, user-level access control.

Mechanical & Mounting

• Form Factor: 6U CompactPCI® (CPCI) card.
• Installation: DIN rail or rack-mounted (CPCI chassis with 4 slots).
• Weight: ~2 kg (excluding expansion modules).

Certifications & Compliance

• Functional Safety: TÜV SIL 2 (IEC 61508).
• Cybersecurity: NIST SP 800-53, IEC 62443.
• Industrial Standards: UL, CE, ATEX (for hazardous areas).

Applications

• Power Generation: Turbine control, excitation systems, and grid synchronization.
• Oil & Gas: Pipeline automation, compressor control, and safety shutdown.
• Manufacturing: High-speed machinery control, robotics, and quality assurance.

Note: Technical specifications may vary slightly based on firmware revisions (e.g., REV C updates). For detailed integration guides, consult GE Energy’s Mark VIe System Manual or contact authorized distributors.
