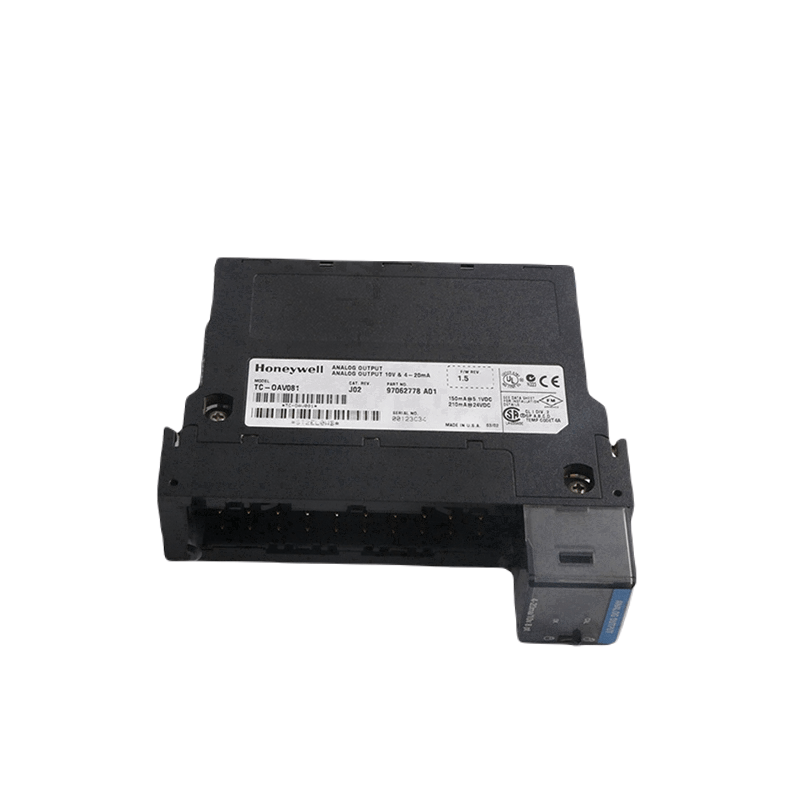

The Honeywell TC-OAV081 stands as an 8-channel analog output module, offering 10-volt or 4-20 mA output capabilities. Although it has been discontinued, certain suppliers still carry it.

This module features a voltage output range spanning from -10.4 to 10.4 volts and a current output range of 0 to 21 mA. Its voltage resolution amounts to 320 mV per count, while the current resolution is 100 microamperes per count.

It exhibits compatibility with various PLCs, including the Honeywell TDC5000, TDC3000, and TDC2000 series, as well as other industrial control systems.

This DIN rail-mountable module operates within a temperature range of -25 to 70 degrees Celsius and holds an IP65 rating for protection against dust and water.

Key features

• 8-channel analog output
• 10-volt or 4-20 mA output
• Voltage output range: -10.4 to 10.4 volts
• Current resolution: 100 microamperes per count
• Compatible with various PLCs
• DIN rail-mountable
• Operating temperature range: -25 to 70 degrees Celsius
• IP65 rating for dust and water protection
• Voltage Output Range : 10.4 V
• Current Output Range : 0 to 21 mA
• Voltage Resolution : 320 V per count
• Current Resolution : 650 A per count
• Output Overvoltage Protection : 24 VAC/VDC continuous at room temperature
• Open Short Circuit Protection : Electronically current limited to 21 mA or less
• Drive Capability : >2000 (Voltage) 0-750 (Current)
• Calibrated Accuracy @ 25?C : Better than 0.05% of range From 4 to 21 ma (Current) From –10.4V to +10.4V(Voltage)
• RFI Immunity : Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
• Module Update Rate for All Channels : 25 ms
• Output Settling Time : Less than 2 ms to 95% of final value with resistive loads
• Isolation Voltage User to system : 100% Tested at 2550VDC for 1s
• Power Dissipation : 6.9 W max
• Connection Terminal Blocks : TC-TBNH, 20-position terminal block
