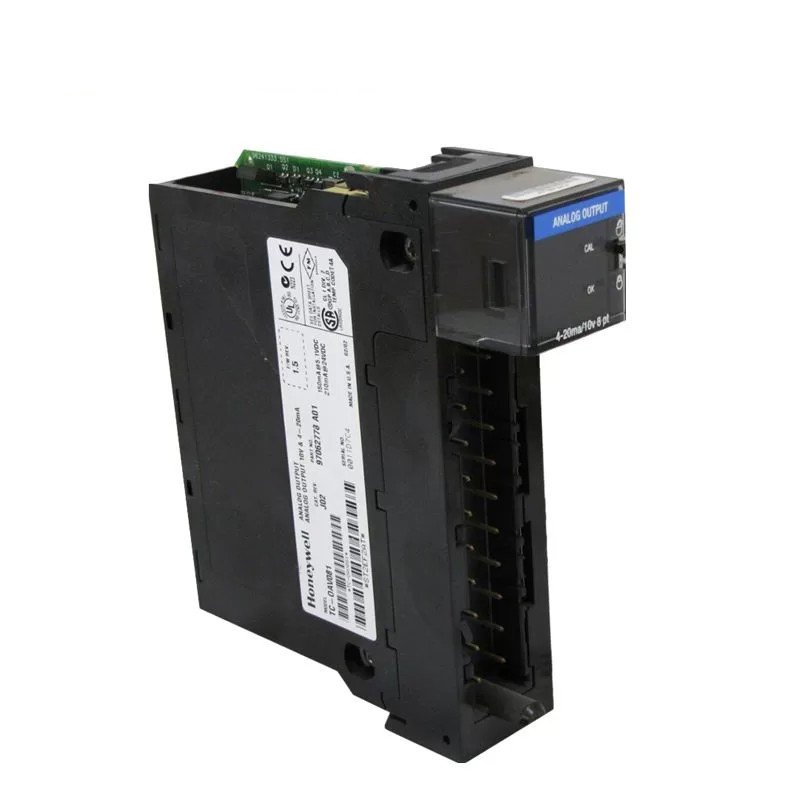

The Honeywell TC-OAV081 is an 8-channel analog output module designed for the Honeywell C300 controller. This single-slot module delivers versatile analog output capabilities, offering a wide range of options such as voltage, current, and resistance.

Key Features

• 8 Channels: Provides up to 8 independent analog outputs.
• Versatile Output: Supports voltage, current, and resistance outputs.
• Programmable Scaling: Customizes output values according to your needs.
• High Resolution: Ensures fine-grained control over output signals.
• Fast Response: Achieves rapid output settling time for quick adjustments.
• Overvoltage Protection: Shields the module from potential damage.

Technical Specifications

• Number of Points: 8 channels
• Voltage Output Range: -10.4 V to +10.4 V
• Voltage Resolution: 320 µV per count
• Current Resolution: 650 µA per count
• Output Overvoltage Protection: Handles 24 VAC/VDC continuously at room temperature.
• Module Update Rate: Updates all channels within 25 ms.
• Output Settling Time: Reaches 95% of the final value in under 2 ms with a resistive load.

Applications

The TC-OAV081 is widely used in various industrial automation and control applications, including:

• Process Control
• Machine Automation
• Building Automation
• Test and Measurement Systems

Additional Information

• Dimensions: 3.5 cm x 14 cm x 14.5 cm
• Weight: 0.24 kg
