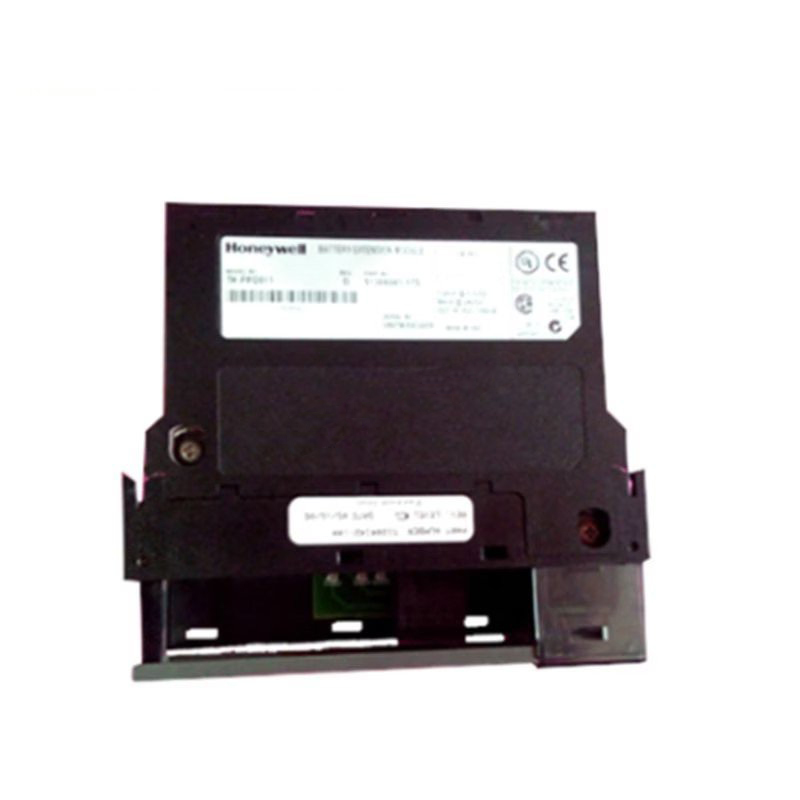

The Honeywell TC-IXR061 is an analog input module designed to interface with various field devices, such as temperature and pressure transmitters, within the Experion Process Knowledge System. It converts analog signals into digital form for accurate data processing. This module is essential for reliable and precise monitoring in industrial control systems, offering features like galvanic isolation and fast open wire detection.

Technical Specifications

• Manufacturer: Honeywell
• Model: TC-IXR061
• Product Type: Experion Analog Input Module
• Number of Points: 6
• Galvanically Isolated Channels: Yes
• Open Wire Detection: Out of range reading reported
• Open Wire Detection Time: Less than 5 seconds
• Channel Bandwidth: DC to 15 Hz (-3 dB)
• RFI Immunity: Error less than 2.0% at 10 V/m, 27 to 1000 MHz
• Power Dissipation: 4.3 W max
• Connection Terminal Blocks: TC_TBNH, 20-position terminal block
• Module Update Rate for All Channels: 50 ms
