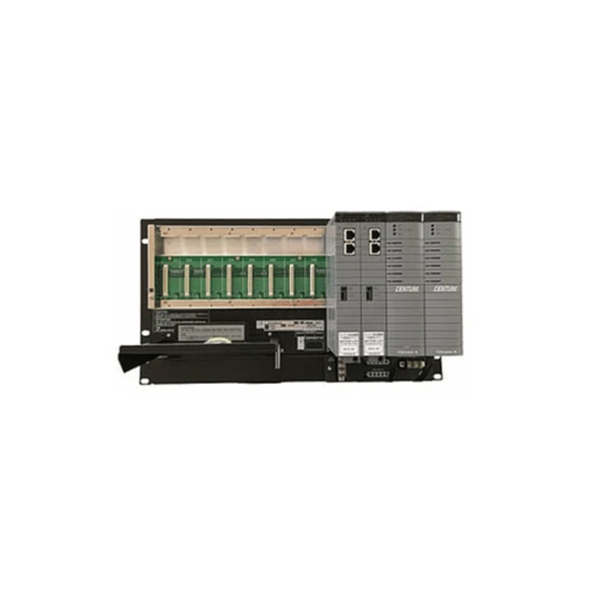

Yokogawa ANB10D-415/CU2N ESB Bus Node Unit

The ANB10D-415/CU2N supports 4-20 mA current inputs and features galvanic isolation to ensure signal integrity and noise immunity. Its robust construction and advanced diagnostics capabilities make it a preferred choice for critical control systems.

Product Parameters

Product Applications

The Yokogawa ANB10D-415/CU2N is widely used in industries requiring precise analog signal acquisition and processing. Key applications include:

1. Process Control Systems – Integrates with DCS (Distributed Control Systems) for real-time monitoring and control.

2. Oil & Gas – Used in upstream and downstream operations for pressure, temperature, and flow monitoring.

3. Chemical Plants – Ensures accurate signal transmission for reactive and hazardous environments.

4. Power Generation – Monitors critical parameters in turbines, boilers, and substations.

5. Water & Wastewater Treatment – Facilitates level and pH monitoring in treatment plants.

6. Pharmaceuticals – Supports GMP-compliant processes with high-precision signal handling.

Product Advantages

1. High Accuracy – ±0.1% full-scale accuracy ensures reliable data acquisition.

2. Robust Isolation – Galvanic isolation prevents ground loops and noise interference.

3. Durability – Designed for harsh industrial environments with wide temperature tolerance.

4. Easy Integration – Compatible with Yokogawa’s CENTUM VP and other control systems.

5. Advanced Diagnostics – Self-diagnostic features reduce downtime and maintenance costs.

6. Certified Safety – Meets ATEX and IECEx standards for hazardous areas.

7. Compact Design – Space-saving form factor for high-density installations.

Frequently Asked Questions (FAQ)

1. What is the input signal range of the ANB10D-415/CU2N?

   • It accepts a 4-20 mA analog input signal.

2. Is this module suitable for hazardous environments?

   • Yes, it is certified for use in hazardous areas (ATEX/IECEx).

3. What is the operating temperature range?

   • It operates between -20°C to +70°C.

4. How many channels does this module support?

   • It has 1 isolated channel.

5. What is the power supply requirement?

   • Typically 24 VDC, with a maximum power consumption of 1.2 W.

6. Does it support HART communication?

   • No, this model is a standard 4-20 mA input module without HART.

7. What are the dimensions and weight?

   • Dimensions: 45 mm x 130 mm x 110 mm; Weight: ~500 g.

8. Can it be used in high-vibration environments?

   • Yes, it is designed to withstand industrial vibrations.

9. Is calibration required periodically?

   • Yes, regular calibration is recommended for maintaining accuracy.

10. What certifications does this module have?

    • CE, ATEX, and IECEx (depending on the specific model).
