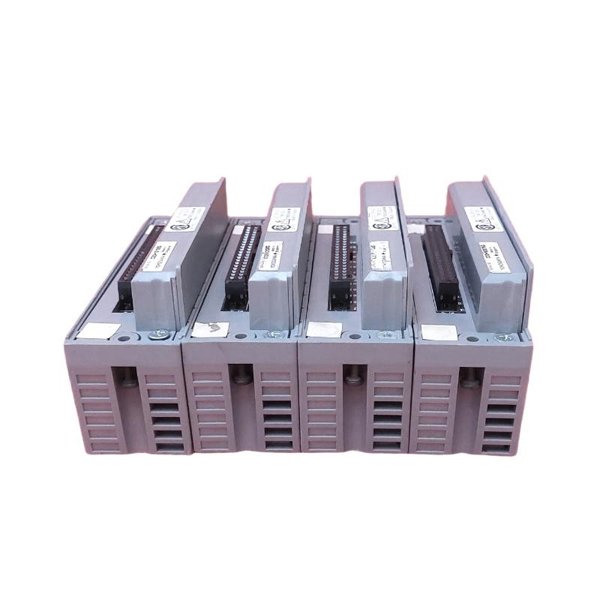

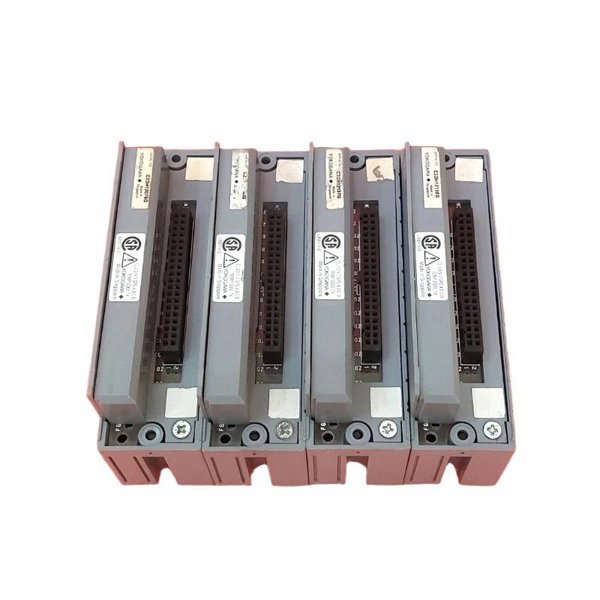

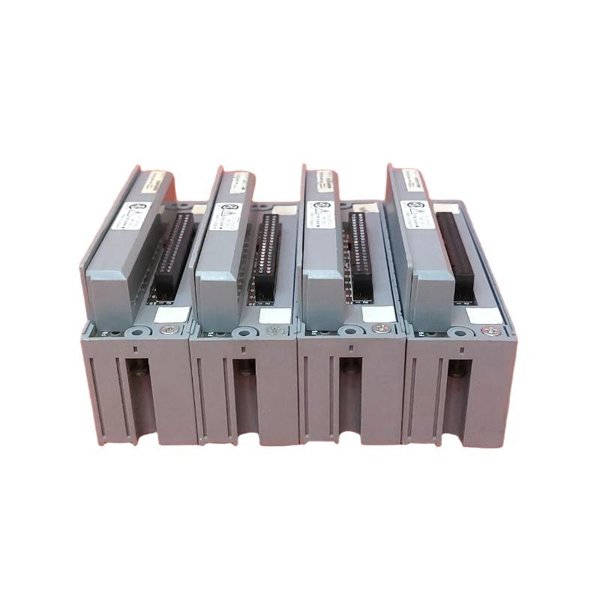

The Yokogawa ATI3S-001 Pressure Clamp Terminal Block is a robust and reliable wiring component designed for industrial automation and control systems. This terminal block provides secure electrical connections using a pressure clamp mechanism, ensuring stable performance in harsh environments. It is widely used in Yokogawa DCS systems and process control applications where reliable and vibration-resistant connections are essential.

The ATI3S-001 features a compact design, easy installation, and high durability, making it suitable for complex wiring systems in industries such as power generation, oil and gas, petrochemical, and water treatment. It is engineered to maintain consistent electrical contact under mechanical stress, temperature changes, and long-term operation.

Product Specifications

Applications

The ATI3S-001 terminal block is widely used in:

• Distributed Control Systems (DCS): Providing secure connections for I/O modules.

• Power Generation Plants: Reliable wiring in turbine and generator control systems.

• Oil & Gas Industry: Robust connections for instrumentation and process control systems.

• Petrochemical Plants: Secure wiring for hazardous environments.

• Water and Wastewater Treatment: Control panels and process automation wiring.

• Industrial Automation: Electrical distribution and signal transmission in control cabinets.

Advantages

• Secure Connection: Pressure clamp design ensures vibration-resistant and maintenance-free wiring.

• High Reliability: Maintains consistent contact pressure even under temperature fluctuations.

• Quick Installation: Tool-less connection reduces wiring time.

• Compact Design: Space-saving layout for high-density panels.

• Durability: Made from flame-retardant and anti-corrosive materials for harsh environments.

• Compatibility: Fully compatible with Yokogawa DCS and other industrial control systems.

• Safety Compliance: Meets IEC and UL safety standards for industrial applications.

FAQ

1. What is the rated voltage for the ATI3S-001 terminal block?

   The ATI3S-001 is rated for 250 V AC/DC, making it suitable for standard control and power distribution applications.

2. What is the maximum current supported by ATI3S-001?

   It can handle up to 10 A, which is adequate for most low-voltage industrial circuits when properly installed.

3. Which wire sizes are supported by this terminal block?

   Compatible wire sizes range from 0.5 mm² to 2.5 mm² (AWG 20–14), offering flexibility for common industrial wiring.

4. Is ATI3S-001 designed for DIN rail mounting?

   Yes, it supports standard DIN rail installation and can also be mounted on a panel for alternative setups.

5. What is the operating temperature range of ATI3S-001?

   The module can operate between -20°C and +70°C, making it suitable for most industrial environments.

6. What insulation material is used in ATI3S-001?

   It uses flame-retardant polymer insulation, ensuring safety and heat resistance in demanding applications.

7. Does ATI3S-001 offer electrical isolation?

   Yes, it provides up to 2.5 kV isolation, preventing short circuits and improving operational safety.

8. How resistant is it to vibrations?

   The terminal block meets IEC 60068 vibration standards, ensuring stable performance under mechanical stress.

9. What is the contact material used in ATI3S-001?

   It uses copper alloy with anti-corrosion coating, ensuring reliable conductivity and long service life.

10. Can ATI3S-001 be used in harsh environments?

    Yes, it is suitable for industrial sectors like oil & gas, petrochemicals, and power plants, even under tough conditions.
