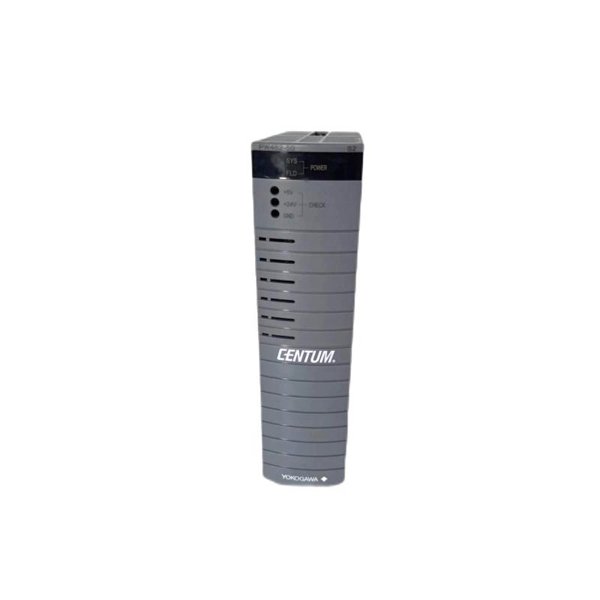

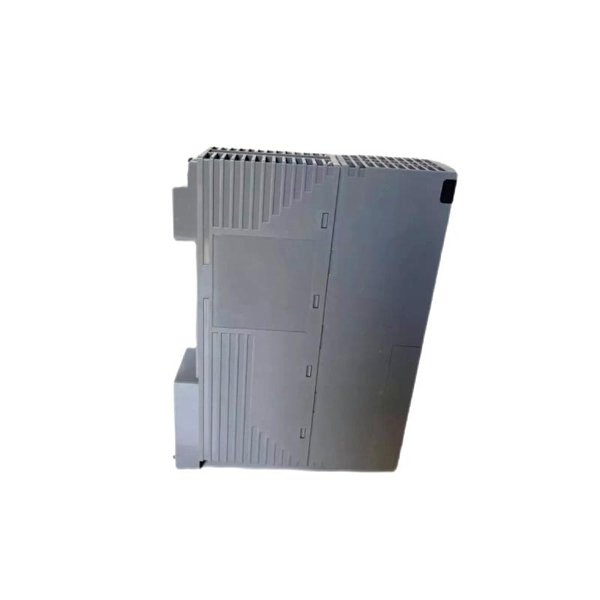

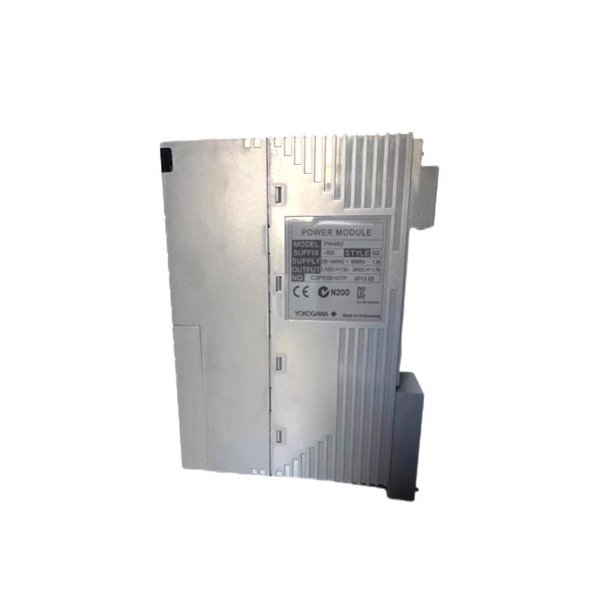

Manufacturer:Yokogawa
Product Number:PW482-50
Product Type:Power Supply Module
Origin:Japan
Dimensions:49.7 x 199.5 x 149 mm
Weight:1 kg
Views:46
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
The PW482-50 module is engineered to convert 220-240 V AC input into stable DC power, specifically tailored for Yokogawa’s automation equipment. Its robust design ensures uninterrupted operation, even in fluctuating power conditions, making it indispensable for critical industrial applications.
| Parameter | Specification |
| Input Voltage | 220-240 V AC ± 10% (50/60 Hz) |
| Input Power | 230 VA maximum |
| Output Voltage | 24 V DC ± 5% |
| Output Current | 5 A maximum |
| Output Power | 120 W maximum |
| Efficiency | 85% or greater at full load |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Weight | 1 kg |
| Dimensions (W x H x D) | 49.7 x 199.5 x 149 mm |
| Cooling | Natural convection (no fan) |
| Protection Features | Overload, overvoltage, and over-temperature protection |
| MTBF | 100,000 hours at 25°C (estimated) |
| Reliability | Designed for continuous operation in industrial environments |
| Connector Type | Exclusive Yokogawa connectors |
| Mounting Type | DIN Rail or Panel Mount |
| Certification | CE, UL, and other applicable international certifications |
The PW482-50 is integral to the following applications:
Process Control: Supplying power to I/O modules and transmitters, ensuring accurate data acquisition and control.
Data Acquisition Systems: Providing stable power to sensors and data collection devices, maintaining system integrity.
Automation Systems: Ensuring reliable operation of control units and communication modules in automated processes.
Reliable Power Conversion: Efficiently converts AC input to stable DC output, ensuring consistent performance of connected modules.
Compact Design: Its lightweight and space-saving form factor facilitate easy installation in various system configurations.
Exclusive Connectivity: Utilizes dedicated connectors for secure and stable connections within Yokogawa’s automation systems.
What is the input voltage range for the PW482-50 module?
The PW482-50 accepts an input voltage of 220~240 V AC ± 10% at 50/60 Hz ± 3 Hz.
What is the maximum power consumption of the PW482-50?
The module has a maximum power consumption of 230 VA.
What is the weight of the PW482-50 module?
The module weighs 1 kg.
What type of connector does the PW482-50 use?
It uses an exclusive connector designed for secure integration within Yokogawa’s systems.
Can the PW482-50 be used with equipment from other manufacturers?
The PW482-50 is specifically designed for use with Yokogawa’s FCU, FIO Node Unit, and Optical ESB Bus Repeater Unit, and is not intended for use with equipment from other manufacturers.
Is the PW482-50 module suitable for dual-redundant configurations?
Yes, two PW482-50 modules can be installed to configure a dual-redundant power supply system, enhancing reliability.
What is the operating temperature range of the PW482-50?
The module operates within the temperature range specified by its suffix codes, such as -20°C to 70°C for certain versions.
Does the PW482-50 have explosion protection?
The standard version (-5) does not have explosion protection. Versions with explosion protection are available with specific suffix codes.
Where can I purchase the PW482-50 module?
The PW482-50 is available through authorized Yokogawa distributors and resellers. For purchasing options, you can contact Yokogawa directly or visit their official website.
What warranty is provided with the PW482-50 module?
We provide one year warranty.
