Manufacturer:Yokogawa
Product Number:SB401-11
Product Type:ESB Bus Interface Slave Module
Origin:Japan
Dimensions:130 x 142.5 x 32.8mm
Weight:0.45 kg
Views:61
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

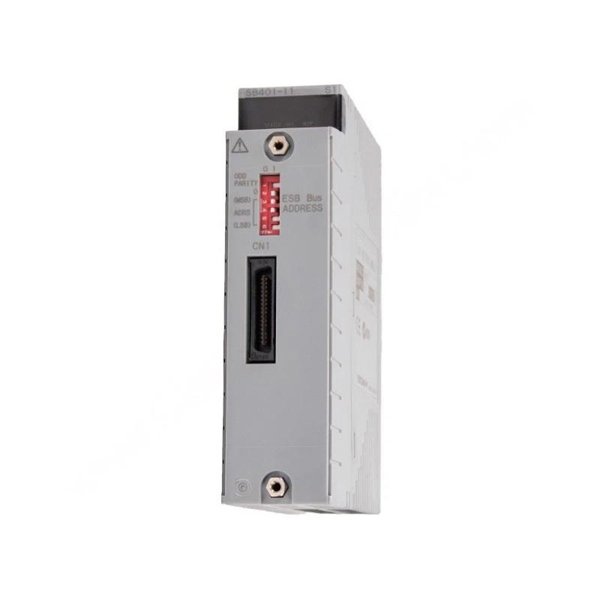

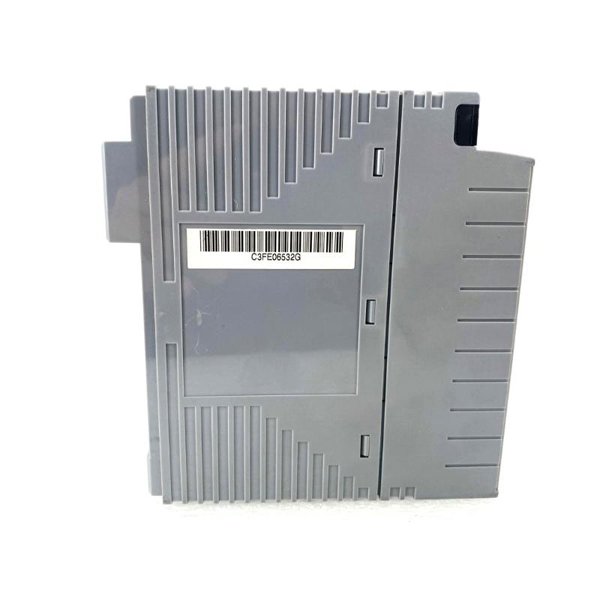

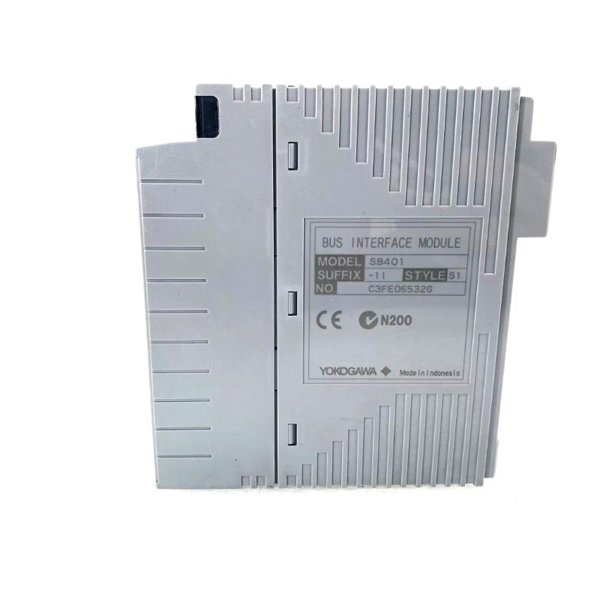

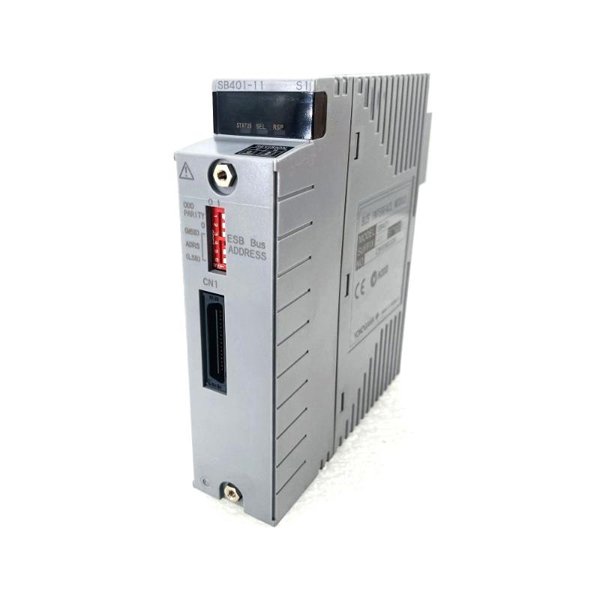

The Yokogawa SB401-11 is an ESB Bus Interface Slave Module designed for use in ESB bus node units such as ANB10S and ANB10D. It serves as the communication gateway between field I/O signals and a Field Control Unit (FCU) within Yokogawa’s CENTUM VP control system. The SB401-11 ensures stable data transmission across the ESB bus and plays a crucial role in both single and dual-redundant system architectures.
| Parameter | Description |
|---|---|
| Model | SB401-11 |
| Function | ESB Bus Interface Slave Module |
| System | FIO/N-IO with CENTUM VP |
| Power Supply | Supplied by system power modules (PW481/482/484) |
| Installation | Rack-mounted (within ANB10S/D Node Unit) |
| Operating Temperature | -20°C to +70°C (with G3 option) |
| Configuration | Supports dual-redundant setup |
| Dimensions (W x H x D) | 130 x 142.5 x 32.8 mm |
| Weight | 0.45 kg |
| Mounting | 19-inch rack, screws (M5 x 4) |
| Communication Bus | ESB Bus |
| Compliance | ISA G3, explosion-proof options available |
Integration of field I/O modules with Field Control Units
Industrial process automation (chemical, oil & gas, power plants)
Redundant system setups for high availability applications
Centralized control environments using Yokogawa CENTUM VP systems
High reliability in redundant configurations
Seamless integration with Yokogawa’s ESB node architecture
Supports explosion protection and wide temperature environments
Compact and lightweight design suitable for rack installation
Compatible with both analog and digital communication modules
Q1: What is the main function of the SB401-11 module?
A1: It acts as a slave interface between I/O modules and the FCU over the ESB bus.
Q2: Can SB401-11 be used in redundant systems?
A2: Yes, two SB401-11 modules are used for dual-redundant configurations.
Q3: Is the SB401-11 compatible with all Yokogawa node units?
A3: It is compatible with ANB10S and ANB10D node units.
Q4: What is the operating temperature range of the SB401-11?
A4: -20°C to +70°C, when used with the G3 environmental protection option.
Q5: How is SB401-11 mounted in the system?
A5: It is rack-mounted within the node unit using M5 screws.
Q6: Is the SB401-11 suitable for hazardous environments?
A6: Yes, versions with explosion protection are available.
Q7: How many I/O modules can be supported with the node that includes SB401-11?
A7: Up to 8 I/O modules per node.
Q8: What is the weight of the SB401-11 module?
A8: Approximately 0.45 kg.
Q9: Does the SB401-11 support optical ESB connections?
A9: It works with node units connected via optical ESB if equipped appropriately.
Q10: Is special software required for configuring the SB401-11?
A10: It requires compatible CENTUM VP system software, such as A2FV50 or A2FV70.
