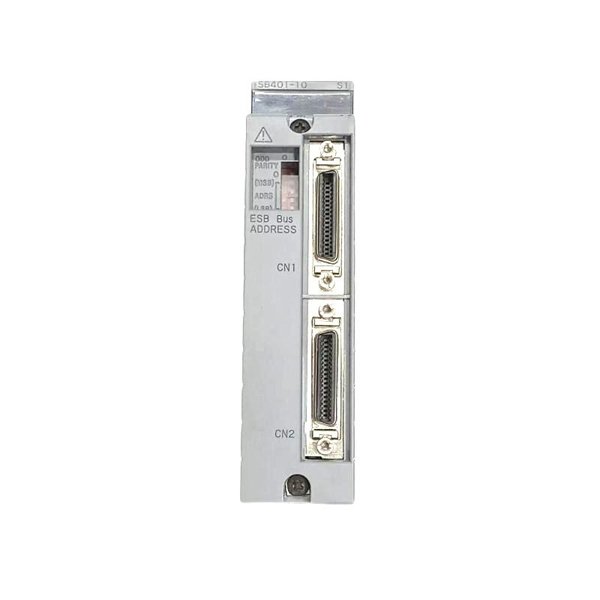

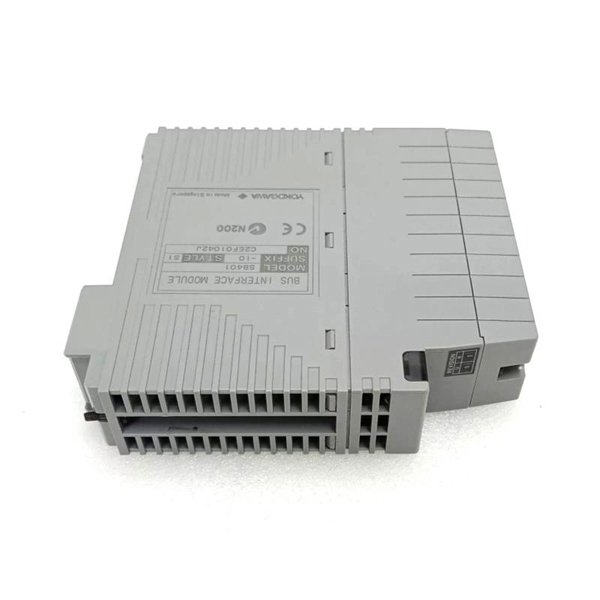

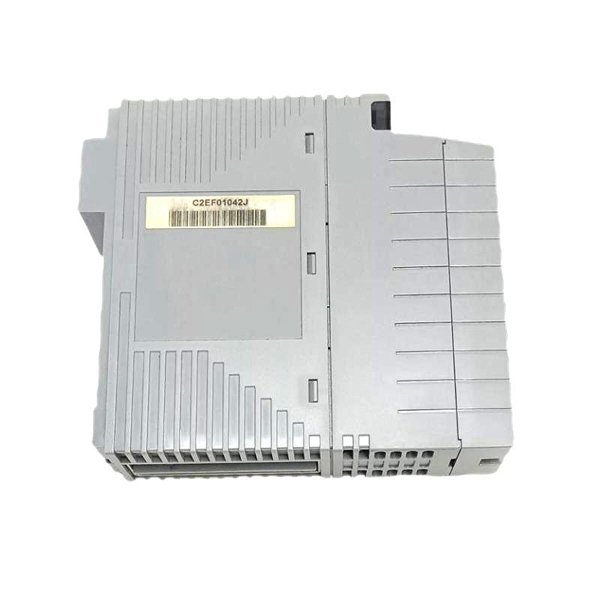

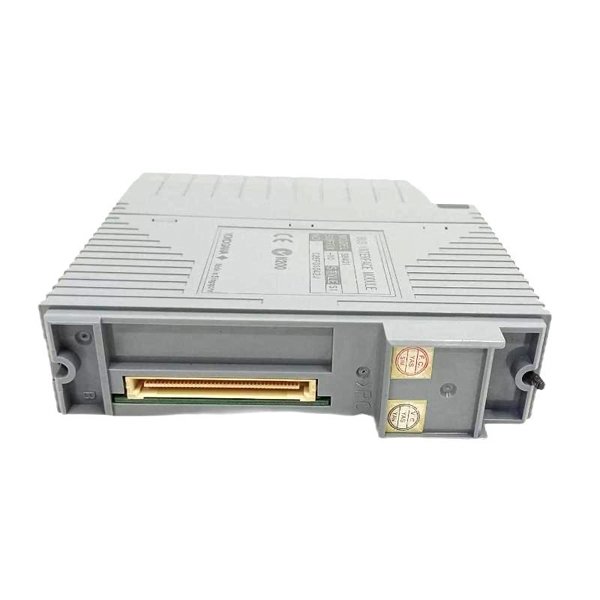

The Yokogawa SB401-10 is an ESB Bus Interface Slave Module used within the Field I/O (FIO) system architecture of Yokogawa’s CENTUM VP platform. It functions as a communication interface between the Field Control Unit (FCU) and the I/O modules through the ESB bus. It supports high-speed data transfer and reliable operation in both single and dual-redundant configurations. As part of the ESB Bus Node Unit (model ANB10S or ANB10D), the SB401 ensures efficient power and signal communication for analog and digital I/O modules.

Technical Specifications

Applications

• Industrial process automation

• Power generation control systems

• Oil and gas processing plants

• Petrochemical industries

• Pharmaceutical automation systems

• Chemical processing systems

Product Advantages

• High-speed and stable ESB bus communication

• Supports redundant configuration for high system reliability

• Compact design, suitable for 19-inch rack mounting

• Compatible with various I/O modules

• Suitable for use in harsh industrial environments with optional G3 coating

• Simplified maintenance with modular design

FAQ

Q1: What is the main function of the SB401-10 module?

A1: It acts as an ESB bus interface for communication between the Field Control Unit and I/O modules.

Q2: Can SB401-10 be used in redundant configurations?

A2: Yes, it supports dual-redundant configurations for increased system reliability.

Q3: Is the SB401-10 compatible with both ANB10S and ANB10D node units?

A3: Yes, it is compatible with both single and dual-redundant node unit models.

Q4: What is the weight of the SB401-10?

A4: The module weighs approximately 0.45 kg.

Q5: What are the supported power input options?

A5: The module draws power from the node unit, which supports 100–120V AC, 220–240V AC, or 24V DC.

Q6: What is the operating temperature range for this module?

A6: With the G3 option, it operates from -20°C to +70°C.

Q7: What rack size is the SB401-10 mounted on?

A7: It is mounted on a standard 19-inch rack.

Q8: How many I/O modules can be connected to a node with SB401-10?

A8: Up to 8 I/O modules can be installed per node unit.

Q9: Is the SB401-10 suitable for hazardous environments?

A9: Yes, explosion protection options are available when properly configured.

Q10: What type of bus is used for communication?

A10: The ESB bus is used for high-speed internal communication.
