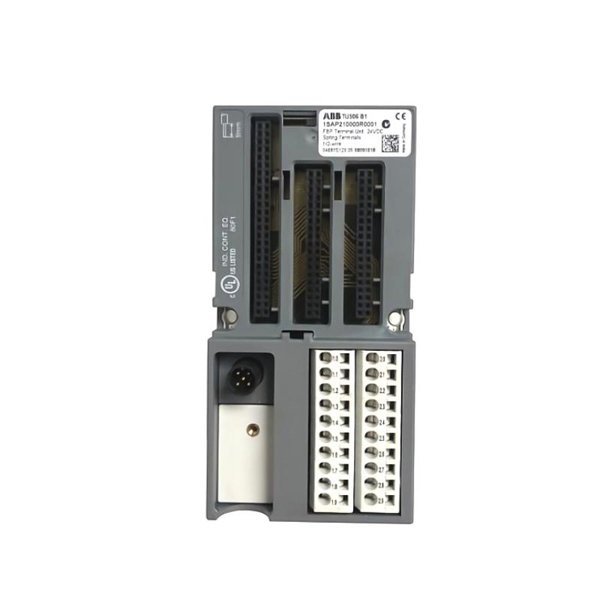

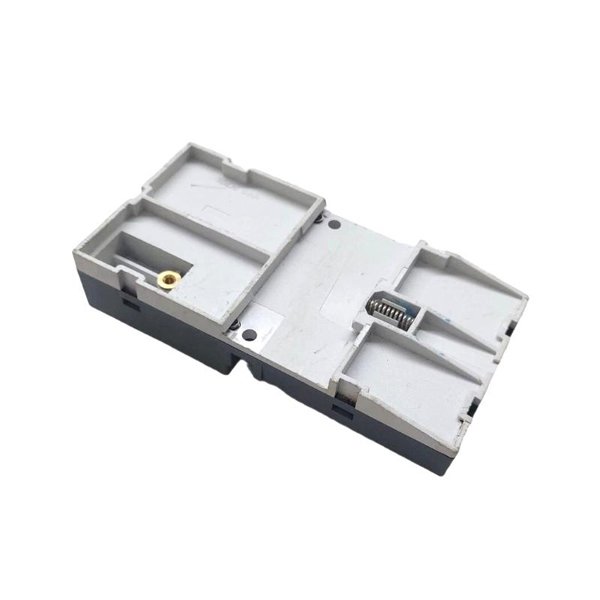

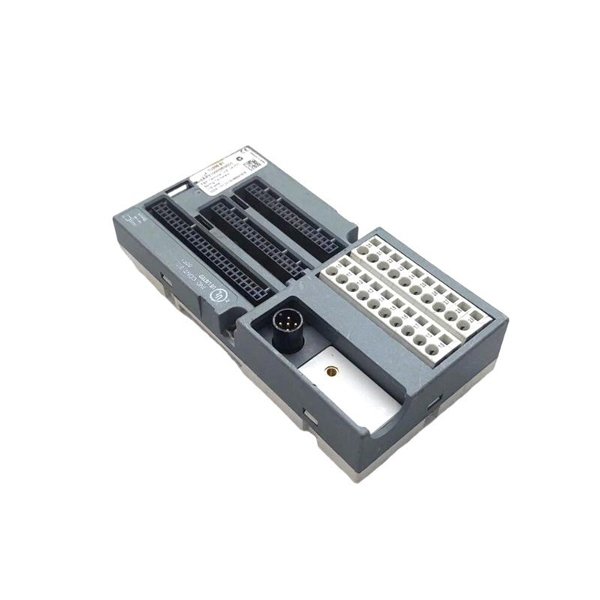

The ABB TU506 FBP Terminal Unit (Part No. 1SAP210000R0001) is a fieldbus plug (FBP) terminal unit used primarily with ABB’s decentralized I/O and automation systems. It acts as an interface between intelligent field devices and ABB’s AC500 or S500 I/O systems, supporting modular and flexible system architectures.

This terminal unit is designed to integrate with ABB’s FBP communication protocol, facilitating plug-and-play installation with distributed control modules via PROFIBUS, DeviceNet, and AS-Interface. It plays a vital role in simplifying wiring, reducing engineering time, and enabling fast commissioning in industrial automation systems.

Technical Specifications

Product Applications

The ABB TU506 Terminal Unit is widely adopted in industrial control scenarios that require distributed architecture and fast bus communication:

• Manufacturing Automation

  Interfaces with decentralized I/O stations to simplify field wiring and bus integration.

• Material Handling Systems

  Enables remote I/O communication for conveyor belts, sorters, and automated palletizers.

• Packaging Machinery

  Connects modular control units with central controllers through PROFIBUS or DeviceNet.

• Water and Wastewater Control

  Used in distributed pump and valve stations connected via fieldbus to the central PLC.

• Process Control Systems

  Ensures clean bus termination and modular expansion in distributed instrumentation setups.

• Robotics and Assembly Lines

  Allows integration of robot controllers and actuators with fieldbus-enabled PLCs.

Product Advantages

• Modular and Scalable

  Designed to work with ABB’s plug-and-play architecture, allowing fast system expansion.

• Supports Multiple Protocols

  Compatible with major fieldbus standards through interchangeable FBP modules.

• Efficient Wiring Design

  Reduces complex cabling by acting as a standardized field-level interface.

• Tool-Free Installation

  Easy DIN rail mounting and snap-on connection minimize setup time.

• LED Diagnostics

  Built-in LED indicators help identify connection and communication issues instantly.

• Robust and Compact

  Compact IP20-rated enclosure fits in crowded panels and harsh industrial environments.

Frequently Asked Questions (FAQ)

1. What does the ABB TU506 terminal unit do?

   It serves as an interface between a fieldbus plug (FBP) and ABB distributed I/O modules.

2. Is it compatible with all ABB PLCs?

   It is primarily designed for AC500 and S500 I/O systems, but can integrate with any FBP-compatible system.

3. Can TU506 be used with different fieldbus types?

   Yes, it supports various protocols like PROFIBUS, DeviceNet, and AS-Interface via swappable FBP modules.

4. Does the TU506 require external power?

   No external power is required—power is drawn from the I/O system or FBP communication plug.

5. Is it DIN-rail mountable?

   Yes, it features DIN rail clips for quick and secure mounting.

6. Does this unit support diagnostic LEDs?

   Yes, most FBP modules connected to TU506 provide LED indicators for communication status and power.

7. Is this module suitable for outdoor use?

   Not directly. It requires protection in a control cabinet or IP-rated enclosure for outdoor applications.

8. Can it be used in safety-critical applications?

   While TU506 itself isn’t a safety module, it can be used in systems with safety-rated FBP modules and I/O.

9. What’s the difference between TU506 and TU515?

   TU506 is for FBP fieldbus use, whereas TU515 typically connects directly to CPU base units without FBP.

10. How long is the typical installation time?

    Under standard conditions, installation takes less than 5 minutes with no special tools needed.
