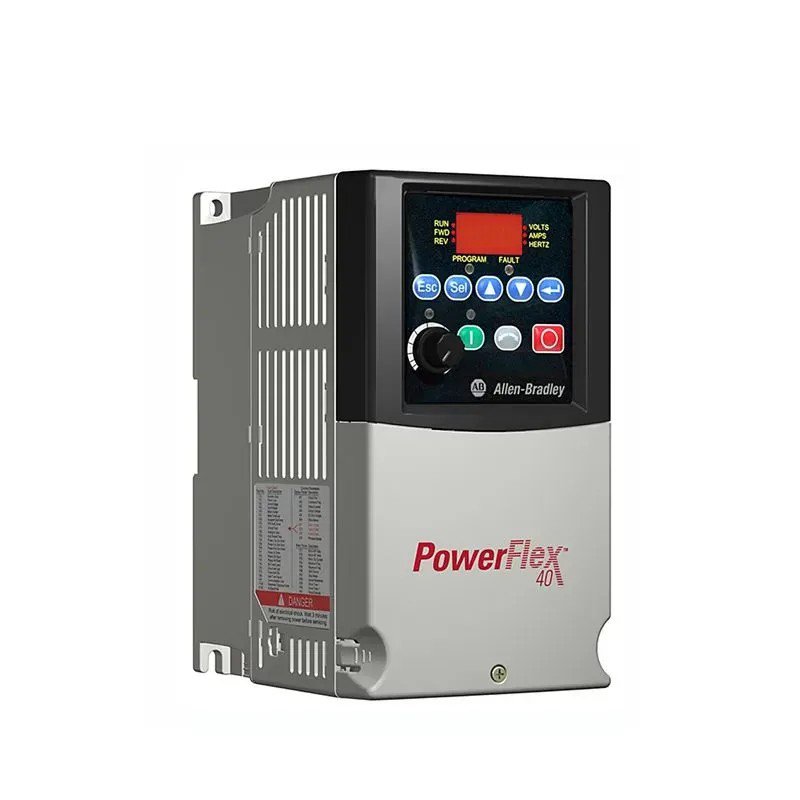

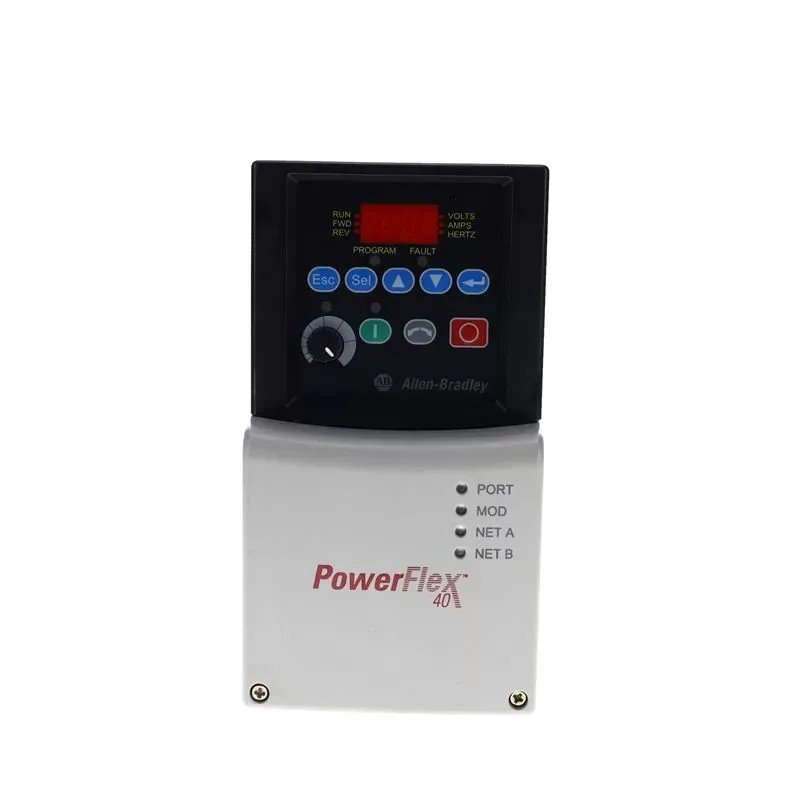

Allen-Bradley 22B-D4P0N104 AC Drive

The Allen-Bradley 22B-D4P0N104 is a compact and versatile AC drive from the PowerFlex 40 series. It is designed for a wide range of industrial applications and delivers reliable performance with easy integration into automation systems.

Key Features

• Compact Design: The drive has a small footprint, making it ideal for space-constrained installations.
• Versatile Performance: It is suitable for various motor types and loads.
• Easy Configuration: The user-friendly interface allows for quick setup.
• Built-in Safety Features: These features enhance system reliability and protect personnel.
• Communication Options: The drive supports various communication protocols for seamless integration.

Technical Specifications

• Voltage: 480V AC
• Current: 4 Amps
• Power: 1.5 kW (2 HP)
• Frequency: 48-63 Hz
• Frame Size: B
• Enclosure: IP20 (Open)
• Display: LED
• Keypad: Digital
• Filter: No CE Compliant Filter
• Communication: RS485

Applications

The 22B-D4P0N104 is commonly used in:

• Conveyor Systems: It controls the speed and direction of conveyors.
• Pumps: It regulates the flow rate of liquids.
• Fans: It adjusts airflow for ventilation or cooling.
• Material Handling: It automates material movement.

Benefits

• Improved Efficiency: Precise motor control reduces energy consumption.
• Enhanced Productivity: Faster setup and easier operation increase output.
• Increased Reliability: Built-in safety features protect the drive and equipment.
