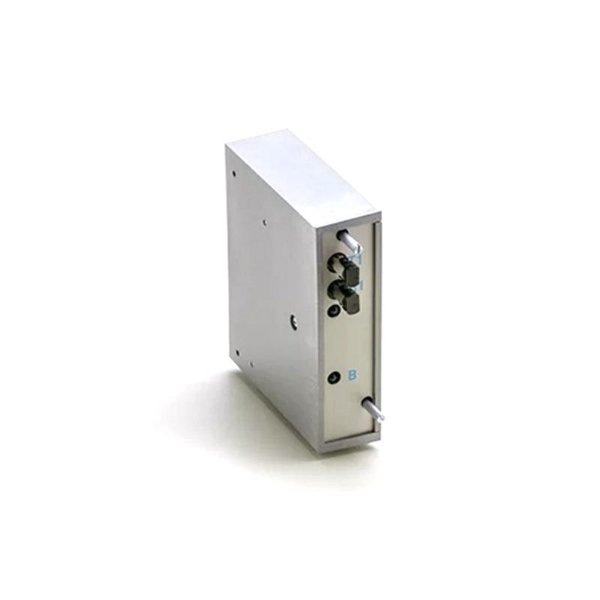

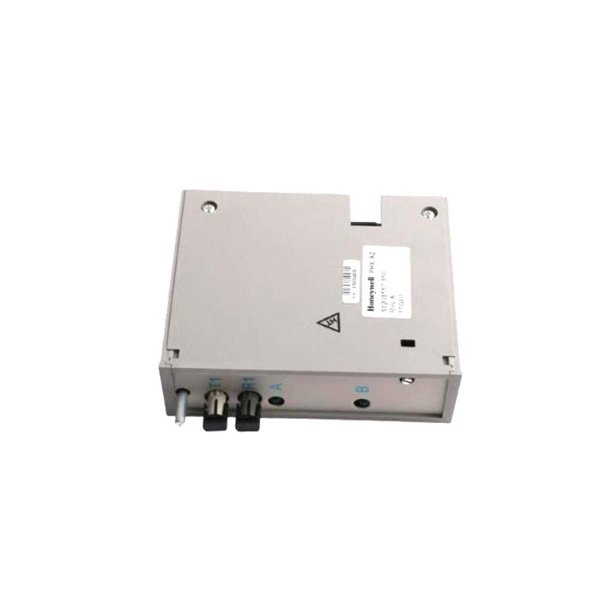

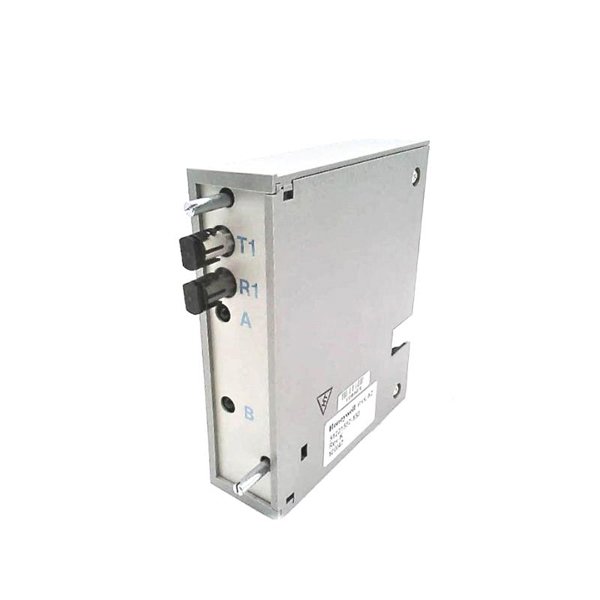

The Honeywell 51201557-150 Fiber Optic Coupler Module is a standard I/O Link Extender Coupler designed to facilitate the extension of I/O links within industrial automation systems. By leveraging fiber optic technology, this module ensures high-speed, reliable, and interference-resistant communication between local and remote I/O processing units. It is particularly beneficial in environments where electrical noise and long-distance signal transmission pose challenges.

This module is engineered to provide attachment for one fiber optic set of cables at the local card file, with a corresponding coupler module terminating a single optic cable at the remote I/O processing card file. This setup supports full-duplex communication, allowing simultaneous transmission and reception of data, which is crucial for real-time monitoring and control applications.

The 51201557-150 module is conformal coated, enhancing its durability and resistance to environmental factors such as humidity and dust, thereby ensuring consistent performance in harsh industrial settings.

Product Specifications

Applications

The Honeywell 51201557-150 Fiber Optic Coupler Module is utilized across various industries to enhance communication between control systems and field devices. Key applications include:

• Industrial Automation: Facilitates seamless integration of field devices with Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC), enabling accurate monitoring and control of machinery and processes.

• Manufacturing Plants: Extends I/O links over long distances within large manufacturing facilities, ensuring reliable data transmission between central control rooms and remote production lines.

• Oil and Gas Industry: Supports communication between control systems and field instruments in expansive oil refineries or offshore platforms, where long-distance and interference-free signal transmission is critical.

• Power Generation: Enables reliable data exchange between control systems and equipment in power plants, ensuring efficient operation and monitoring of turbines, generators, and other critical components.

• Chemical Processing: Assists in maintaining precise control over complex chemical processes by providing robust communication links between sensors, actuators, and control systems.

• Water and Wastewater Treatment: Ensures effective monitoring and control of treatment processes by facilitating communication between remote sensors and central control units.

• Transportation Systems: Supports data transmission in automated transportation systems, such as conveyor belts and automated guided vehicles, by linking control units with remote sensors and actuators.

• Pharmaceutical Industry: Maintains stringent control over manufacturing processes by enabling reliable communication between control systems and production equipment in compliance with regulatory standards.

Advantages

• High-Speed Data Transmission: Utilizes fiber optic technology to provide rapid and reliable communication between local and remote I/O units, essential for real-time control and monitoring applications.

• Immunity to Electromagnetic Interference (EMI): Fiber optic communication is inherently resistant to EMI, making the module suitable for environments with high electrical noise.

• Long-Distance Communication: Capable of extending I/O links over considerable distances without signal degradation, facilitating effective control of remote equipment and processes.

• Compact and Lightweight Design: With dimensions of 30 x 110 x 112 mm and a weight of 0.181 kg, the module is easy to install and integrates seamlessly into existing control systems without requiring significant space.

• Conformal Coating: Enhances durability by protecting the module against environmental factors such as moisture, dust, and chemicals, ensuring reliable operation in harsh industrial settings.

• Flexible Configuration: Supports attachment of up to three fiber optic cables at the local card file, allowing for scalable and adaptable system designs to meet varying communication needs.

• Full-Duplex Communication: Enables simultaneous transmission and reception of data, improving the efficiency and responsiveness of control systems.

• Standardized Connectors: Equipped with ST-type connectors, facilitating easy and secure connections with standard fiber optic cables.

• Seamless Integration: Designed to be compatible with Honeywell’s automation systems, ensuring straightforward integration and interoperability with existing equipment.

• Enhanced System Reliability: By providing robust and reliable communication links, the module contributes to the overall reliability and uptime of industrial automation systems.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the Honeywell 51201557-150 Fiber Optic Coupler Module?

   The module extends I/O communication links using fiber optic technology, allowing reliable and high-speed data transmission over long distances.

2. What type of fiber optic connectors does this module use?

   It uses ST-type connectors, which are standard for fiber optic communication and provide secure and efficient connections.

3. Is this module compatible with all Honeywell automation systems?

   It is designed to integrate seamlessly with Honeywell’s industrial automation systems but should be verified for compatibility with specific models before installation.

4. Can this module be used in environments with high electromagnetic interference (EMI)?

   Yes, fiber optic communication is immune to EMI, making it suitable for noisy industrial environments such as manufacturing plants and power stations.

5. What is the maximum number of fiber optic cables supported by the module?

   The module supports up to three fiber optic cables at the local card file, allowing for flexible system expansion.

6. What are the physical dimensions and weight of the Honeywell 51201557-150?

   It measures 30 x 110 x 112 mm and weighs 0.181 kg, making it compact and easy to install.

7. What kind of environments is this module best suited for?

   It is ideal for industrial automation, oil and gas refineries, power plants, chemical processing, and large manufacturing facilities where long-distance, interference-free communication is essential.

8. Does the module require an external power source?

   No, it typically derives power from the host system, ensuring easy integration into existing control setups.

9. What makes this module more durable than other fiber optic couplers?

   The module features a conformal coating, which protects it from moisture, dust, and chemical exposure, ensuring durability in harsh environments.

10. Can this module support real-time communication in industrial control systems?

    Yes, it enables full-duplex communication, allowing simultaneous data transmission and reception, which is critical for real-time monitoring and control applications.
