Manufacturer:Honeywell
Product Number:900A16-0101 50008235-001
Product Type:High Level Analog Input Module
Origin:USA
Dimensions:33 × 330 × 130 mm
Weight:0.259 kg
Views:63
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

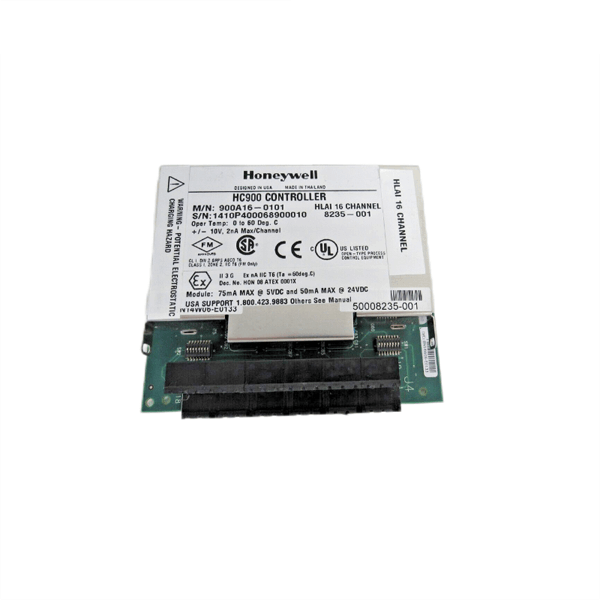

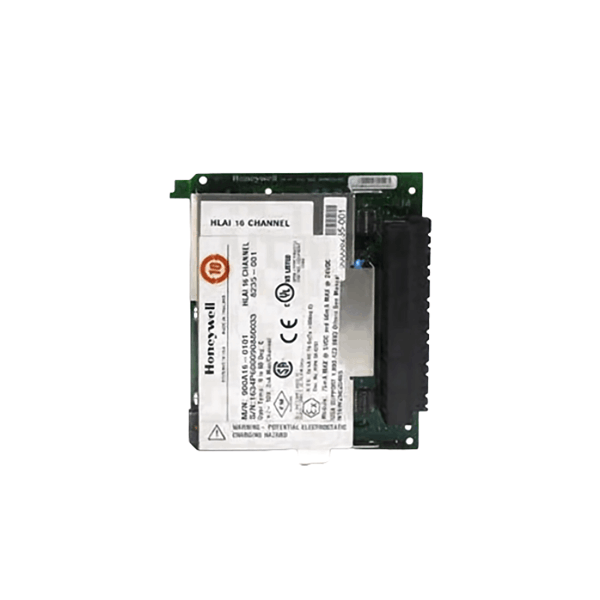

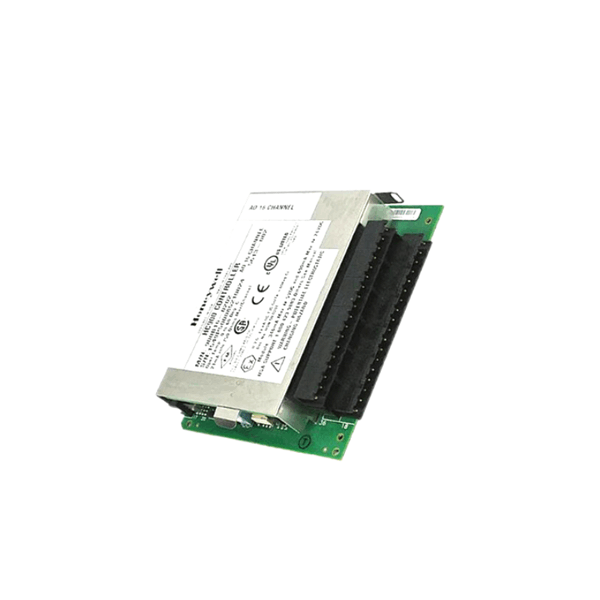

The Honeywell 900A16-0101 (part number 50008235-001) is a high-performance High-Level Analog Input (HLAI) Module designed for Honeywell’s C300 process controllers within the Experion Process Knowledge System (PKS) architecture. This module plays a vital role in enabling precise data acquisition from a wide range of analog field devices such as transmitters, sensors, and instrumentation that generate standard analog voltage or current signals.
Engineered for use in demanding industrial control environments, the 900A16-0101 provides robust signal conditioning, accurate input conversion, and seamless integration with Honeywell’s redundant control infrastructure. With 16 input channels, high resolution, and diagnostics capabilities, it ensures accurate, real-time data acquisition essential for plant performance, efficiency, and safety.
| Parameter | Specification |
|---|---|
| Product Name | Honeywell 900A16-0101 High Level Analog Input Module |
| Part Number | 50008235-001 |
| Signal Type | Analog Input (Voltage/Current – High Level) |
| Number of Channels | 16 |
| Signal Ranges Supported | 0–10V, 1–5V, 0–20mA, 4–20mA |
| Input Impedance | > 1 MΩ (voltage), 250 Ω (current) |
| Resolution | 16-bit |
| Input Isolation | Channel-to-channel and channel-to-system isolation |
| Accuracy | ±0.05% of full scale |
| Update Rate | 10 ms per channel |
| Redundancy Support | Fully supported when used in a redundant C300 configuration |
| Module Diagnostics | Signal loss detection, out-of-range alerts, hardware fault warnings |
| Mounting Type | I/O rack mount (compatible with Series 900 chassis) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Certifications | CE, UL, CSA, FM, RoHS |
| Dimensions (W × H × D) | 33 × 330 × 130 mm |
| Weight | 0.259 kg |
The Honeywell 900A16-0101 module is commonly deployed in:
Petrochemical & Oil Refining Plants
Power Generation Facilities
Pharmaceutical Manufacturing Units
Water Treatment and Distribution Systems
Food and Beverage Production Lines
Pulp and Paper Mills
Metals and Mining Processing Plants
Multi-Channel Versatility
Equipped with 16 independent analog input channels, it maximizes I/O density without increasing cabinet footprint.
High Precision and Resolution
The 16-bit resolution and ±0.05% accuracy provide exceptional signal fidelity, essential for sensitive control processes.
Robust Diagnostic Capabilities
Early fault detection minimizes downtime by alerting operators to signal loss, wiring faults, or hardware issues.
Scalable Integration
Compatible with Honeywell’s modular C300 I/O infrastructure, allowing system growth without rewiring or redesign.
Wide Signal Support
Handles both voltage and current signals, giving flexibility to adapt to different instrument standards in the field.
Electrical Isolation
Reduces noise, ground loops, and cross-channel interference, improving measurement reliability and safety.
Industrial Durability
Built for harsh industrial conditions with strong environmental ratings and long life expectancy.
What is the main function of the 900A16-0101 module?
It acquires and converts high-level analog signals from field instruments into digital values for control systems.
How many input channels does the module have?
It supports 16 independent analog input channels.
What types of analog signals are supported?
Standard 0–10V, 1–5V, 0–20mA, and 4–20mA signals are supported.
Is the module hot-swappable?
No, the system should be powered down before module replacement to avoid signal disturbance.
Can it be used in safety instrumented systems (SIS)?
Not directly—it is intended for process control. Consult Honeywell for SIS-rated modules.
What is the typical resolution?
It features 16-bit resolution for accurate signal conversion.
Does it support redundancy?
Yes, it is fully supported in redundant Honeywell C300 control architectures.
Are there built-in diagnostics?
Yes, it includes diagnostics for wiring faults, signal loss, and overrange detection.
Is it suitable for use in hazardous locations?
It complies with industrial certifications but should be housed in an appropriate enclosure for hazardous areas.
Is configuration done through Experion PKS?
Yes, configuration and calibration are performed through Honeywell’s Experion system tools.
