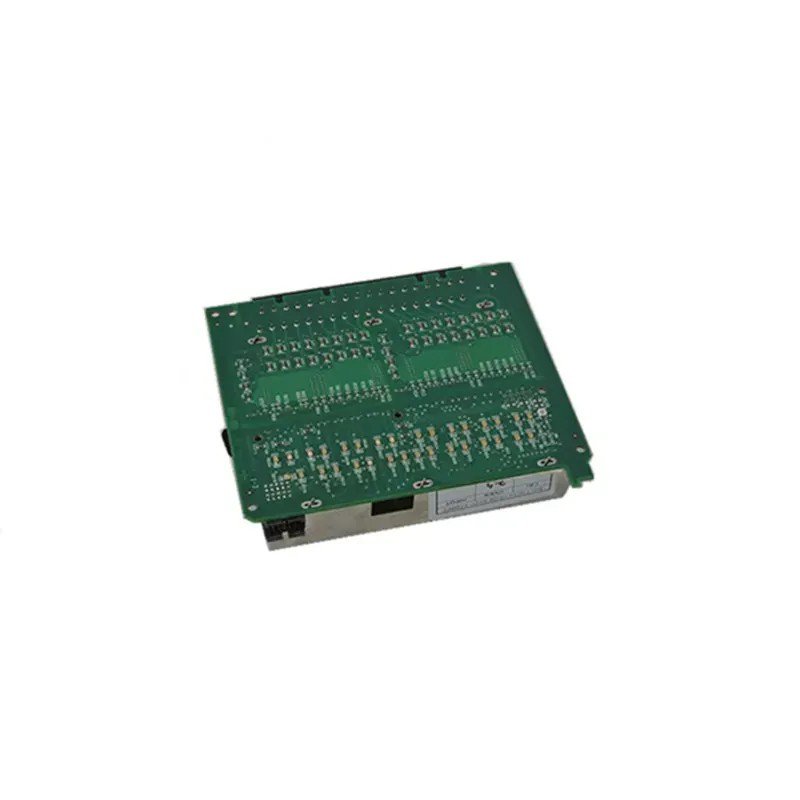

Honeywell 900H32-0102 Digital Output Module

Honeywell 900H32-0102 is a 32-channel digital output module for the ControlEdge HC900 process controller. It is designed for use in a variety of industrial applications, such as building automation, HVAC, and process control.

Here are some of the key technical specifications of the 900H32-0102:

• Number of channels: 32
• Output type: Sourcing, high side
• Output voltage: 24 VDC
• Output current: 2 A per channel
• Operating temperature range: -40°F to 158°F (-40°C to 70°C)
• Storage temperature range: -40°F to 185°F (-40°C to 85°C)
• Humidity range: 0% to 95% RH, non-condensing
• Dimensions (L x W x H): 3.94″ x 2.76″ x 1.57″ (100 x 70 x 40 mm)
• Weight: 6 oz (170 g)
• Certifications: UL Listed, CSA Certified
• Communication protocols: BACnet MS/TP, Modbus RTU

The 900H32-0102 is also equipped with a number of features that make it suitable for use in demanding industrial applications, such as:

• Short-circuit protection: Each output channel is protected against short circuits.
• Open-load detection: Each output channel can detect open loads.
• Status LEDs: The module provides LEDs to indicate the status of each output channel.
