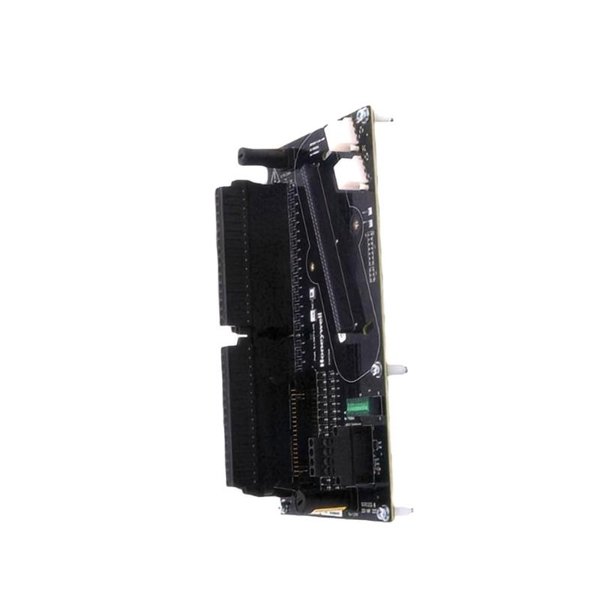

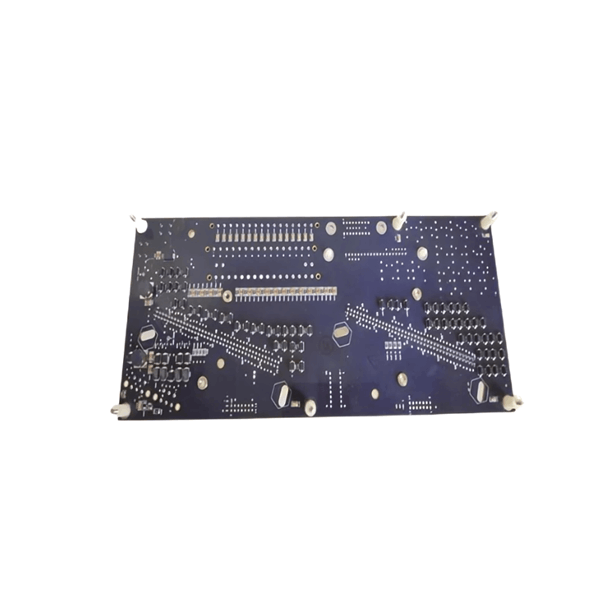

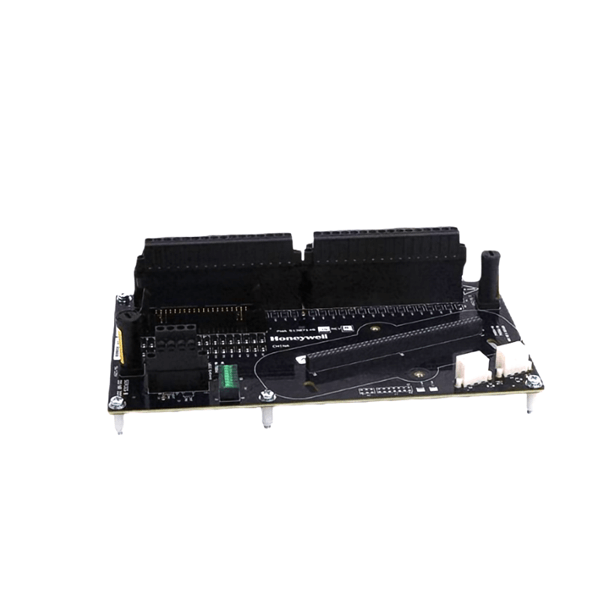

The Honeywell 8C-TAIDB1 51307133-175 is an analog input module designed for industrial automation systems. It is part of Honeywell’s Series 8 I/O family and is commonly used within the Experion PKS system. This module is engineered to interface with various analog signals, including thermocouple temperature sensors, providing reliable analog signal processing in industrial applications.

Technical Specifications

Applications

The Honeywell 8C-TAIDB1 module is suitable for a wide range of industrial applications, including:

• Chemical processing

• Oil and gas refineries

• Power generation

• Pharmaceutical manufacturing

• Food and beverage processing

Advantages

• High Accuracy: Provides precise analog signal measurements with 16-bit resolution.

• Flexible Configuration: Supports both single-ended and differential inputs, accommodating various sensor types.

• Robust Design: Operates reliably in harsh industrial environments with an IP65 enclosure rating.

• Self-Diagnostics: Features extensive self-diagnostic capabilities to ensure continuous operation.

• Redundancy Support: Offers optional redundancy for enhanced system reliability.

Frequently Asked Questions (FAQs)

1. What types of signals can the 8C-TAIDB1 module accept?

   The module can accept 0-10 V or 4-20 mA analog signals, supporting both single-ended and differential inputs.

2. Is the module compatible with HART protocol?

   Yes, the 8C-TAIDB1 module is HART-capable, allowing for communication with HART-enabled devices.

3. What is the operating temperature range of the module?

   The module operates within a temperature range of 0 to 60°C.

4. Does the module support hot-swapping?

   Yes, the module supports removal and insertion under power, facilitating maintenance without system downtime.

5. What is the resolution of the analog-to-digital converter?

   The module features a 16-bit A/D converter for high-resolution signal processing.

6. What certifications does the module have?

   The module is certified for CE and Class I Division 2, Group A, B, C, D; T4 hazardous locations.

7. Can the module be used in redundant configurations?

   Yes, the module offers optional redundancy to enhance system reliability.

8. What is the weight of the module?

   The module weighs 0.42 kg.

9. What is the enclosure rating of the module?

   The module has an IP65 enclosure rating, providing protection against dust and water ingress.

10. Is the module compatible with Honeywell’s Experion PKS system?

    Yes, the 8C-TAIDB1 module is designed for integration with Honeywell’s Experion PKS system.
