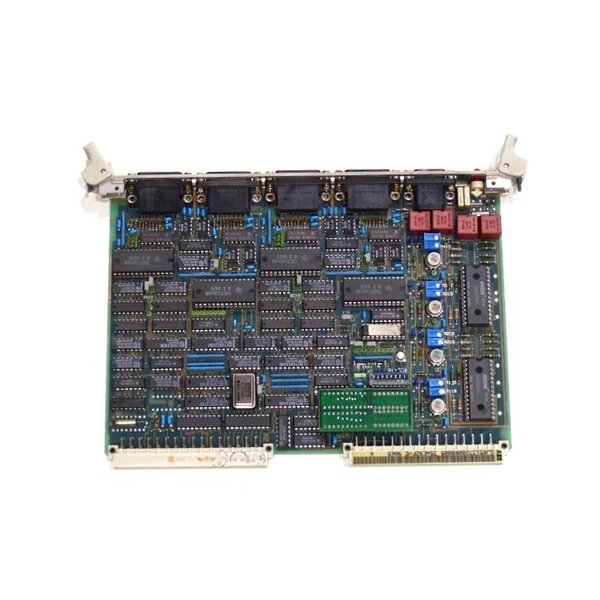

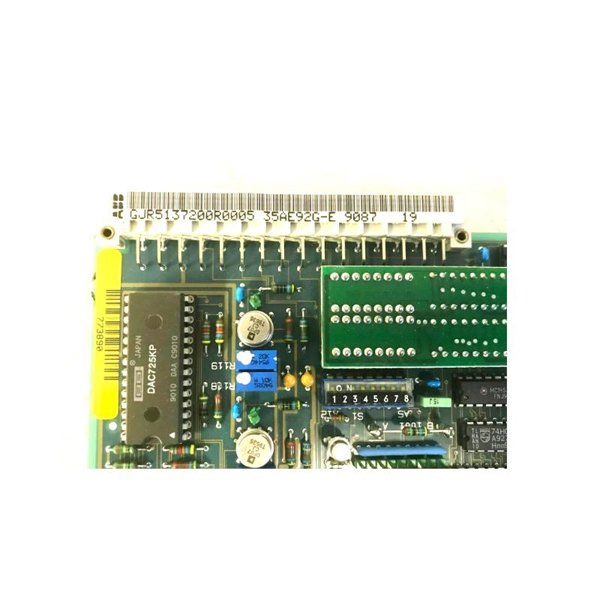

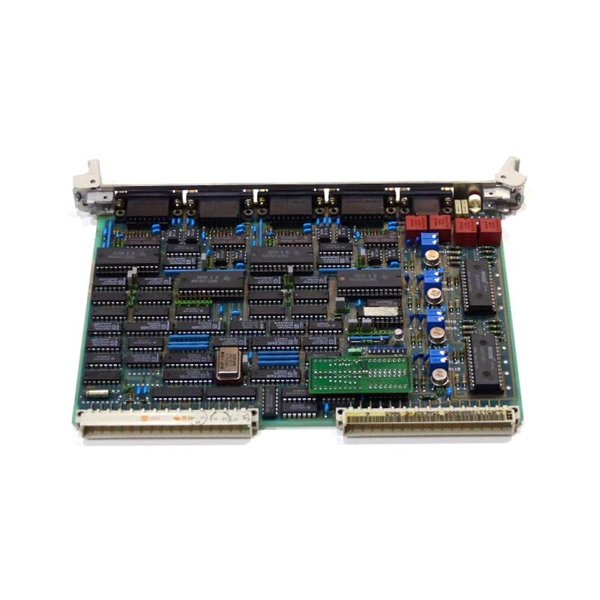

The ABB 35AE92F-E GJR5137200R0005 is a high-performance 4-channel axis module engineered for precise motion control in industrial automation systems. This module is designed to manage and synchronize up to four axes of motion, ensuring accurate and efficient operation across various applications. Its compact and lightweight design facilitates seamless integration into existing control systems, making it a versatile solution for complex automation tasks. ​

Product Specifications

Applications

The ABB 35AE92F-E module is suitable for a wide range of industrial applications, including:​

• Robotics: Provides precise control over robotic movements, enhancing accuracy and efficiency in automated tasks.​

• CNC Machinery: Ensures accurate positioning and synchronization of multiple axes in computer numerical control machines.​

• Material Handling Systems: Manages conveyor belts and sorting mechanisms, optimizing the flow of materials in manufacturing and distribution environments.​

• Printing and Packaging Equipment: Controls the movement of print heads and packaging components, ensuring consistency and quality in production lines.​

Advantages

The ABB 35AE92F-E module offers several key benefits:​

1. High Accuracy and Repeatability: Delivers precise motion control, reducing errors and improving product quality.​

2. Fast Response Times: Enhances system performance by minimizing delays in motion commands.​

3. Easy Integration: Seamlessly connects with other ABB products, simplifying system design and implementation.​

4. Compact Design: Its small footprint allows for flexible installation in space-constrained environments.​

5. Reliable Performance: Engineered for durability, ensuring consistent operation in demanding industrial settings.​

FAQ

1. What is the primary function of the ABB 35AE92F-E module?

   • It controls and synchronizes up to four axes of motion in industrial automation systems.​

2. What input voltage does the module require?

   • The module operates on a 24V DC power supply.​

3. Is the module compatible with other ABB products?

   • Yes, it integrates seamlessly with ABB drives and inverters.​

4. What are the dimensions and weight of the module?

   • The module measures 120 x 60 x 30 mm and weighs 0.35 kg.​

5. In which industrial applications can this module be used?

   • It is suitable for robotics, CNC machinery, material handling systems, and printing and packaging equipment.​

6. What are the key advantages of using this module?

   • High accuracy, fast response times, easy integration, compact design, and reliable performance.​

7. Does the module support real-time motion control?

   • Yes, it is designed for real-time control of multiple motion axes.​

8. Can the module be used in harsh industrial environments?

   • Yes, it is built to operate reliably in demanding conditions.​

9. Is technical support available for this module?

   • Yes, provides comprehensive support and documentation for their products.​

10. What are the key features of the ABB 35AE92F-E module?

    • Key features include high accuracy and repeatability, fast response times, easy integration, and a compact, lightweight design.​
