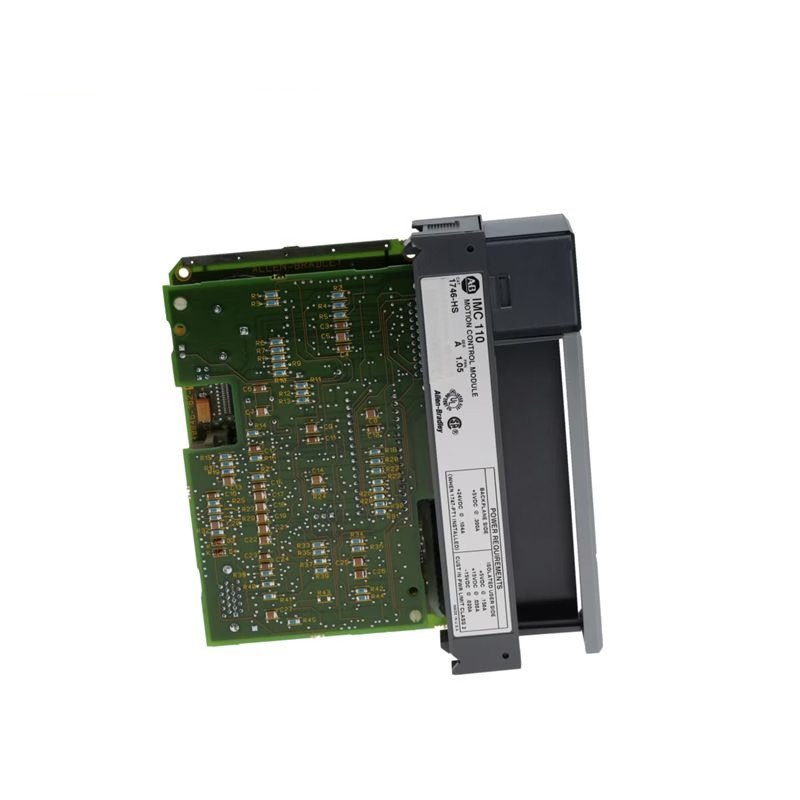

Allen-Bradley 1746-HS Motion Control Module

The Allen-Bradley 1746-HS is an IMC 110 Motion Control Module designed for use with the SLC 500 system. It provides both 24V DC inputs and outputs, allowing for precise control over motion tasks. This module features a fast update time of 4.8 milliseconds and a high input frequency of 300 kHz, making it suitable for applications that require rapid motion control. It also utilizes a step response of 100 milliseconds for input and 2.5 milliseconds for output. This module is installed in one slot of the SLC 500 chassis and is compatible with all SLC processors, except the SLC 5/01 and SLC 5/02.

Technical Specifications

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 1746-HS
• Series: SLC 500
• Module Type: IMC 110 Motion Control System
• Inputs: 24 Volts DC
• Outputs: 24 Volts DC
• Input Frequency: 300 kHz
• Backplane Current (5 Volts): 300 mA
• Backplane Current (24 Volts): 104 mA
• Update Time: 4.8 milliseconds
• Slots: 1
• Step Response:
  • Input: 100 milliseconds
  • Output: 2.5 milliseconds
• Power Consumption:
  • 5 VDC: 0.300 A
  • 24 VDC: 0.104 A
• Isolated User Side:
  • 5 VDC: 0.150 A
  • 15 VDC: 0.030 A
  • 15 VDC: 0.20 A
• Operating Temperature: 0°C to 60°C
• Operating Shock: 30 g
• Weight: 0.31 lbs
