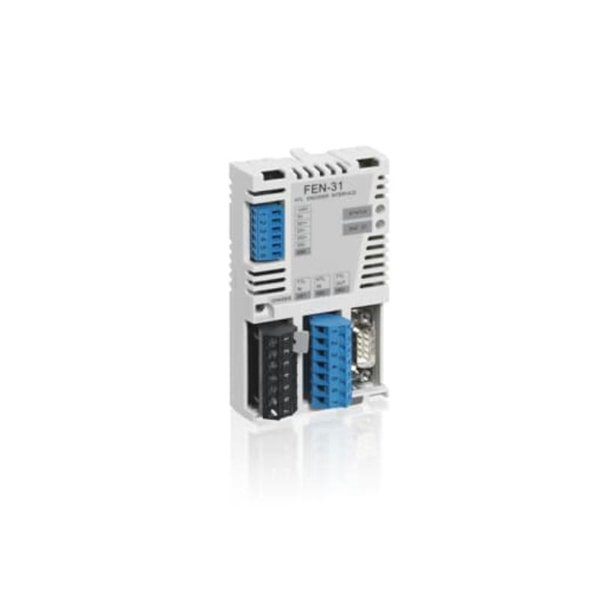

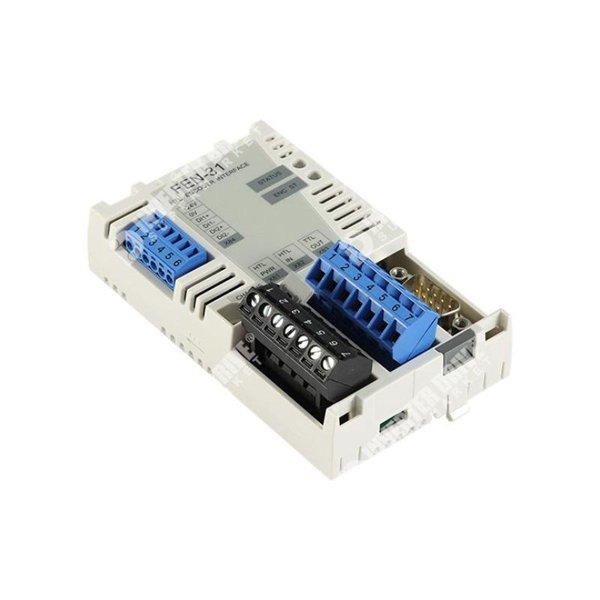

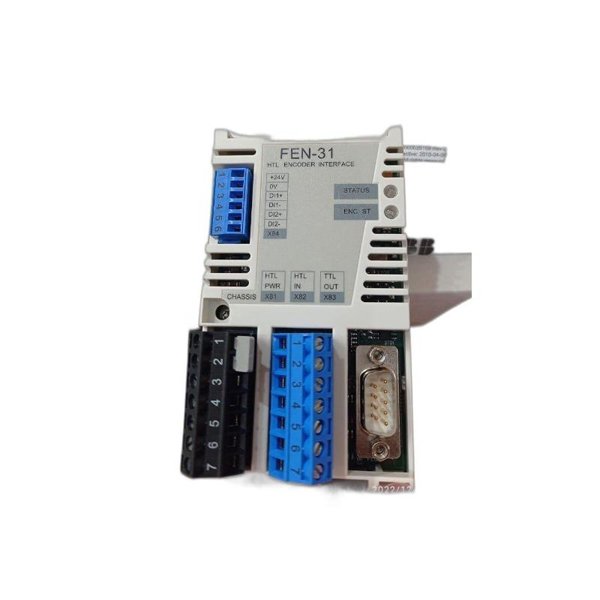

Designed for robust industrial performance, the FEN-31 is compact, DIN-rail mountable, and fully compliant with stringent industrial standards. It serves as a critical link in distributed control systems (DCS), programmable logic controllers (PLCs), and supervisory control and data acquisition (SCADA) systems, where precision and reliability are paramount.

Technical Specifications

Product Applications

• Used for industrial automation systems requiring Ethernet-based communication.

• Essential for real-time drive control and feedback in manufacturing plants.

• Applied in industries such as:

  • Oil & Gas

  • Water & Wastewater Treatment

  • Pulp & Paper

  • Chemical & Pharmaceutical

  • Power Generation

  • Marine & Ports

• Interfaces ABB drives with DCS/PLC via fieldbus for coordinated motion and speed control.

• Enables remote configuration, diagnostics, and firmware updates.

Product Advantages

• Versatile Communication: Supports multiple Ethernet-based protocols (e.g., EtherNet/IP, Modbus TCP).

• Seamless Integration: Fully compatible with ABB ACS800 and other legacy drives.

• Compact and Robust: Space-saving design with IP20-rated industrial-grade housing.

• High Data Throughput: Ensures fast, real-time data exchange for critical applications.

• Easy Configuration: Plug-and-play setup with minimal commissioning time.

• Remote Monitoring: Facilitates remote diagnostics and performance tuning.

• Reduced Downtime: Built-in error diagnostics and LED indicators for troubleshooting.

• Longevity and Support: Backed by ABB’s global service infrastructure.

Frequently Asked Questions (FAQ)

Q1: What fieldbus protocols are supported by the FEN-31 module?

A1: The FEN-31 supports Ethernet-based protocols such as EtherNet/IP and Modbus TCP/IP.

Q2: Can the FEN-31 be used with all ABB drives?

A2: It is primarily designed for use with ABB ACS800 drives, though it may also be compatible with other models in the ACS family depending on firmware.

Q3: Does this module require an external power source?

A3: No, the FEN-31 receives power directly from the drive’s internal bus.

Q4: How do I mount the FEN-31 module?

A4: It is designed for DIN-rail mounting within an electrical control cabinet.

Q5: Is firmware upgrade possible via Ethernet?

A5: Yes, firmware can be updated using ABB tools over the Ethernet interface.

Q6: What is the maximum communication speed supported?

A6: It supports 10/100 Mbps communication speeds via the RJ45 Ethernet port.

Q7: What kind of diagnostics are available?

A7: The module features built-in diagnostics with status LEDs and error reporting via software tools.

Q8: Can this be used in outdoor environments?

A8: No, the IP20 rating indicates it must be installed in a protective enclosure indoors.

Q9: What is the expected lifespan of the module?

A9: When operated under proper conditions, it has an industrial-grade lifespan exceeding 5 years.

Q10: Is it possible to monitor the drive remotely using the FEN-31?

A10: Yes, with proper configuration, remote monitoring and parameter control are supported.
