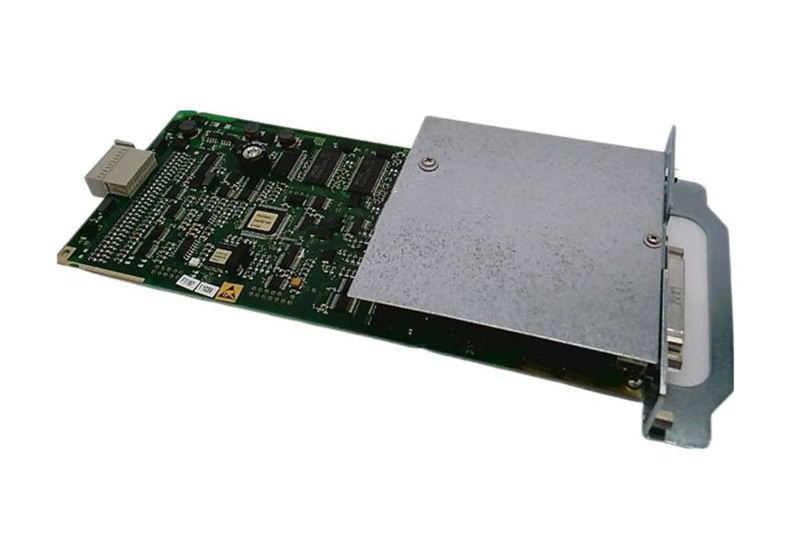

ABB 1KHW000608R0102 Industrial-Grade PC Board

The ABB 1KHW000608R0102 is a durable and precise industrial PC board designed for automation and control applications. It belongs to the G3LD series, offering efficient signal processing and reliable operation. This module integrates seamlessly into ABB’s automation frameworks and performs well in demanding industrial environments.

Electrical Specifications

• Power Supply Voltage: 24 V DC ±10%

• Power Consumption: 5 W nominal

• Insulation Resistance: ≥ 100 MΩ @ 500 V DC

• Surge Protection: Compliant with IEC 60255-5, 1500 V

Input/Output Configuration

Digital Inputs:

• Number of Channels: 16

• Input Voltage: 24 V DC

• Input Current: 5 mA per channel

• Input Impedance: 4.7 kΩ

• Isolation: 1000 V between I/O and logic circuit

Digital Outputs:

• Number of Channels: 16

• Output Type: Solid-state relay

• Voltage Range: 12–30 V DC

• Maximum Output Current: 0.5 A per channel

• Protection: Overvoltage and short-circuit protection

Weight

• Weight: 0.20 lbs
