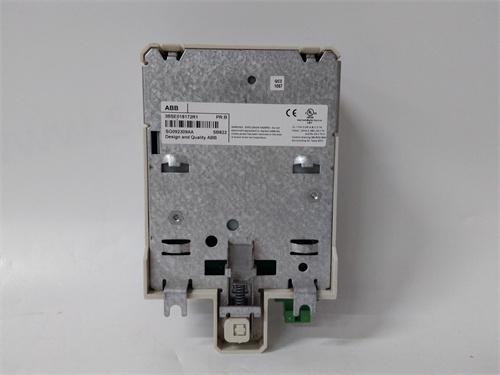

ABB SB822 3BSE018172R1 Product Introduction

SB822 3BSE018172R1 is a functional module produced by ABB Group.The following is a detailed introduction to the module.

Basic properties

Brand:ABB

Model:SB822 3BSE018172R1

Manufacturer:ABB Group(formed by the merger of Swedish ASIA and Swiss B&F in 1988,one of the world’s top 500 companies,with a leading position in the field of power and automation technology)

Functional characteristics

PLC system application:This module is mainly used for analog input in PLC systems,and can efficiently collect and process analog signals.

CPU module compatibility:A full range of CPU modules can be installed and plugged in,providing 1 to 4 empty slots for plugging in different communication modules and local I/O expansion modules,and up to 10 I/O module baseboards can be connected.

Communication interface:It integrates an FBP interface that can be used for slave communication,as well as COM1 port(pluggable terminal block)and COM2 port(SUB-D plug).Through the FBP interface,different communication bus devices such as Profibus,DPCANopen,DeviceNet and Modbus can be connected to form distributed I/O together with the CPU.

Distributed I/O interface:Distributed I/O interface modules such as DC505-FBP and DC551-CS31 are provided.These modules can be directly plugged into the baseboard of the TU5xx series for use.

Control algorithm:It integrates continuous control,sequential control and batch control,and can realize control strategies such as cascade,feedforward,decoupling,adaptive and predictive control.

High resolution:The range of the measurement signal of each channel can be set individually,with a resolution of up to 12 bits+sign bit.

Application areas

Production line control:In the manufacturing industry,it is used to control the operation of the production line and coordinate the cooperation between various processes.

Robot control:On the automated production line,it is used in conjunction with the robot system to achieve precise positioning and motion control.

Process control system:In the chemical,petroleum,pharmaceutical and other industries,it is used to monitor and control various parameters and variables in the production process.

Energy management system:In the power system,it is used to monitor and manage the use of energy and improve energy efficiency.
