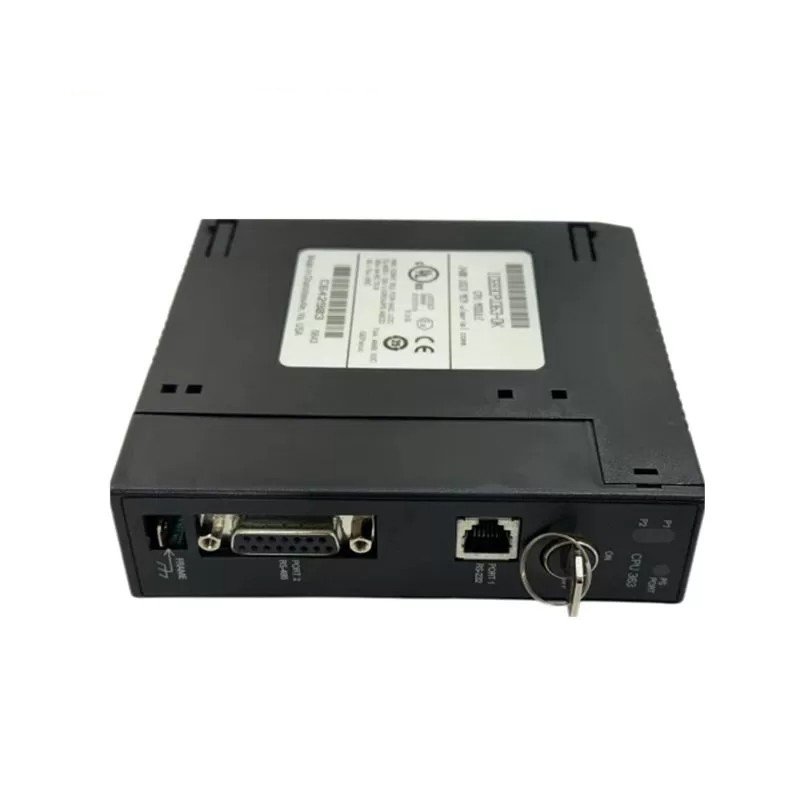

GE Fanuc IC693CPU363 CPU Module

The GE Fanuc IC693CPU363 is a CPU module designed for GE Fanuc Series 90-30 PLCs. This module serves as the computational core of the PLC system, executing user-programmed logic to control various industrial processes.

Key Features and Specifications

• Processor: 80386EX processor with a clock speed of 25 MHz.
• Memory:
  • User RAM: Configurable in 128-word increments, up to 16,384 words.
  • Flash Memory: Stores the CPU firmware.
• Communication:
  • Three Serial Ports:
    • One for SNP/SNPX slave protocol.
    • Two for SNP/SNPX master/slave and RTU slave protocols.
  • Optional Ethernet and Profibus communication modules are available.
• Performance:
  • Typical scan rate of 0.22 ms per 1K of logic for Boolean contacts.
• Other Features:
  • Supports periodic subroutines.
  • Configurable through Logicmaster software.

Applications

The IC693CPU363 excels in various industrial automation applications, such as:

• Manufacturing
• Process Control
• Machine Automation
• Material Handling
• Packaging

Benefits

• Reliable Performance: It has a proven track record in demanding industrial environments.
• Flexibility: The module offers configurable memory and communication options to meet diverse requirements.
• Scalability: Ideal for small to medium-sized PLC systems.
• Compatibility: Works seamlessly with other modules in the GE Fanuc Series 90-30 product line.
