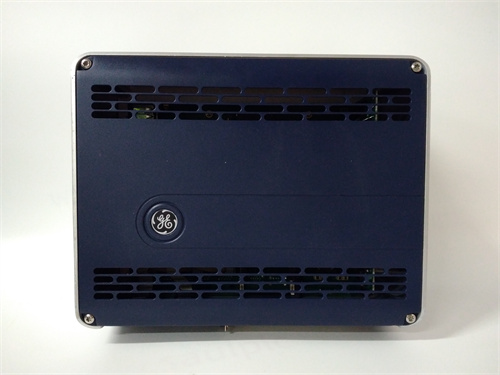

GE 04220FL11232A Detailed Information

GE 04220FL11232A is often described as an RXI controller or field interface module,which is designed for industrial automation and control systems.This component is powerful and suitable for a variety of industrial applications such as manufacturing,power,chemical,water treatment,oil and gas,etc.

Main Features

Communication Protocol Support

Supports a variety of communication protocols,including serial I/O,Modbus master/slave,CCM slave,DNP3 master/slave,and SPL.This means it can communicate with many different types of devices to achieve data exchange and control.

Communication Ports and Tasks

Each communication port can support up to 64 communication tasks,ensuring efficient and flexible communication.

Each communication port has 224 module and communication status bits and 128 module and communication control bits,supporting multiple communication operation modes,such as continuous read,position-controlled continuous read,position-controlled single read,continuous write,position-controlled continuous write,position-controlled single write,etc.

Processor and memory

Optional dual-core or quad-core processors provide powerful computing and processing capabilities.

RXi Box IPC has 4G RAM memory to support high-performance design.

Storage system

Standard 32GB industrial-grade solid-state drive,optional 250GB hard drive to ensure data storage security.

Network interface

Supports Gigabit PROFINET(built-in MRP redundancy)and Ethernet ports to provide high-speed data transmission capabilities.

Other interfaces

Provides RS-232 port(RJ-45)to support serial communication.

Provides VGA port,supporting resolutions up to 2560×1440 60Hz.

Provides two USB 2.0 standard interfaces for easy connection of external devices.

Optional WLAN function can achieve wireless communication through the internal Mini PCIe card holder.

Software support

Provide a wide range of software options,such as iFIX and CIMPLICITY,which provide client/server-based visualization and control functions to help users manage equipment operation,automatic monitoring,and provide reliable information in discrete applications that require more advanced analysis tools.

Reliability

Adopting advanced power protection concepts can not only meet the requirements of specific power systems,but also bring confidence and peace of mind to power system owners and users.

Provide stable performance under extreme conditions and standard environments to ensure the normal operation of the system.

Application fields

GE 04220FL11232A is widely used in industrial automation applications to connect and manage different types of sensors,actuators and other external devices.It is particularly suitable for scenarios that require high performance,high reliability and flexible communication capabilities,such as analog control,instrument control,industrial control,process control and monitoring,factory automation,intelligent networked PLC controllers,automatic testing,and data acquisition.
