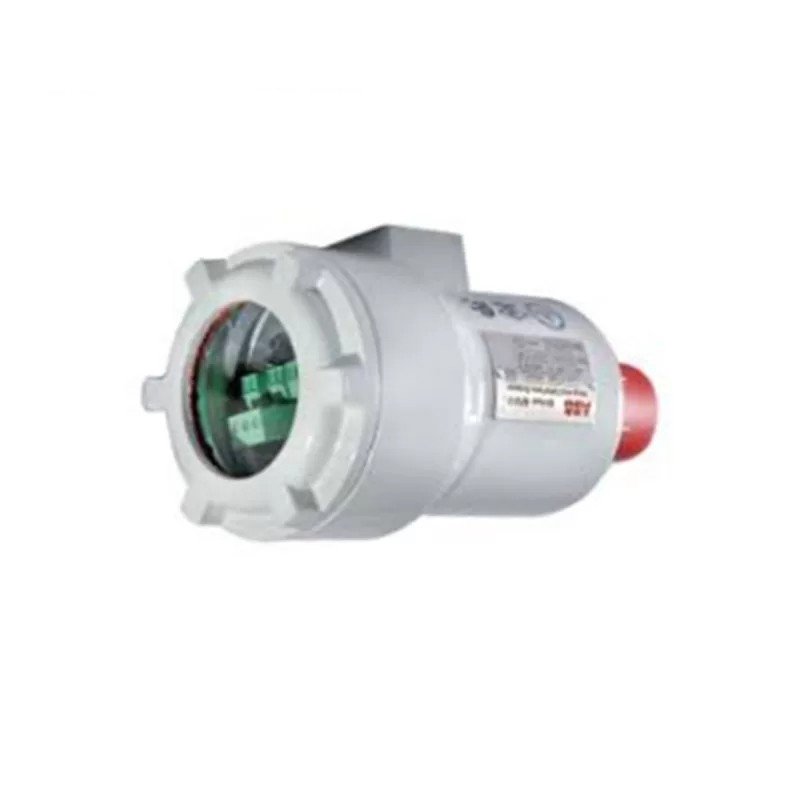

The ABB SF810-LOC-IR-TL is a high-performance flame scanner designed for industrial and utility boilers. It employs infrared (IR) technology to accurately detect flames in various combustion environments, ensuring optimal combustion control and boiler safety.

Technical Specifications

• Model: ABB SF810-LOC-IR-TL
• Manufacturer: ABB
• Type: Flame Scanner
• Sensor Technology: Infrared (IR) solid-state sensor
• Spectral Response Peak: 920 nm
• Power Supply Voltage: Powered by Flame Analysis Unit FAU810
• Power Consumption: Max 300 mW / 600 mW (Dual Sensor)
• Air Source for Lens Cleaning: Clean ambient air
• Air Flow for Lens Cleaning: 115 l/min (4 SCFM)
• Minimum Cleaning Air Pressure: 20 mm H2O (1” W.C.) above max wind box pressure
• Maximum Fiber Optic Continuous Operating Temperature: 482°C (900°F) for IR fiber optic cables
• Housing Mounting Thread: 1” NPT male
• Cable Entry Thread: Quick release connector for IP66/67 or II 2GD Ex d IIC T6 hazardous areas
