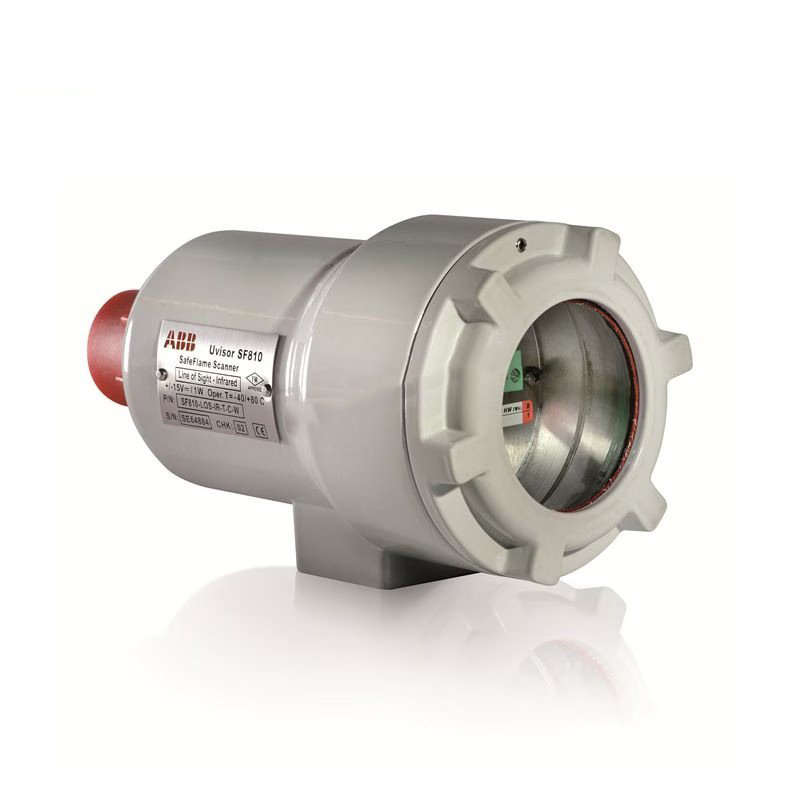

ABB SF810-FOC-IR-TL-C-W Flame Scanner

The ABB SF810-FOC-IR-TL-C-W is a flame scanner designed to monitor combustion in industrial applications. It ensures high-precision flame detection, supporting safe and efficient burner operation.

Technical Specifications

• Model Number: SF810-FOC-IR-TL-C-W

• Type: Flame Scanner

• Manufacturer: ABB

Spectral Response

• IR Versions: Si photodiode, peak at 920nm

• VL Versions: Si photodiode, peak at 560nm

• UV Versions: SiC photodiode, peak at 280nm

• UVIR Version: Si + SiC photodiode, peaks at 280nm and 920nm

Power Supply and Consumption

• Power Supply Voltage: Powered by the FAU810 Flame Analysis Unit

• Power Consumption: Max 300 mW / 600 mW (Dual Sensor)

Air Source and Flow

• Air Source for Lens Cleaning: Clean ambient air

• Air Flow for Lens Cleaning:

  • LOS (Line Of Sight) versions: 115 l/min (4 SCFM)

  • FOC (Fiber Optic Cable) versions: 400 l/min (14 SCFM)

Minimum Cleaning Air Pressure

• LOS Versions: 20mm H2O (1” W.C.) above max wind box pressure

• FOC Versions: 300mm H2O (12” W.C.) above max wind box pressure

Maximum Fiber Optic Continuous Operating Temperature

• VL and IR Fiber Optic Cables: 482°C (900°F)

• UV and Dual Sensor UVIR Fiber Optic Cables: 350°C (662°F)

Housing Mounting and Cable Entry

• Housing Mounting Thread: 1” NPT male

• Cable Entry Thread: Standard industrial connection
