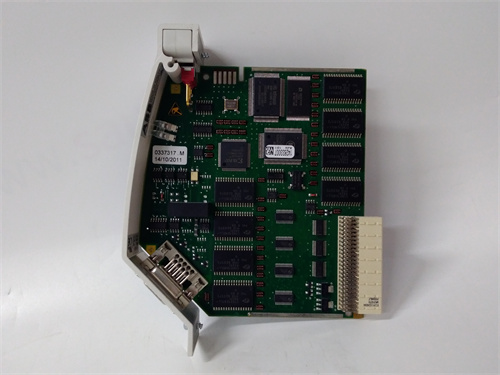

ABB FI830F 3BDH000032R1 Product Details

FI830F 3BDH000032R1 is a powerful and easy-to-configure Profibus DP interface module that meets the needs of industrial automation and process control systems for efficient communication and data exchange.

Technical features

Profibus DP interface:The module provides a Profibus DP interface,supports the Profibus DP V1 protocol,and has a data communication rate of up to 12Mbd.

Highly integrated:The module has a compact design and high integration,and can realize complex communication and control functions in a limited space.

Easy to configure:Configuration and parameter settings can be completed using CBF software,without the need for additional programming software,reducing configuration difficulty and cost.

Redundant operation:Redundant operation is supported through redundant field controllers to improve system reliability and stability.

Status indication:The module is equipped with a status indicator light,which can intuitively display the working status and communication status of the module,making it convenient for users to troubleshoot and maintain.

Technical parameters

Transmission rate:up to 12Mbd.

Number of slave stations supported:126 Profibus slave stations can be connected.

Interface type:RS485 electrical isolation interface.

Onboard memory:shared memory(128KB),occupying the minimum value of the basic unit memory.

Power loss:Typical power consumption during operation is 2.4W~2.8W(depending on the communication scan cycle).

Output current:maximum 20mA.

Output voltage:5V±5,overvoltage protection+7.5V/-5V.

Weight:about 0.15 kg.

Application scenarios

The FI830F 3BDH000032R1 module is suitable for various industrial automation and process control systems,especially those requiring efficient communication and data exchange.Through integration with other ABB products and systems,efficient,stable and reliable industrial automation solutions can be built.
