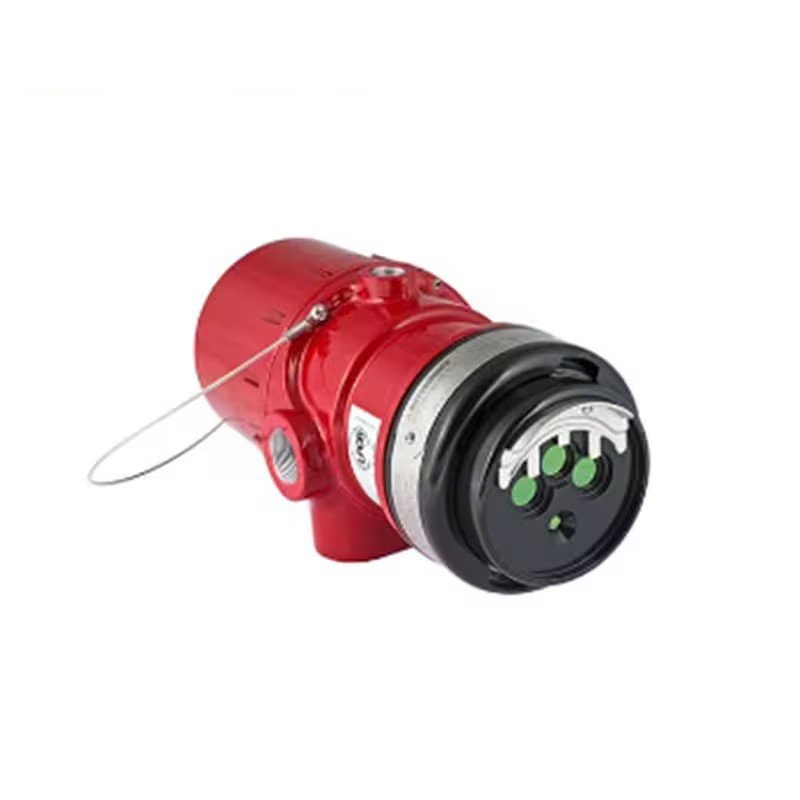

FLAME DETECTOR X3301 Multispectrum Infrared (IR) Flame Detector

The Det-Tronics X3301 is a highly advanced multispectrum infrared (MIR) flame detector, designed for fast and precise fire detection in hazardous industrial environments. It minimizes false alarms and offers the longest FM-approved detection range for carbonaceous fires. This detector is ideal for critical applications where safety and reliability are paramount.

Technical Specifications

• Detection Technology:
  • Utilizes multispectrum infrared (MIR) technology for detecting various fire types and fuels with high sensitivity.
• Communication Protocols:
  • Supports 0-20 mA, relay, Modbus, HART (optional), FDT/DTM, and EQP for versatile integration with control systems.
• Detection Range:
  • Provides the longest FM-approved range for carbonaceous fires, ensuring reliable detection over large areas.
• Event Log:
  • Stores up to 1,500 events with detailed time and date stamps for easy post-event analysis.
• Diagnostic LED:
  • Features a local diagnostic LED for quick identification of alarm and fault conditions.
• Optical Integrity (oi®):
  • Performs automatic fail-safe checks every 60 seconds to ensure continuous reliability.
• Environmental Resistance:
  • Designed for use in harsh environments with heated optics, RFI and EMC compliance for optimal performance under extreme conditions.
• Certifications:
  • Certified to FM 3260, EN54, SIL 2, and ATEX standards, ensuring suitability for use in hazardous locations.
• Temperature Range:
  • Operates in extreme temperatures from -40°C to +75°C (-40°F to +167°F), ensuring reliability in demanding environments.
• Installation Options:
  • Available in explosion-proof (Ex d) or increased safety (Ex d e) configurations for secure installation in hazardous areas.
