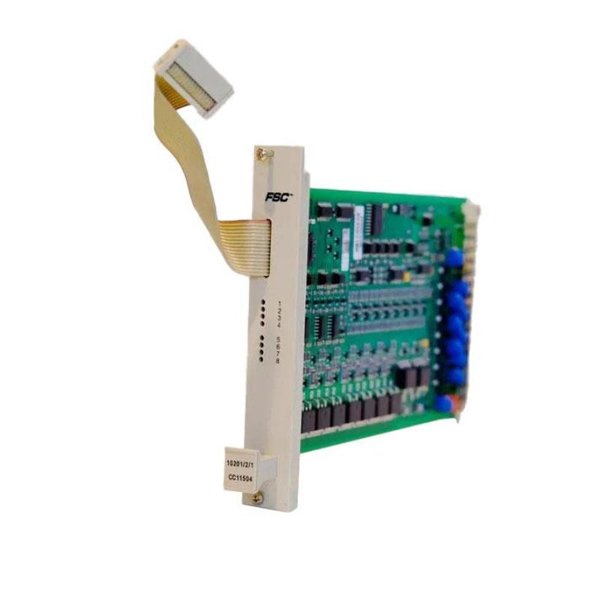

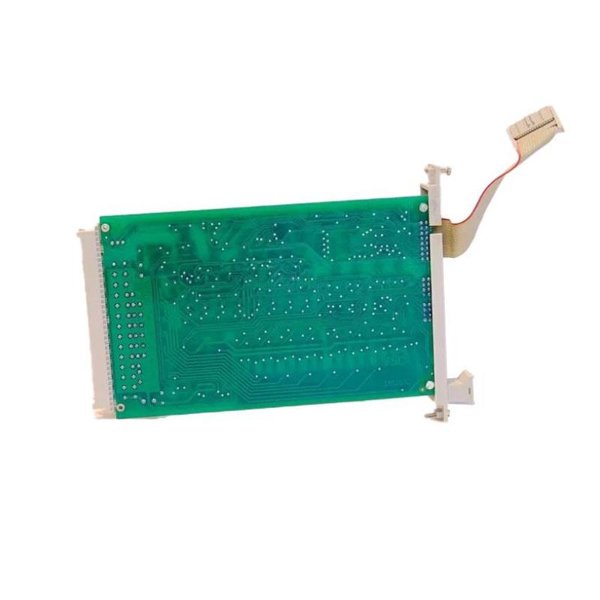

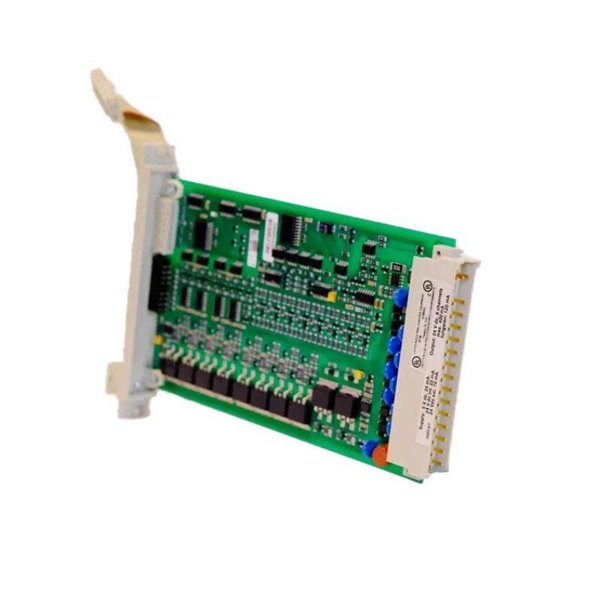

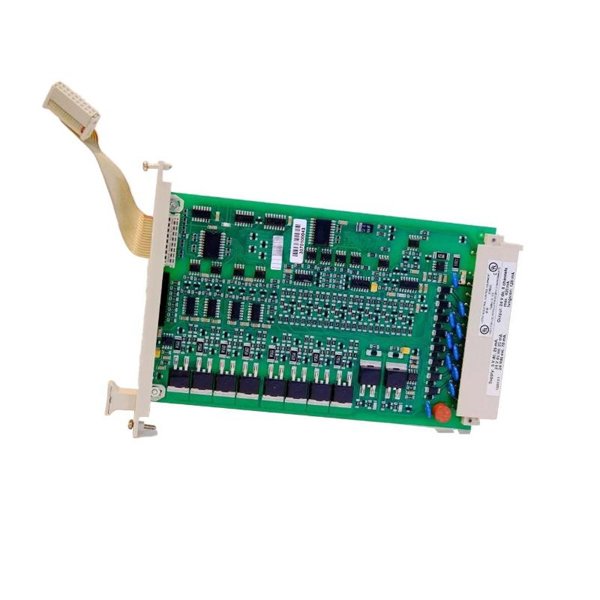

The Honeywell 10201/2/1 9910160020 Fail-Safe Digital Output Module is designed for industrial applications requiring high reliability and safety. This module ensures that, in the event of a system fault, outputs default to a predefined safe state, thereby protecting both equipment and personnel. Its robust design and fail-safe functionality make it an essential component in safety-critical systems.

Product Specifications

Product Applications

The 10201/2/1 9910160020 Fail-Safe Digital Output Module is utilized in various industries where safety and reliability are critical:

• Chemical Processing: Controlling emergency shutdown systems and safety interlocks.

• Oil and Gas: Managing safety-critical operations such as blowout preventers and emergency shutdown valves.

• Power Generation: Operating safety systems and critical control functions in power plants.

• Water Treatment: Ensuring safe operation of pumps and valves in water and wastewater facilities.

• Pharmaceuticals: Maintaining safety protocols in manufacturing processes.

• Food and Beverage: Controlling safety mechanisms in processing and packaging equipment.

Product Advantages

• Fail-Safe Operation: Ensures outputs revert to a safe state during system faults, enhancing safety.

• High Reliability: Designed for critical applications requiring consistent and dependable performance.

• Robust Isolation: 1500 V AC isolation protects the system from electrical noise and potential damage.

• Compact Design: Small footprint facilitates easy integration into existing control systems without requiring extensive space.

• Wide Operating Range: Designed to function effectively in harsh industrial environments with extreme temperatures and humidity levels.

• Easy Maintenance: Modular design allows for straightforward replacement and maintenance procedures.

FAQ

1. What is the primary function of the 10201/2/1 9910160020 module?

   It provides fail-safe digital outputs, ensuring outputs default to a safe state during system faults.

2. How many output channels does the module have?

   The module offers 8 digital output channels.

3. What is the output voltage of the module?

   It operates at a nominal output voltage of 24 V DC.

4. What is the maximum output current per channel?

   Each channel can handle up to 0.5 A of current.

5. Does the module provide isolation between channels and the system?

   Yes, it offers 1500 V AC isolation between the output channels and the system.

6. What happens to the outputs in the event of a system fault?

   The outputs default to an OFF state to ensure safety.

7. What are the operating temperature limits of the module?

   The module operates effectively between -20°C to 60°C (-4°F to 140°F).

8. Can the module be used in high humidity environments?

   Yes, it functions in humidity levels ranging from 5% to 95% RH (non-condensing).

9. What are the dimensions and weight of the module?

   The module measures 30 x 200 x 150 mm and weighs 0.15 kg.

10. Is the module compatible with other Honeywell control systems?

    Yes, it is designed to integrate seamlessly with Honeywell’s control systems.
