ABB PM864AK01 3BSE018161R1 Detailed Information

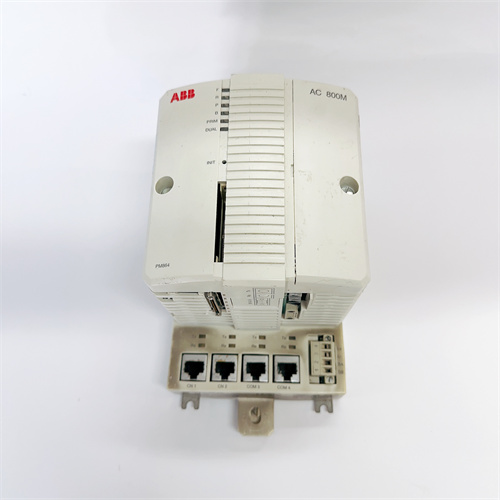

ABB PM864AK01 3BSE018161R1(hereinafter referred to as PM864AK01)is a controller designed for industrial automation and control applications.It is based on rail installation and has a modular design.It integrates multiple functions such as real-time control,communication,data storage and processing,and can meet the complex control and monitoring needs in industrial automation systems.

Main features

Real-time control capability

PM864AK01 has powerful real-time control capabilities,can handle real-time feedback and dynamic control requirements,and ensure that the system operates stably within the predetermined parameters.

Multiple communication protocol support

The controller supports multiple communication protocols,such as Modbus,Profibus,Ethernet,etc.,and can exchange and communicate data with other devices,sensors,actuators and monitoring systems.This helps to simplify the network structure and improve the flexibility of the system.

Large memory capacity

PM864AK01 is equipped with 32MB memory capacity,of which 23.522MB RAM is available for application.This enables it to process large amounts of data and ensures system stability and reliability.

Programmability

The controller supports a variety of programming languages​​and development tools,such as ladder diagram(LD),structured text(ST),function block diagram(FBD)under the IEC 61131-3 standard.This allows users to customize the module through programming to perform specific control logic and tasks.

Multitasking capability

PM864AK01 supports multitasking and is able to perform multiple control tasks simultaneously.This improves the efficiency of the system and enables it to manage multiple processes or equipment simultaneously.

Redundancy function

To improve the reliability of the system,PM864AK01 is usually designed with redundant functions.This prevents single point failures and ensures continuous operation of the system.

Self-diagnosis function

The controller has a self-diagnosis function that detects faults and generates alarms.This helps maintenance personnel quickly locate and solve problems,thereby improving system availability and reliability.

Modular design:The modular design of PM864AK01 allows users to gradually expand the system according to actual needs,improving the scalability and flexibility of the system.

Hardware components and interfaces

CPU motherboard

Contains microprocessor and RAM memory,real-time clock,LED indicator,start button and CompactFlash interface.

Bottom board port

Two RJ45 Ethernet ports(CN1,CN2)are used to connect to the control network.

Two RJ45 serial ports(COM3,COM4),where COM3 is an RS232C port with modem control signal,and COM4 is isolated for connecting configuration tools.

Redundant Ethernet communication port

PM864AK01 has built-in redundant Ethernet communication ports to improve the reliability and stability of communication.

Application field

PM864AK01 is widely used in various industrial automation systems,such as production lines,power plants,etc.It can meet the needs of these systems for complex control and monitoring tasks,improve production efficiency and reduce maintenance costs.
