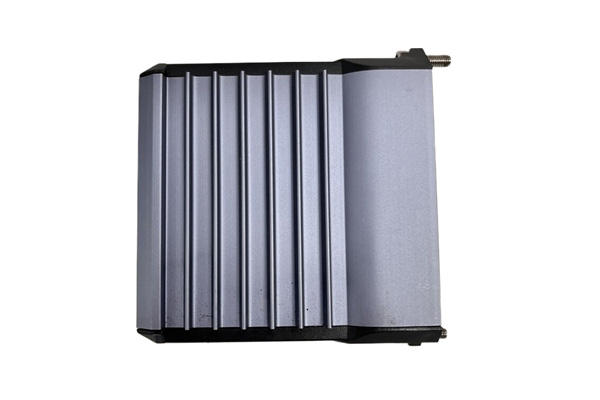

Foxboro FBM233 P0926GX Input/Output (I/O) Module

The FOXBORO FBM233 P0926GX module is an input/output (I/O) module widely used in industrial automation and control systems. It has multiple functions and features. The following is a detailed introduction to the module:

Main functions

Multi channel input/output support:

Input: Supports multiple digital and analog input channels for connecting sensors, switches, and other input devices to monitor external conditions and events. Specifically, this module is capable of receiving digital input signals from sensors, switches, and other digital signal sources, and converting them into digital signals required by industrial automation control systems.

Output: Supports multiple digital and analog output channels for controlling actuators, valves, motors, and other external devices to perform various control tasks.

Real time data exchange:

Capable of real-time transmission of collected data to control systems (such as PLC, DCS, SCADA systems, etc.) and receiving instructions and commands from the control system, achieving fast and accurate data transmission and control response.

Programmable Logic Control:

Users can customize configuration and programming according to specific needs to adapt to different control logic and algorithm requirements, and meet various complex control needs.

Pulse generation and control:

This module also has the ability to generate and control pulse signals, including adjusting the frequency, amplitude, and width of pulses, as well as functions such as pulse counting and external triggering, making it suitable for application scenarios that require precise control of pulse signals.

Communication interface:

Usually equipped with multiple communication interfaces, such as Modbus, Profinet, etc., for data transmission and communication with other devices and systems, achieving system interconnection and intercommunication.

Product parameters and specifications

Input type: Number (some materials mention that analog input is also supported)

Number of input channels: 8 (for numeric inputs)

Input voltage range: 24VDC

Input signal type: discrete signal, digital signal

Input signal level range: 0-5VDC

Input signal sampling rate: 12kHz

Working temperature range: -40 ℃ to+70 ℃

Storage temperature range: -40 ℃ to+85 ℃

Working humidity range: 10% to 95% (no condensation)

Application scenarios

The FOXBORO FBM233 P0926GX module is widely used in industrial automation control systems to receive and process signals from various sensors and actuators, achieving automation control and monitoring functions. It can be used together with other digital and analog input/output modules to build more complex control systems.

Summary

The FOXBORO FBM233 P0926GX module is a powerful, flexible, and programmable industrial automation input/output module that provides reliable data transmission and control support for industrial automation control systems through its multi-channel input/output support, real-time data exchange, programmable logic control, and pulse generation and control functions. Meanwhile, its rich communication interfaces and wide range of application scenarios make this module an important component in the field of industrial automation.
