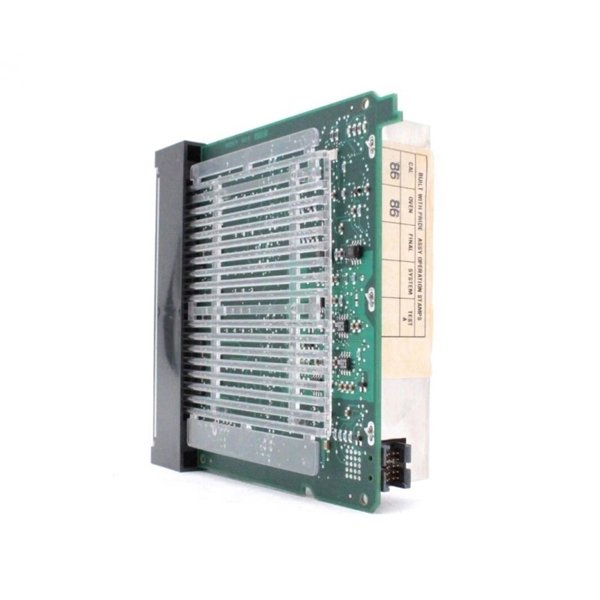

Honeywell 900A01-0002 ControlEdge HC900 Analog Output Module
Manufacturer:Honeywell
Product Number:900A01-0002
Product Type:Analog Output Module
Origin:USA
Dimensions:137 × 35.6 × 137.16 mm
Weight:0.21 kg
Views:63
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell 900A01-0002 is part of the ControlEdge HC900 series designed for high-performance analog output operations in industrial automation. This 4-channel analog output module provides precise and scalable current outputs (0 to 21.8 mA), tailored for complex control processes requiring high reliability and galvanic isolation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900A01-0002 |
| Channels | 4 isolated analog outputs |
| Output Signal Range | 0 to 21.8 mA |
| Load Resistance | Max. 750 Ohms |
| Galvanic Isolation | 500 VDC Channel to Channel; 600 VDC to Logic |
| D/A Resolution | 12 bits |
| Accuracy | ± 0.1% full scale |
| Update Mode | Synchronous with control execution |
| Failsafe Mode | Configurable per channel |
| Power Requirements | 5V: 40mA max; 24V: 200mA max |
| Dimensions (H × W × D) | 137 × 35.6 × 137.16 mm |
| Weight | 0.21 kg |
Applications
-
Process automation (chemical, water, HVAC)
-
Batch control systems
-
Industrial analog signal transmission
-
Feedback loop control in SCADA systems
Key Advantages
Galvanic Isolation: Ensures high integrity signal separation between channels and logic.
Failsafe Support: Enables controlled behavior on communication failure.
Flexible Output Scaling: User-defined current ranges per channel.
Reliable Diagnostics: LED indicators and output current verification.
Hot-Swappable: Supports removal/insertion under power without system shutdown.
FAQs
Q1: How many channels does the 900A01-0002 support?
A1: It supports 4 isolated analog output channels.
Q2: What is the output range for each channel?
A2: Each channel supports a current output from 0 to 21.8 mA.
Q3: Does the module support hot-swapping?
A3: Yes, it can be removed or inserted without powering down the system.
Q4: Is the module galvanically isolated?
A4: Yes, both channel-to-channel and channel-to-logic isolation are provided.
Q5: What is the maximum load resistance per channel?
A5: The maximum load resistance is 750 Ohms.
Q6: How accurate is the output signal?
A6: The module provides ±0.1% full-scale accuracy under reference conditions.
Q7: What is the power consumption of the module?
A7: It consumes 40 mA @ 5V and 200 mA @ 24V.
Q8: Is the failsafe output configurable?
A8: Yes, each output can be configured to a user-defined failsafe value.
Q9: What type of digital-to-analog converter does it use?
A9: It uses a 12-bit resolution DAC for precise output control.
Q10: How is output integrity verified?
A10: Output verification provides feedback to the controller to confirm current flow.
