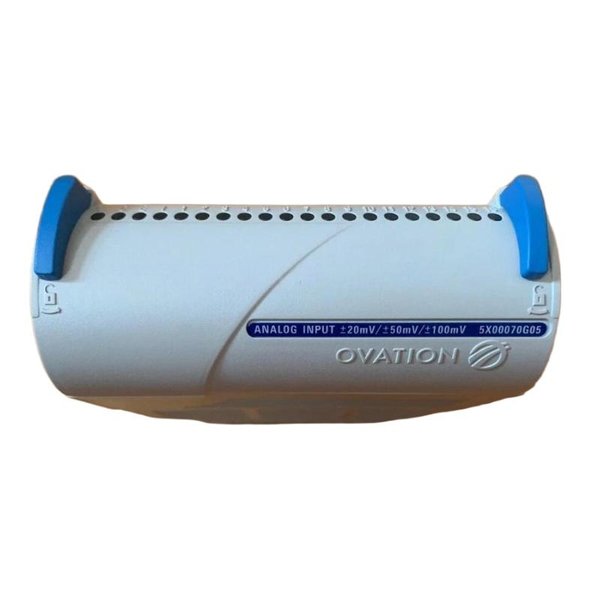

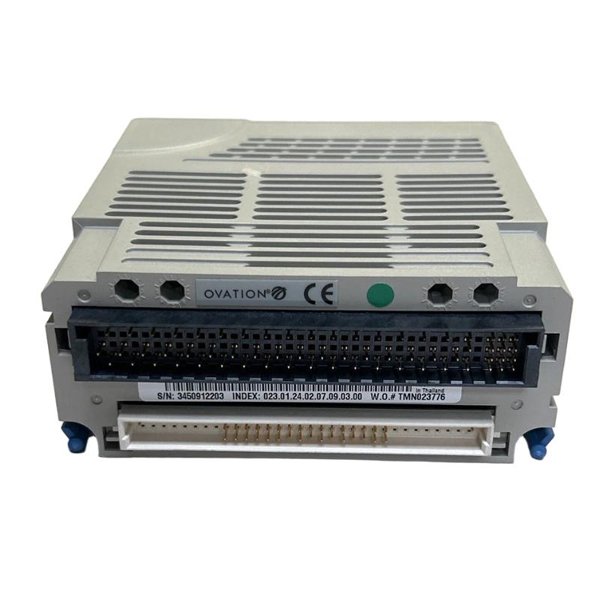

OVATION 5X00070G05 Analog Input Module

The OVATION 5X00070G05 Analog Input Module is a high-performance input module designed for use in Emerson’s Ovation Distributed Control System (DCS). It provides reliable acquisition of analog signals from field devices such as transmitters, sensors, and process instruments. With its robust design, it ensures precise data conversion and communication to the control system, making it suitable for critical industrial processes where accuracy and stability are essential.

Technical Specifications

Product Applications

• Power Generation – Monitoring temperature, pressure, and flow transmitters for turbine and boiler control.

• Water and Wastewater Treatment – Accurate measurement of pH sensors, level transmitters, and flow meters.

• Oil and Gas – Reliable acquisition of pressure and temperature data in upstream and downstream facilities.

• Chemical and Petrochemical – Integration of analog signals from reactors, pumps, and safety monitoring devices.

• Manufacturing Automation – Providing precise analog feedback for quality control and production optimization.

Product Advantages

• High Accuracy: Delivers stable and precise analog measurements with minimal drift.

• Flexible Input Configuration: Supports multiple ranges, making it adaptable to different field devices.

• Robust Isolation: Ensures reliable performance by reducing interference and cross-channel noise.

• Self-Diagnostics: Built-in monitoring enhances system reliability and simplifies troubleshooting.

• Compact Design: Small form factor (163 x 38 x 58 mm) for efficient cabinet space utilization.

• Seamless Integration: Fully compatible with Ovation DCS for smooth system expansion and upgrades.

FAQ

Q1: What types of analog signals can the 5X00070G05 accept?

A1: It can accept both voltage (0–10 V) and current (4–20 mA) signals, configurable per channel.

Q2: Does the module provide channel-to-channel isolation?

A2: Yes, it offers isolation to minimize noise interference and improve measurement reliability.

Q3: How many analog input channels are available on this module?

A3: The module supports 8 independent input channels.

Q4: Can the input ranges be configured individually for each channel?

A4: Yes, each channel can be configured independently for different ranges and signal types.

Q5: What kind of diagnostics are available on the module?

A5: It includes built-in self-test, fault detection, and error reporting for proactive maintenance.

Q6: What resolution does the analog-to-digital conversion support?

A6: The module supports 12-bit or higher resolution for accurate signal conversion.

Q7: How is the module powered?

A7: It operates on a nominal 24 V DC power supply.

Q8: Can the module be hot-swapped in the Ovation system?

A8: Yes, it is designed for hot-swap capability without shutting down the entire system.

Q9: What environments is this module suitable for?

A9: It is suitable for harsh industrial environments, with temperature tolerance from -20 °C to +60 °C.

Q10: Does the module support redundant configurations?

A10: Yes, it can be integrated into redundant Ovation architectures to enhance system reliability.
