Schneider 140DDM39000C Digital Input Modules

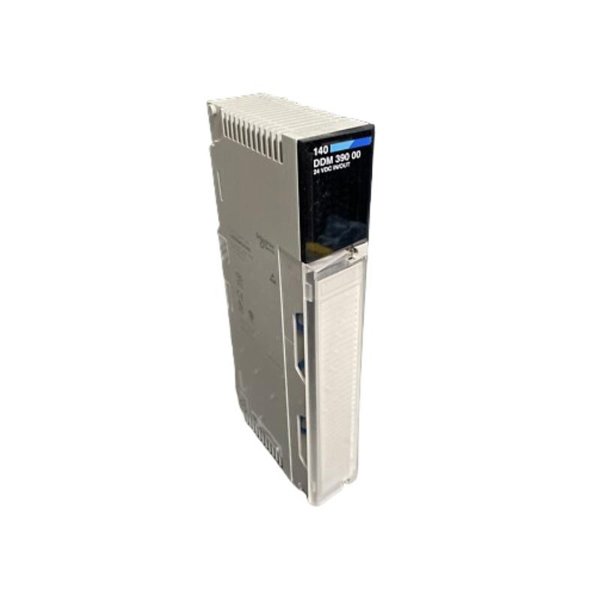

The Schneider 140DDM39000C is a discrete combination output module designed for Modicon Quantum automation systems. It integrates both AC and DC output channels, making it ideal for complex control applications that require a mixture of signal types. This module is engineered to deliver reliable performance, fast response, and long-term stability in demanding industrial environments.

Built for integration in large-scale programmable logic controller (PLC) systems, the 140DDM39000C provides 32 output points, which are divided into 16 AC and 16 DC outputs. These channels are isolated in groups to protect against electrical faults and ensure system safety. Its robust housing, modular configuration, and compatibility with the Quantum series make it a favored choice for process and discrete manufacturing sectors.

Technical Specifications

Product Advantages

• Hybrid Output Capability: Combines AC and DC discrete outputs, reducing the number of modules needed in hybrid environments.

• Isolation for Protection: Group-isolated outputs enhance system safety and help prevent cross-channel interference.

• High Reliability: Designed for continuous operation in industrial environments, ensuring stable long-term performance.

• Rack Compatibility: Fits seamlessly into Modicon Quantum racks, allowing easy integration and replacement.

• Diagnostic LEDs: Equipped with onboard status indicators for quick troubleshooting and channel monitoring.

• Space Efficiency: Compact design provides high channel density without compromising signal integrity.

Applications

• Automated Manufacturing: Suitable for machinery requiring both AC control (e.g., solenoids) and DC control (e.g., logic signaling).

• Oil & Gas Processing Plants: Ideal for distributed control systems (DCS) needing reliable field signal actuation.

• Water Treatment Facilities: Controls various motor-driven actuators and valves with mixed-voltage requirements.

• Pharmaceutical Automation: Facilitates precise control of packaging and conveyor mechanisms.

• Food & Beverage Industry: Used in batch processing lines that operate a variety of actuator types.

• Building Automation Systems: Supports energy management systems with dual-voltage output needs.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the 140DDM39000C module?

A1: It provides both AC and DC discrete output control channels within a single Quantum-series module.

Q2: How many output channels does the module support?

A2: It supports 32 outputs: 16 AC and 16 DC, grouped for electrical isolation.

Q3: Can I hot-swap this module in a live Quantum rack?

A3: No, the module should only be installed or removed when the rack is powered down to ensure safety.

Q4: What is the maximum current output per channel?

A4: Each output channel supports up to 0.5 A maximum load.

Q5: Does this module offer short-circuit protection?

A5: Yes, group-based protection helps isolate faults, but additional external fusing is recommended.

Q6: Is this module suitable for use in hazardous areas?

A6: While rugged, use in hazardous areas requires external certification and proper housing.

Q7: What is the physical size of the module?

A7: The dimensions are 132 x 49 x 185 mm.

Q8: Does it support removable terminal blocks for wiring?

A8: Yes, the module features plug-in terminal blocks for easy connection and maintenance.

Q9: What is the temperature rating for operation?

A9: It is rated for operation from 0°C to 60°C.

Q10: Is this module compatible with Unity Pro or EcoStruxure Control Expert?

A10: Yes, it is fully supported in both software environments for configuration and diagnostics.
