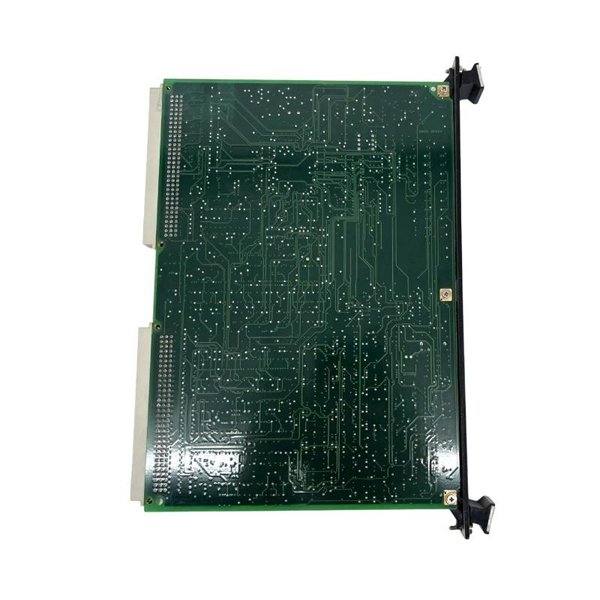

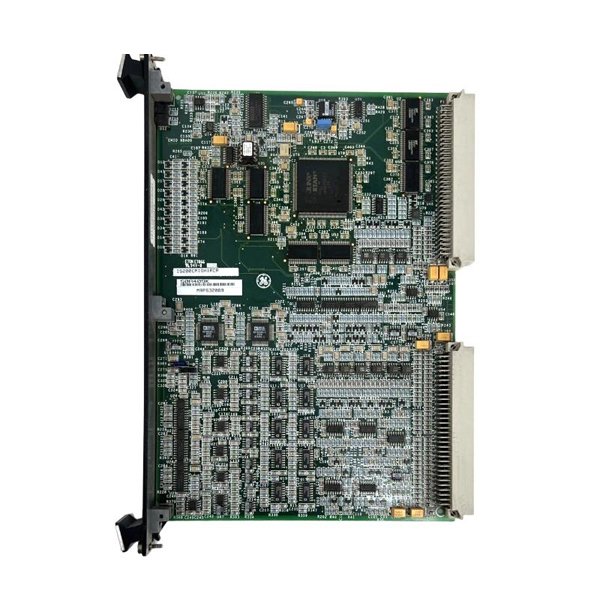

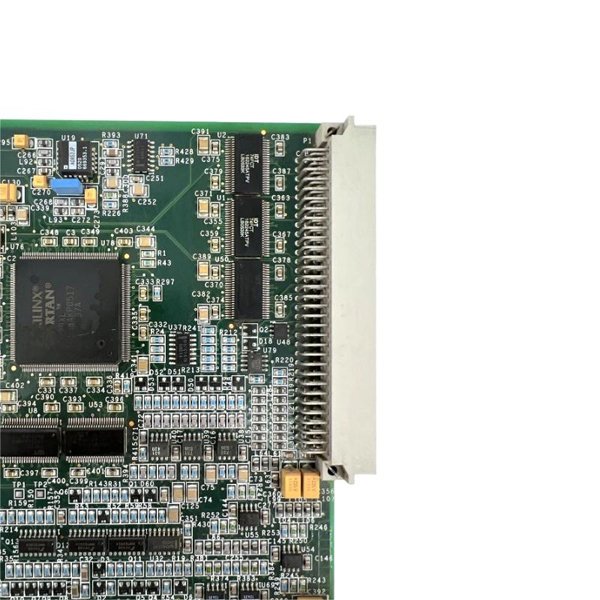

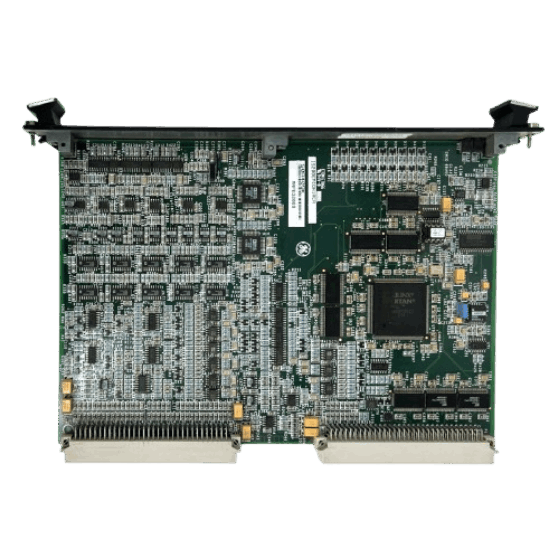

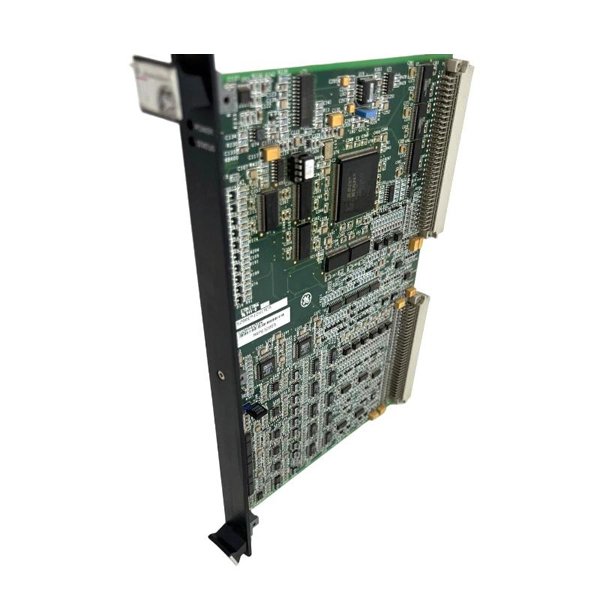

General Electric IS200EMIOH1A Exciter Main I/O Board
Item Number: IS200EMIOH1A
Brand: GE
Lead Time: In stock
Description: Exciter Main I/O Board
Payment: T/T
Product Description
GE IS200EMIOH1A is the Exciter Main I/O Board, which is mainly responsible for managing the input/output signals of the excitation system, including voltage/current sampling, relay control and gate pulse signal transmission.
Installation location: Single slot, double height VME standard board, installed in the control rack, communi
cates with other modules through the backplane (EBKP).
Function & Features
- PT/CT signal input: IS200EMIOH1A receives voltage (PT) and current (CT) sensor signals for excitation regulation.
- Digital I/O: Contact input monitors the status of circuit breakers, protection relays, etc.; Relay drive output: controls trip relays, excitation switches, etc.
- Gate pulse signal transmission: IS200EMIOH1A generates logic-level gate pulse signals, which are sent to the ESEL board (Exciter Selector Board) through the backplane, and are finally amplified by the EGPA board to drive the excitation circuit.
Specifications
|
Category |
Details |
| System | Mark VISpeedtronic EX2100 |
| Model |
IS200EMIOH1A |
|
+5V DC |
|
|
Power Indicator |
Power LED (indicates 5V power status) |
|
Status Indicator |
Status LED |
|
-P1 Connector -P2 Connector |
