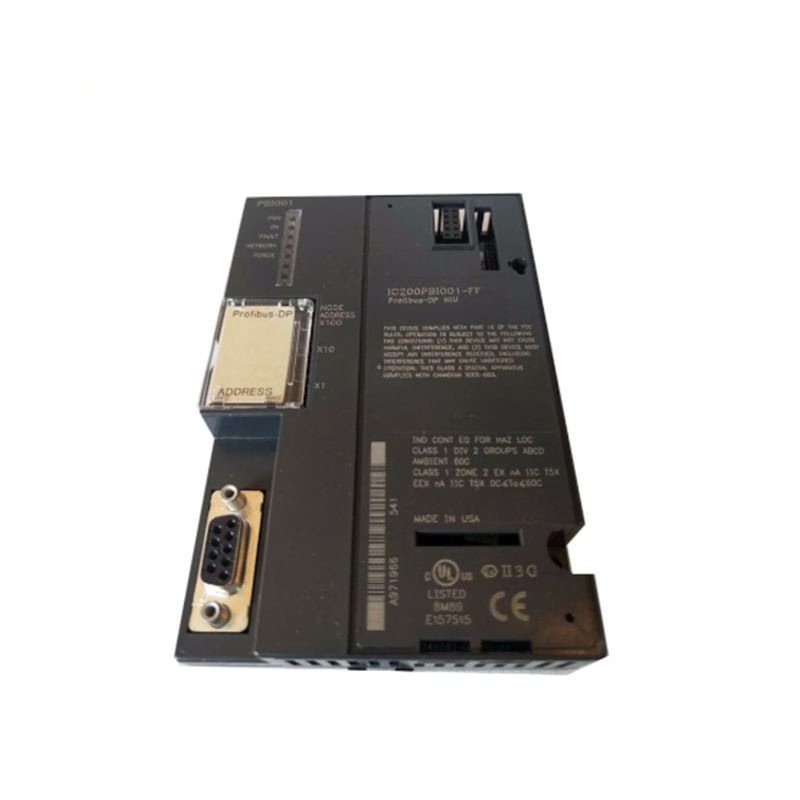

GE Fanuc IC200PBI001-KG VersaMax Profibus-DP Network Interface Unit

The GE Fanuc IC200PBI001-KG is a Profibus-DP Network Interface Unit (NIU) designed for use with the VersaMax family of programmable logic controllers (PLCs). This module allows communication between VersaMax PLCs and Profibus-DP networks, enabling efficient data exchange with various I/O modules. It acts as a Profibus-DP slave device, responding to requests from a master device, such as a PLC or PC. With support for various baud rates and up to 64 I/O modules, this unit offers versatility and reliability for industrial automation systems.

Technical Specifications

• Product Type: Profibus Network Interface Unit (NIU)
• Profibus Network Address: 1 to 125
• Profibus Network Data Rate:
  • Auto-detected range: 9.6 Kbaud to 12 Mbaud
• I/O Data Handling:
  • Maximum: 375 bytes
  • Inputs: Up to 244 bytes
  • Outputs: Up to 244 bytes
• User Diagnostic Data:
  • Maximum: 5 bytes
• LED Indicators:
  • Power LED: Indicates power status
  • OK LED: Indicates health of the NIU
  • Fault LED: Indicates faults
  • Network LED: Displays Profibus network health
  • Force LED: Not used
• I/O Modules:
  • Up to 64 I/O modules per NIU
  • Supports up to 8 racks, with 8 I/O modules per rack
• Power Consumption:
  • +5V at 250mA
  • +3.3V at 10mA
