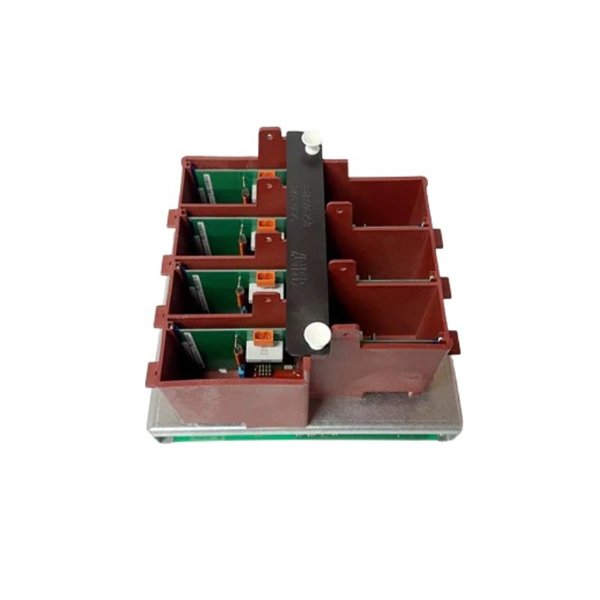

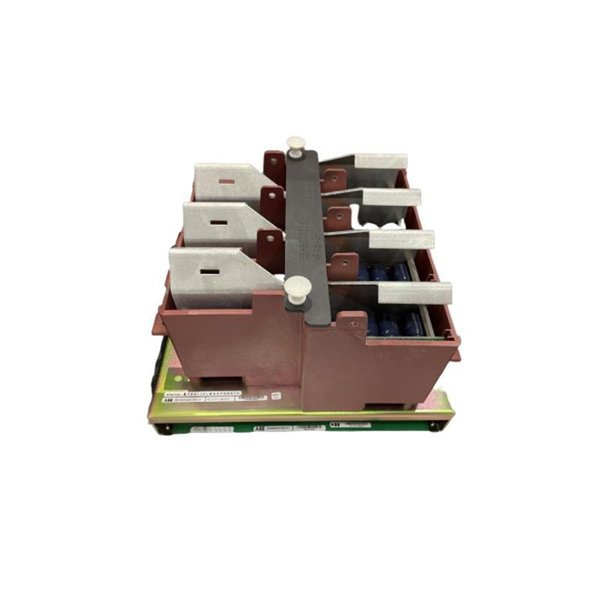

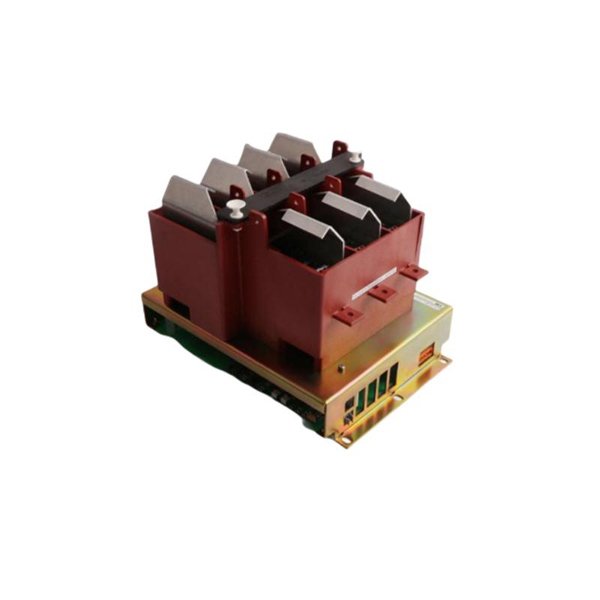

ABB KUC711AE101 3BHB004661R0101 Door Unit Power Supply
Manufacturer:ABB
Product Number:KUC711AE101 3BHB004661R0101
Product Type:Door unit power supply
Origin:Sweden
Dimensions:200 x 150 x 50 mm
Weight:1.2kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB KUC711AE101 3BHB004661R0101 is a high-performance Door Unit Power Supply Module, purpose-built for integration within ABB drive systems and industrial control architectures. This module delivers reliable and regulated power to door-mounted components such as control panels, HMIs, and interface terminals, ensuring continuous operation of front-panel electronics within drive cabinets or automation systems.
As part of ABB’s modular power electronics family, the KUC711AE101 is designed to withstand harsh industrial conditions, including temperature fluctuations, electrical noise, and mechanical vibration. It serves both legacy and current-generation ABB systems and is engineered for long-term operation, minimal maintenance, and high safety standards.
Key Features
-
Provides stable DC power for front door interfaces and panels
-
Specifically designed for ABB drive and automation systems
Robust and compact for panel-mounted or cabinet-integrated applications
Overvoltage and short-circuit protection included
-
Integrated with EMC filtering and noise suppression features
-
Built to operate in continuous-duty industrial environments
-
Meets global safety and environmental standards (CE, RoHS, UL)
-
Fully compatible with ABB’s drive modules and system components
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Door Unit Power Supply Module |
| Model Number | KUC711AE101 |
| Part Number | 3BHB004661R0101 |
| Function | Power supply for door-mounted panels and electronics |
| Input Voltage | 24 VDC / 48 VDC (system dependent) |
| Output Voltage | Regulated low-voltage DC (e.g., 5V, 12V, 24V DC depending on config) |
| Output Power | Nominal 30–50 W (typical usage range) |
| Current Capacity | Up to 2.5 A (depends on output voltage and load) |
| Efficiency | ≥ 85% |
| Cooling Method | Passive (natural convection) |
| Isolation | Input/output isolation (optical or transformer based) |
| Protection Features | Overvoltage, overload, short-circuit protection |
| Signal Indicators | LED status indicators (if present) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH, non-condensing |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Dimensions | 200 x 150 x 50 mm |
| Weight | 1.2 kg |
| Mounting Type | Panel or rack mounting (screw-fitted or slotted) |
| RoHS Compliant | Yes |
| Certifications | CE, UL, CSA (region-specific variants) |
Industry Applications
The KUC711AE101 Door Unit Power Supply is commonly deployed in industrial environments that require stable and isolated power for front-end control and monitoring equipment:
Metals and Mining – Operator panel power in rolling mill drives
Power Generation – Panel supply in turbine and excitation systems
Oil & Gas – Drive door panel power in offshore and refining plants
Pulp & Paper – Interface panel support in paper machine automation
Marine and Offshore – Bridge interface power for drive control stations
Water and Wastewater – Panel power in pumping and treatment facilities
Product Advantages
-
Ensures stable and uninterrupted power for critical interface systems
-
Designed by ABB for seamless compatibility with drive cabinet configurations
-
High durability and long service life under harsh operating conditions
-
Integrated protections improve system uptime and equipment safety
-
Compact form factor allows easy retrofit and integration
Environmentally compliant and energy-efficient design
-
Helps reduce electromagnetic interference in sensitive control systems
Frequently Asked Questions (FAQ)
1. What is the role of the KUC711AE101 in ABB systems?
It provides regulated low-voltage DC power for door-mounted interface devices, HMIs, and controllers in ABB drive cabinets.
2. Can this unit be used in non-ABB systems?
While designed for ABB systems, it can technically be used elsewhere if electrical compatibility is verified.
3. Is it field-replaceable?
Yes, the module can be replaced on-site following standard ESD and safety procedures.
4. Does it provide galvanic isolation?
Yes, the unit includes input-output isolation to prevent ground loops and signal interference.
5. What protections are built in?
It features short-circuit, overvoltage, and thermal protection.
6. How is it cooled?
The power supply is passively cooled through natural convection—no fan required.
7. Is there a status indicator?
Some variants may include LED indicators for output status or fault conditions.
8. What is the expected lifespan?
Designed for 10+ years of continuous operation under standard industrial conditions.
9. Is this module RoHS compliant?
Yes, it complies with RoHS and other international environmental directives.
10. Can it power external sensors or actuators?
It is designed for panel devices, not for direct heavy-load control. Use it within its rated output range.
